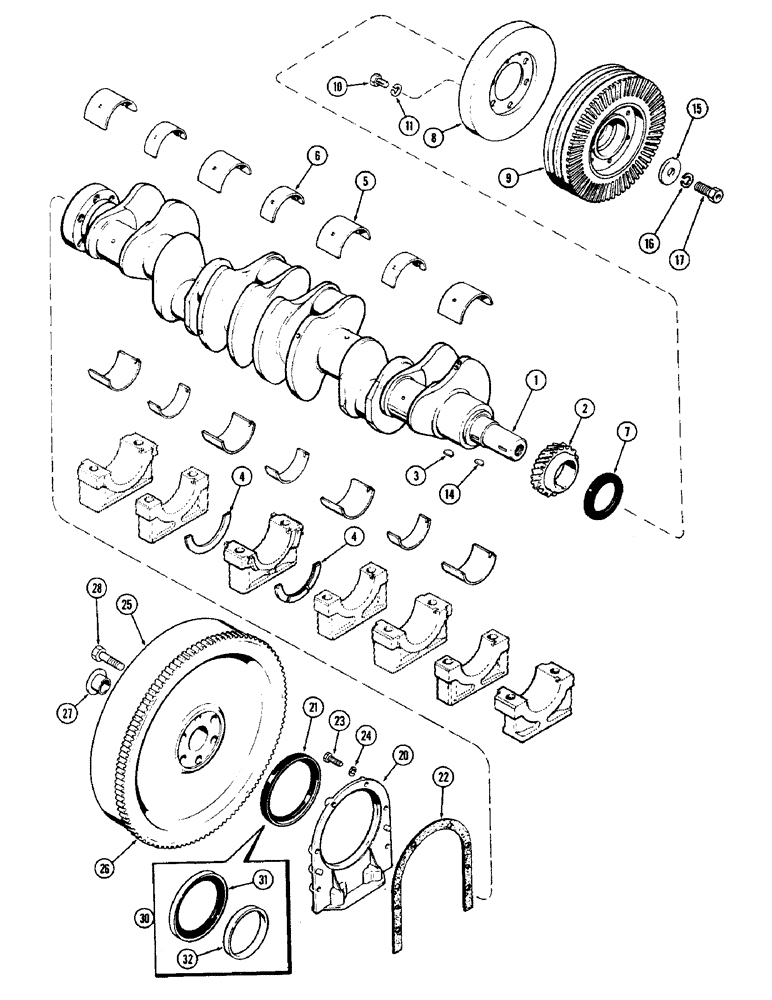

Запчасти Case IH 2470 (034) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (02) - ENGINE

1

A66728

CRANKSHAFT

- engine (Replaces A65097), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft, front (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, crankshaft (Standard) (0.156")

2шт.

4

A42447

WASHER

- thrust, crankshaft (Oversize) (0.162U)

2шт.

5

A43090

BEARING LINER

LINER KIT - standard (Wide)

1шт.

5

A43124

LINING

LINER KIT - wide (-0.002")

4шт.

5

A43125

CRANKSHAFT BEARING

LINER KIT - wide (-0.010")

4шт.

5

A43126

LINING

LINER KIT - wide (-0.020")

4шт.

5

A43127

LINING

LINER KIT - wide (-0.030")

4шт.

6

A43089

BEARING LINER

LINER KIT - standard (Narrow)

3шт.

6

A43120

LINING

LINER KIT - narrow (-0.002")

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER KIT - narrow (-0.010")

3шт.

6

A43122

LINING

LINER KIT - narrow (-0.020")

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER KIT - narrow (-0.030")

3шт.

7

A62049

OIL SEAL

- crankshaft, front (2-5/8 x 3-5/8 x 15/32")

1шт.

8

A58900

DAMPER

- crankshaft (Viscous)

1шт.

9

A58828

PULLEY

- crankshaft (Fan drive)

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

14

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

15

A27903

WASHER

- pulley (21/32 x 2-1/8 x 1/4")

1шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- drive pulley (5/8 x 1-1/2" N.F., special)

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- crankshaft rear (4-3/8 x 5-3/4 x 1/2") (See ref. 30)

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A75299

FLYWHEEL ASSEMBLY, Includes: Ref. 26 and 27

1шт.

26

A27920

GEAR

- ring (137 teeth)

1шт.

27

A63928

BUSHING

- P.T.O., Serial Range: shaft-flywheel

1шт.

28

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- (5/8 x 1-3/4 N.F. hex.)

6шт.

30

A43194

KIT

- crankshaft wear seal, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft, rear

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - crankshaft wear

1шт.
