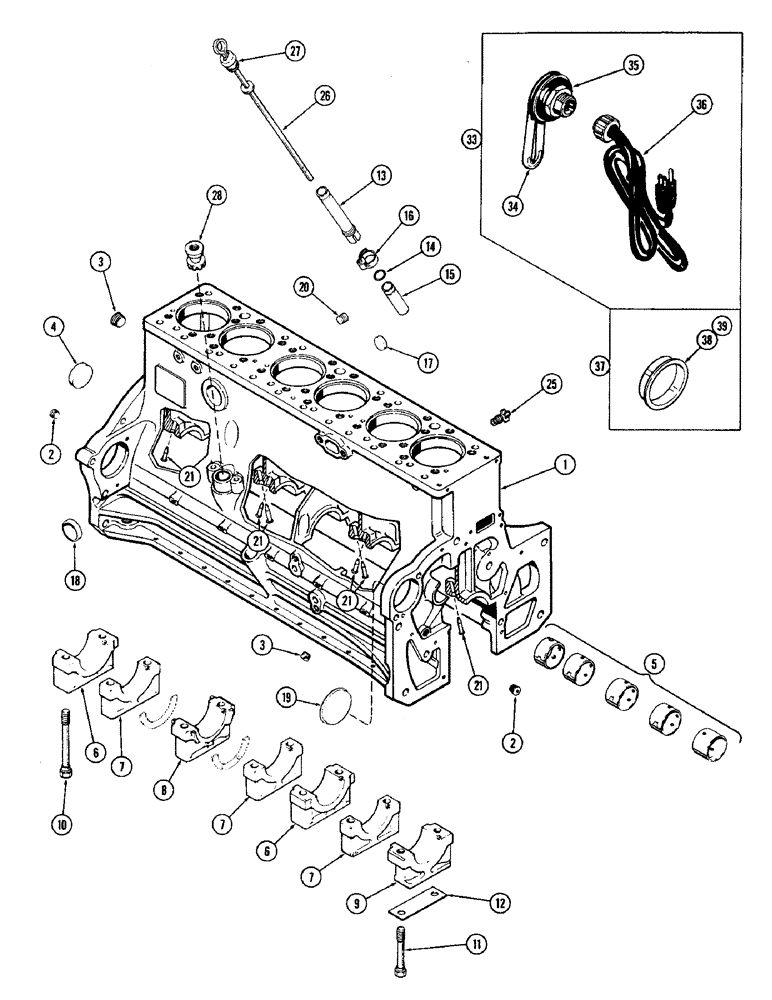

Запчасти Case IH 2470 (032) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE

A43150

BLOCK

ASSY. - short (Includes stripped block, pistons, conn. rods & brgs., crankshaft & brgs., camshaft & bushings, timing gears & push rod lifters) (Casting #A58516), Includes: Ref. 1 - 21

1шт.

1

A43149

BLOCK

ASSY. - stripped (Casting #A58516), Includes: Ref. 2 - 21

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- oil gallery (3/8" P.T. hex. socket head)

4шт.

3

221-41

PLUG

- oil gallery (1/8" P.T. slotted headless)

6шт.

4

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

5

A23544

BUSHING

SET - camshaft (See figure 30)

1шт.

6

A58562

CAP

- main bearing, wide

2шт.

7

A58563

CAP

- main bearing, narrow

3шт.

8

A58564

CAP

- main bearing, thrust

1шт.

9

A63902

CAP

- main bearing, front

1шт.

10

A58566

STEP BOLT

BOLT - (5/8 x 4-1/2" N.C.) (Special)

12шт.

11

A58567

STEP BOLT

BOLT - (5/8 x 6-13/16" N.C.) (Special) (Bearing cap to oil pump)

2шт.

12

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

13

A65778

TUBE

- oil filler extension (Replaced A57940)

1шт.

14

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - oil filler tube (1-1/8 x 1-3/8 x 1/8")

1шт.

15

A34540

TUBE

- oil filler

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

- (1-3/8" cup type)

3шт.

18

A58569

PLUG,Cup, 2", Stainless

- (2" cup type) block heater hole

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

- (3-1/4" cup type)

1шт.

20

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, (3/4" hex. socket hd.) turbo drain hole

1шт.

21

A63903

NOZZLE CAP

NOZZLE - piston oil cooling

6шт.

25

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

26

A75307

DIPSTICK

ASSY. - oil level, Includes: Ref. 27

1шт.

27

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - (3/4 x 1 x 1/8")

2шт.

28

A34266

DRIVE

ASSY. - tachometer

1шт.

33

A44812

HEATER

ASSY. - block (Replaces A42279), Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

ELEMENT ASSY. - heater (Order A44812), block

1шт.

35

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - (1-3/4 x 2 x 1/8"), block heater

1шт.

36

A44813

CABLE EXTENSION

CORD ASSY. - heater (w/plugs), block

1шт.

37

A44006

SLEEVE

KIT - cylinder block heater, Includes: Ref. 38 and 39

1шт.

38

NSS

NOT SOLD SEPARAT

SLEEVE - (For 2-1/16" dia. hole), block heater

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - (For 2-1/8" dia. hole), block heater

1шт.
