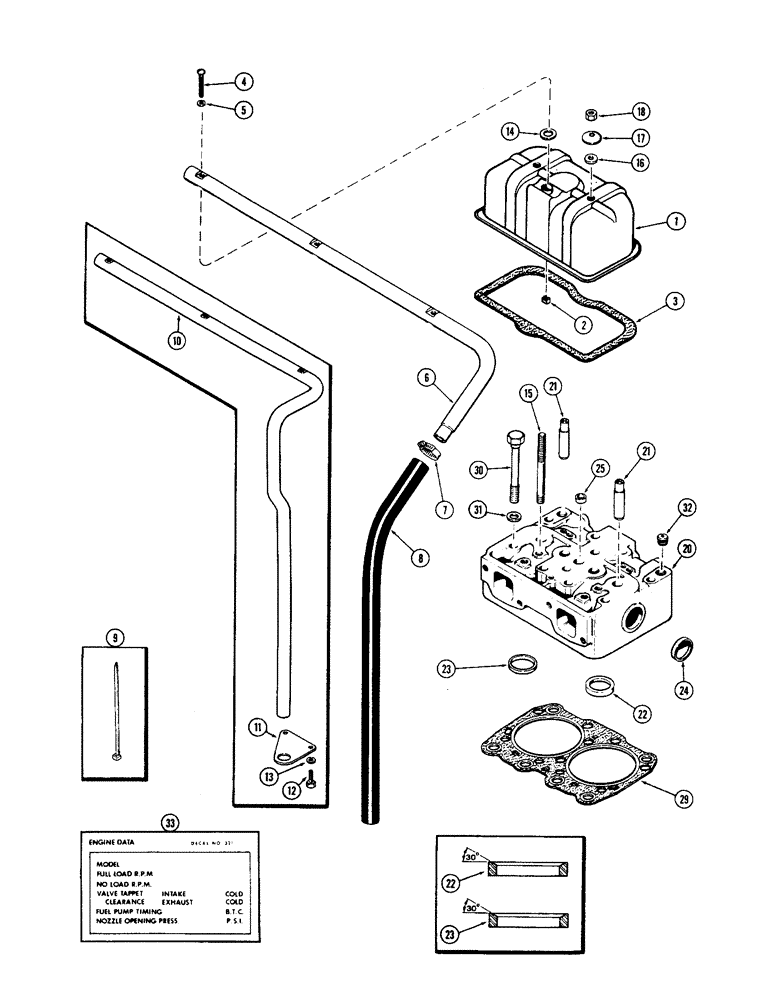

Запчасти Case IH 2470 (028) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE, USED ENGINE SERIAL NUMBER 2529905 AND AFTER (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - (1/4" N.C. Tinnerman)

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover (Replaces A58928)

3шт.

4

75-440

SCREW

SCREW - (1/4 x 2-1/2" N.C. round head machine)

3шт.

5

A34133

GASKET

GASKET - tube, upper (Fiber)

3шт.

6

A66640

TUBE

TUBE - breather (Used tractor serial no. 8733374 and after)

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

1шт.

8

A66132

HOSE

HOSE - breather

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP STRAP - breather hose

1шт.

10

A59053

TUBE

TUBE - breather (Used prior to tractor serial no. 8733374)

1шт.

11

A59054

BRACKET

BRACKET - breather tube

1шт.

12

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - (3/8 x 1-1/2" N.C. Sems)

2шт.

13

195-25

WASHER,3/8"

WASHER - (13/32 x 13/16 x 1/16") (Used as a spacer)

1шт.

14

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

3шт.

15

A67121

STUD

STUD - rocker arm bracket and cylinder head cover

6шт.

16

A23684

GASKET

GASKET - cover stud (Rubber)

6шт.

17

A23683

WASHER

WASHER - cover stud (Dished)

6шт.

18

25-107

NUT,7/16"-14, G5

NUT - (7/16" N.C. hex.)

6шт.

20

A66190

HEAD ASSY.

HEAD ASSEMBLY - cylinder (Casting no. A60559), Includes: Ref. 21 - 25

3шт.

20

AR66194

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

20

AC66194

CORE-CYLINDER HEAD

Return Number

3шт.

21

A41783

GUIDE

GUIDES - intake and exhaust valves

4шт.

22

A66192

INSERT

INSERT - exhaust valve

2шт.

23

A66191

INSERT

INSERT - intake valve

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (41.3 mm) cup type

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 mm) cup type

3шт.

29

REF

INSTRUCTION

GASKET - cylinder head, with fire ring (See figure 40)

3шт.

30

A62732

STEP BOLT

BOLT - (5/8 x 5-5/8" N.C. hex.)

30шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - (21/32 x 1 x 1/8")

30шт.

32

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - pipe (3/8" P.T. hex. socket head)

6шт.

33

321-2137

DECAL

DECAL - engine data

1шт.
