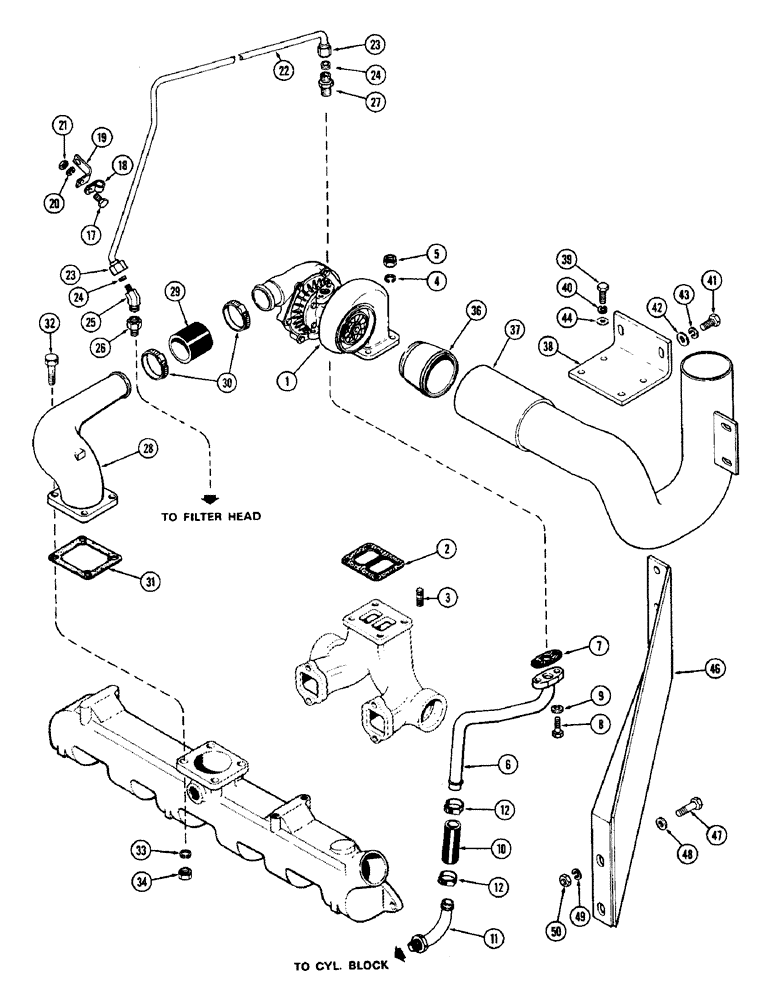

Запчасти Case IH 2470 (024) - TURBO-CHARGER, 504BDT DIESEL ENGINE (02) - ENGINE

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

A48192

REMAN-TURBOCHARGER

2470 BSN 8762940

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44499

TURBOCHARGER

TURBO-CHARGER - remanufactured (See figure 25A) (Replaces A41956)

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A44498

CORE-TURBOCHARGER

Return Part Number,Turbo-Charger - (Do not use this part no. for ordering. This part no. is to be used only in requesting return authority on used Garrett turbo-charger) (Replaces A42052)

1шт.

2

A58899

GASKET,0.45mm Thk

GASKET -, Serial Range: turbo-charger-manifold

1шт.

3

G11204

STUD

STUD - (3/8" N.C. x 1-1/2") (Replaced A29356)

4шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex., Seez-Pruf)

4шт.

6

A62518

TUBE

TUBE - oil drain, turbo-charger

1шт.

7

A58892

GASKET,1.59mm Thk

GASKET - oil drain tube

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

10

A58893

HOSE

HOSE - drain to fitting (7/8" I.D. x 1-1/4" O.D. x 3-1/2")

1шт.

11

A58897

FITTING

FITTING - drain, turbo-charger (To block)

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, drain (1-3/16" to 1-3/4")

2шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Clip to bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

18

49845

CLAMP

CLIP - turbo oil supply tube

1шт.

19

A75301

BRACKET

BRACKET - turbo oil supply tube clip (Held by exhaust manifold bolt)

1шт.

20

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

NUT - (3/8" N.C. hex.)

1шт.

22

A75303

TUBE

SPARE PART TUBE ASSY. - oil supply, turbo-charger, Includes: Ref. 23 and 24

1шт.

23

222-114

NUT,5/8"-24

NUT - (For 3/8" tube)

2шт.

24

222-154

SLEEVE,3/8" Tube

SLEEVE - (For ) 3/8" Tube

2шт.

25

218-1095

ELBOW,45 Degree, 9/16-18" 37 Degree x 3/8"-18, NPTF

ELBOW - 45 degrees (3/8" P.T. for 3/8" tube) (In filter head)

1шт.

26

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

REDUCER - pipe bushing (3/8 to 1/4" hex.)

1шт.

27

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - (1/4" P.T. for 3/8" tube) (In turbo-charger)

1шт.

28

A58903

ELBOW UNION

Union Elbow ELBOW - air intake, turbo-charger

1шт.

29

A58894

HOSE

HOSE - air intake elbow (2" I.D. x 2-3/8")

1шт.

30

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

31

A58910

GASKET

GASKET - air intake elbow

1шт.

32

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 3/4", G5

4шт.

33

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

NUT - (3/8" N.C. hex.)

4шт.

36

A65554

TUBE

CONNECTOR - turbo-charger to exhaust pipe (Replaced A58896)

1шт.

37

A76049

PIPE

PIPE - exhaust

1шт.

38

A76039

BRACKET

BRACKET - exhaust pipe

1шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

41

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

42

195-106

WASHER,1/2"

WASHER - plain (9/16 x 1-3/8 x 1/8")

2шт.

43

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

44

195-528

WASHER,3/8"

WASHER - (7/16 x 1-3/8 x 3/32")

4шт.

46

A76190

SPARE PART BRACE - exhaust pipe

1шт.

47

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 1 3/4", G5

2шт.

48

195-106

WASHER,1/2"

WASHER - plain (9/16 x 1-3/8 x 1/8")

2шт.

49

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

50

129-105

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
