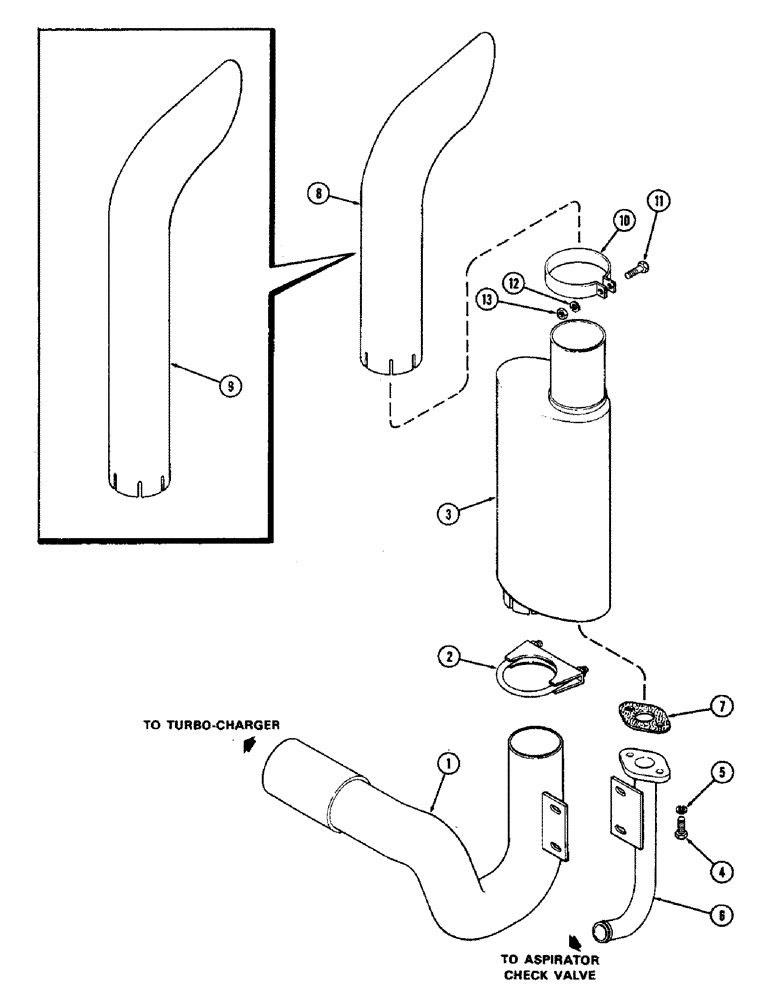

Запчасти Case IH 2470 (023C) - MUFFLER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A76049

PIPE

- exhaust

1шт.

2

A56092

CLAMP

ASSY. -, Serial Range: muffler-pipe

1шт.

3

A76022

MUFFLER

- exhaust

1шт.

4

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

A76054

TUBE

- aspirator

1шт.

7

A76059

GASKET

- aspirator tube

1шт.

8

A76060

MUFFLER

STACK - exhaust (27")

1шт.

9

A76362

PIPE, EXHAUST SYSTEM

STACK - exhaust (35")

1шт.

10

A76061

CLAMP

- exhaust stack

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
