Запчасти Case IH 2470 (326) - CAB, AIR CONDITIONER, COMPRESSOR CLUTCH (09) - CHASSIS/ATTACHMENTS

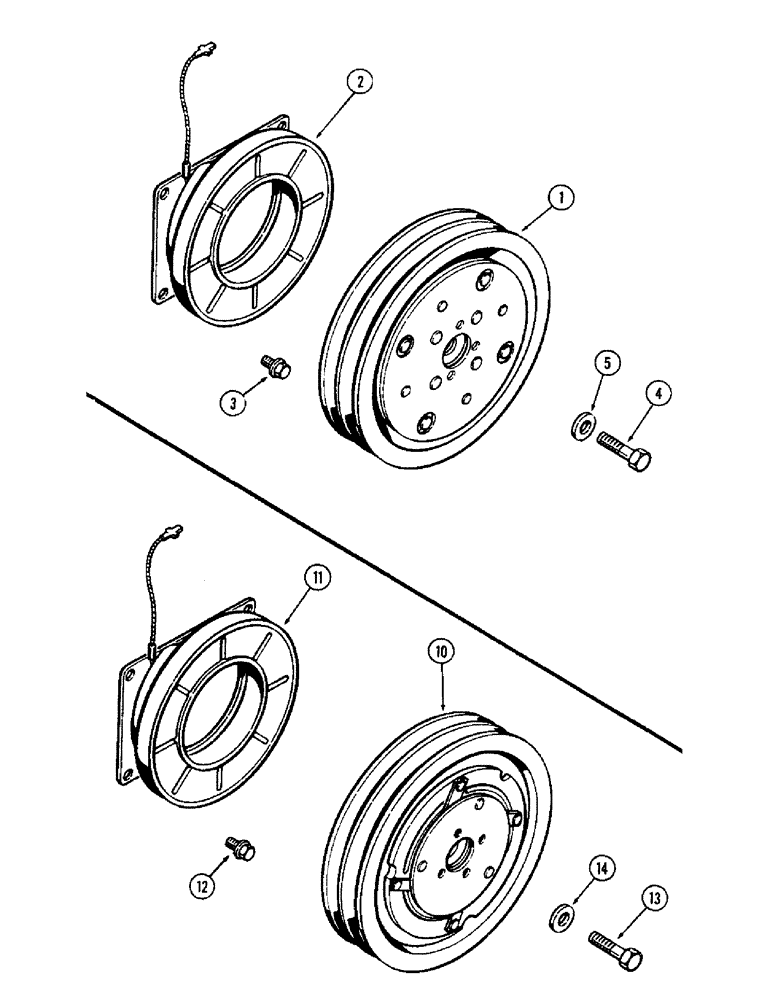

Схема запчастей Case IH 2470 - (326) - CAB, AIR CONDITIONER, COMPRESSOR CLUTCH (09) - CHASSIS/ATTACHMENTS
4
11
1
10
2
3
12
13
5
14

Артикул

Название

Примечание

Количество

A64956

CLUTCH

ASSY. - (Warner Elec. #I-1405-17) (Order A66057), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor

1шт.

2

A42941

COIL

FIELD ASSY. - pulley

1шт.

3

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

4

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex.

1шт.

5

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.

A66057

CLUTCH

ASSY. - (Warner Elec. #I-1436-14), Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor

1шт.

11

A44568

ELECTRIC CLUTCH

FIELD ASSY. - pulley

1шт.

12

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

13

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex.

1шт.

14

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.

Выбрано товаров: 12
