Запчасти Case IH 2470 (322) - CAB, AIR CONDITIONER, RECEIVER DRIER, CONDENSER AND TUBES USED PRIOR TO TRACTOR SERIAL NO. 8711832 (09) - CHASSIS/ATTACHMENTS

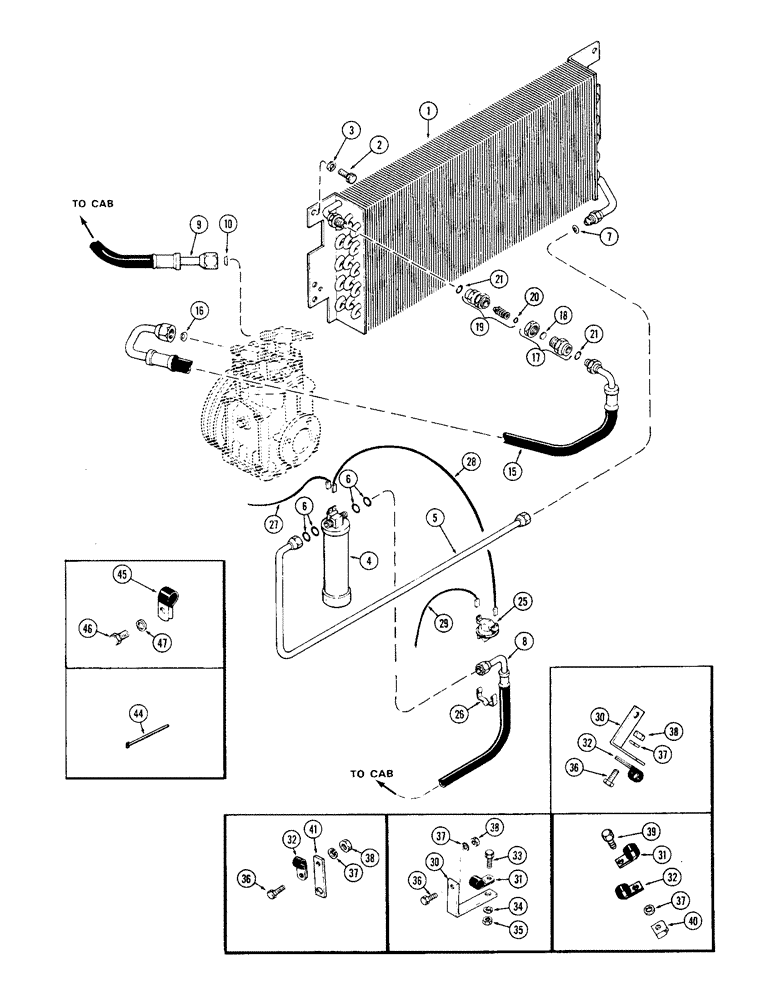

Схема запчастей Case IH 2470 - (322) - CAB, AIR CONDITIONER, RECEIVER DRIER, CONDENSER AND TUBES USED PRIOR TO TRACTOR SERIAL NO. 8711832 (09) - CHASSIS/ATTACHMENTS
20
21
37
36
28
3
31
31
30
34
1
41
16
44
10
29
9
21
32
38
36
32
5
18
6
46
37
7
15
47
25
17
37
27
33
2
35
40
32
38
26
30
45
4
8
38
19
37
39
36
6

Артикул

Название

Примечание

Количество

1

A76084

COIL

- condenser

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

A76085

CARTRIDGE

RECEIVER - drier

1шт.

5

A75581

TUBE -, Serial Range: condenser-drier

1шт.

6

A61198

O-RING,0.07" Thk x 0.301" ID, -11

"O" RING - 5/16 x 7/16 x 1/16"

4шт.

7

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

8

A76087

TUBE ASSY.

HOSE - receiver dryer to cab (Order ref. 8 & 25 figure 320)

1шт.

9

A76088

TUBE ASSY.

HOSE - cab to compressor (1/2" I.D.) (See ref. 9 figure 320)

1шт.

10

222-995

SEALING WASHER,15.88mm ID

- 45 degree copper, 5/8" tube

1шт.

15

A76086

HOSE

-, Serial Range: compressor-condenser

1шт.

16

222-994

GASKET,1/2 Tube, Fl, Copper

- 45 degree copper, 1/2" tube

1шт.

17

A61196

COUPLING, BREAK AWAY

COUPLING - hose half, Includes: Ref. 18

1шт.

18

A42667

GASKET

-, Serial Range: coupling-coupling

1шт.

19

A42663

COUPLING,1/2" - 20 NPT

COUPLING - condenser half, Includes: Ref. 20

1шт.

20

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

"O" RING - coupling piston

1шт.

21

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - 23/64 x 1/2 x 1/16"

2шт.

25

A61291

THERMOSTAT

- high temp. control

1шт.

26

A61789

CLAMP

- thermostat (See ref. 25 figure 320)

1шт.

27

A61755

ELECTRICAL WIRE

WIRE - clutch to pressure switch

1шт.

28

A76100

WIRE - thermostat to pressure switch

1шт.

29

F63525

ELECTRICAL WIRE

WIRE - temp., Serial Range: control-thermostat

1шт.

30

A75590

BRACKET - tube clamp

2шт.

31

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- tube, 1/2" I.D.

4шт.

32

49855

CLAMP

- tube, 3/4" I.D.

3шт.

33

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

36

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

38

9635082

NUT,5/16" - 18, Gr 5

5шт.

39

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

40

131-616

NUT,Ret, J, 5/16"-18

- 5/16" N.C. Tinnerman

1шт.

41

A76162

STRAP - hose mounting

1шт.

44

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose & clutch wire

1шт.

45

A7922

CLIP

- clutch, Serial Range: wire-compressor

1шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Clutch wire clip to compressor Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 38
