Запчасти Case IH 2470 (320) - CAB, AIR CONDITIONER, RECEIVER DRIER, CONDENSER AND TUBES, USED TRACTOR S/N. 8711832 THRU 8712307 (09) - CHASSIS/ATTACHMENTS

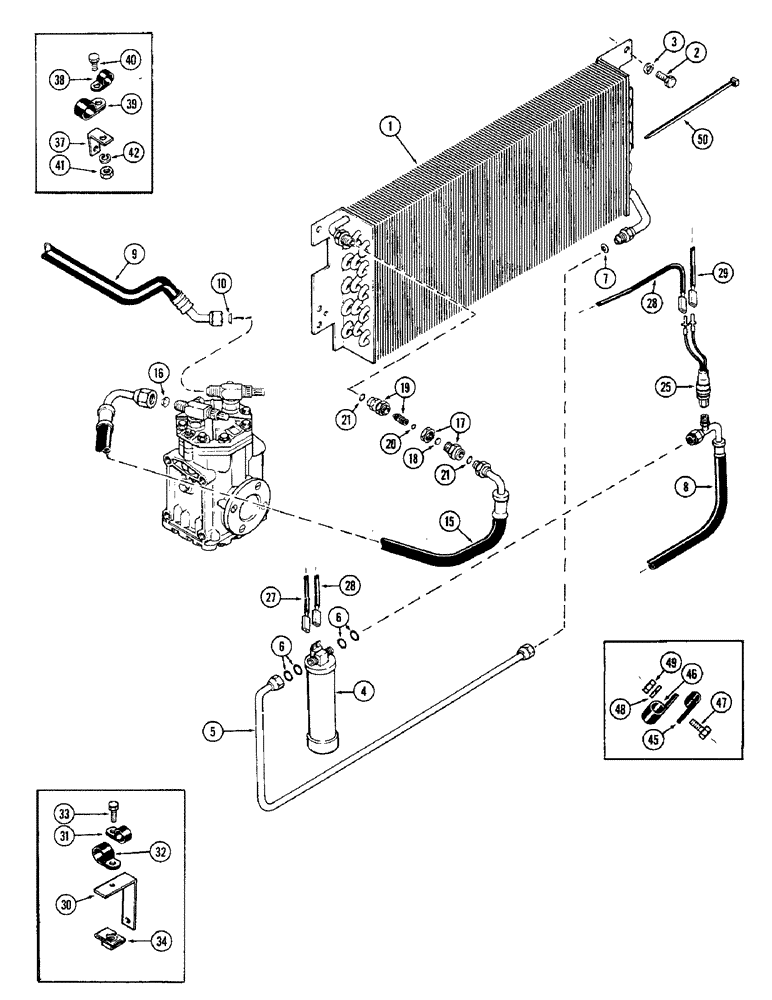

Схема запчастей Case IH 2470 - (320) - CAB, AIR CONDITIONER, RECEIVER DRIER, CONDENSER AND TUBES, USED TRACTOR S/N. 8711832 THRU 8712307 (09) - CHASSIS/ATTACHMENTS
39
18
28
47
15
20
21
2
21
32
16
29
1
48
7
30
8
41
6
34
17
50
10
31
37
28
40
9
4
45
46
25
27
33
42
49
38
19
6
3
5

Артикул

Название

Примечание

Количество

1

A76084

COIL

- condenser

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

A76085

CARTRIDGE

RECEIVER-DRIER

1шт.

5

A75581

TUBE - condenser to receiver drier

1шт.

6

A61198

O-RING,0.07" Thk x 0.301" ID, -11

"O" RING - 5/16 x 7/16 x 1/16"

4шт.

7

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

8

A76254

HOSE ASSY.

HOSE - receiver, Serial Range: drier-cab

1шт.

9

A76260

TUBE ASSY.

HOSE - cab to compressor (5/8" I.D.)

1шт.

10

222-995

SEALING WASHER,15.88mm ID

- 45 degree copper, 5/8" tube

1шт.

15

A76259

HOSE

-, Serial Range: compressor-condenser

1шт.

16

222-994

GASKET,1/2 Tube, Fl, Copper

- 45 degree copper, 1/2" tube

1шт.

17

A61196

COUPLING, BREAK AWAY

COUPLING - hose half, Includes: Ref. 18

1шт.

18

A42667

GASKET

-, Serial Range: coupling-coupling

1шт.

19

A42663

COUPLING,1/2" - 20 NPT

COUPLING - condenser half, Includes: Ref. 20

1шт.

20

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

"O" RING - coupling piston

1шт.

21

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - 23/64 x 1/2 x 1/16"

2шт.

25

A76253

SWITCH

- high pressure

1шт.

27

A61755

ELECTRICAL WIRE

WIRE - clutch to low pressure switch (36")

1шт.

28

A76100

WIRE - high to low pressure switch (10")

1шт.

29

F63525

ELECTRICAL WIRE

WIRE - control switch (215")

1шт.

30

A75590

BRACKET - front, hose clamp

1шт.

31

49855

CLAMP

- hose, 3/4" O.D.

1шт.

32

D39138

CLAMP

- hose, 1-1/8" O.D.

1шт.

33

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

34

131-616

NUT,Ret, J, 5/16"-18

- speed, 5/16" N.C. Tinnerman

1шт.

37

A76316

BRACKET - rear, hose clamp

1шт.

38

49855

CLAMP

- hose, 3/4" O.D.

1шт.

39

D39138

CLAMP

- hose, 1-1/8" O.D.

1шт.

40

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

1шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

45

49855

CLAMP

- hose, 3/4" (To radiator baffle)

1шт.

46

515-22254

CLAMP,1", Insul, 5/16" Bolt

- hose, 1" O.D. (To radiator baffle)

1шт.

47

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

49

131-616

NUT,Ret, J, 5/16"-18

- speed, 5/16" N.C. Tinnerman

1шт.

50

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, wire & hose

6шт.

Выбрано товаров: 38
