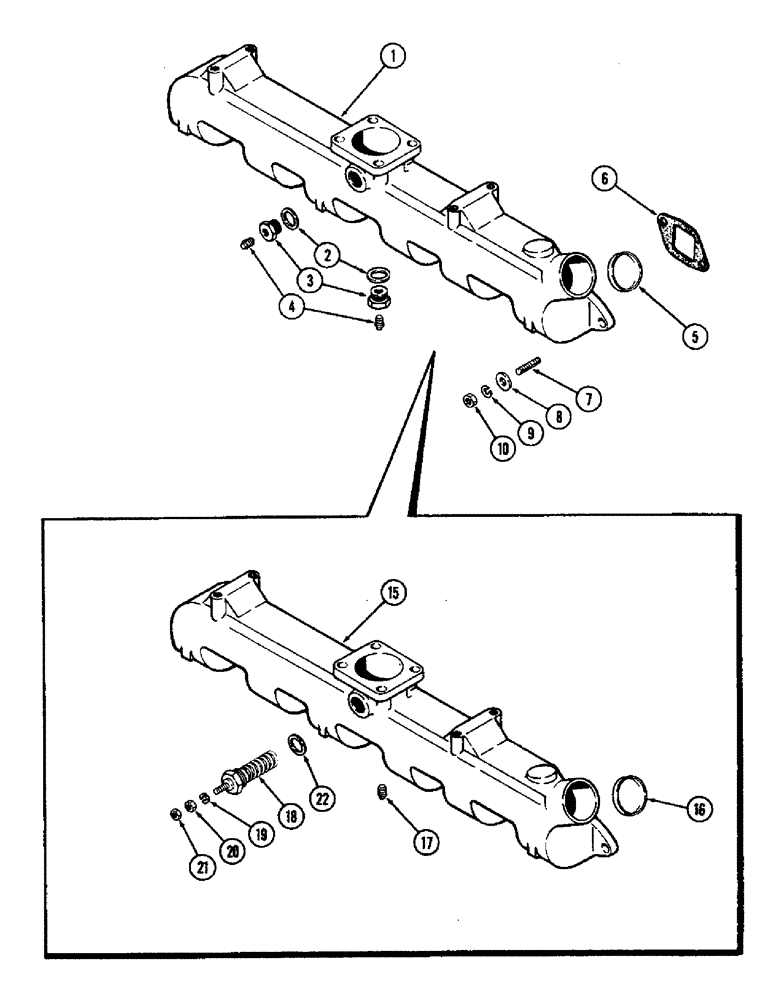

Запчасти Case IH 2470 (023A) - INTAKE MANIFOLD, 504BDT DIESEL ENGINE (02) - ENGINE

1

A66087

MANIFOLD

ASSY. - intake, first used engine s/n 2529467, Includes: Ref. 2 - 5

1шт.

2

A20916

MANIFOLD GASKET

GASKET - plug, first used engine s/n 2529467

2шт.

3

L10283

PLUG

- manifold, first used engine s/n 2529467

2шт.

4

221-41

PLUG

- pipe (1/8" slotted headless), first used engine s/n 2529467

2шт.

5

41-1042

PLUG,Cup, 2 5/8"

- cup (2-5/8"), first used engine s/n 2529467

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold, first used engine s/n 2529467

6шт.

7

A59077

STUD

- int. man. to cyl. hd. (3/8" N.C. x 1-13/16"), first used engine s/n 2529467

12шт.

8

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16"), first used engine s/n 2529467

12шт.

9

92-6

LOCK WASHER,3/8"

first used engine s/n 2529467 3/8"

12шт.

10

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), first used engine s/n 2529467

12шт.

15

A62845

MANIFOLD

ASSY. - intake, used prior to engine s/n 2529467, Includes: Ref. 16

1шт.

16

41-1042

PLUG,Cup, 2 5/8"

- (2-5/8" cup type), used prior to engine s/n 2529467

1шт.

17

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - intake manifold (1/8" P.T., sq. hd.), used prior to engine s/n 2529467

1шт.

18

A37775

HEATER

ASSY. - intake manifold (12 V.), used prior to engine s/n 2529467, Includes: Ref. 19 and 20

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used prior to engine S/N 2529467 1/4"

1шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used prior to engine S/N 2529467

1шт.

21

129-503

NUT,1/4"-20, Brass

(Cable to heater), Used prior to engine S/N 2529467 1/4"-20, Brass

1шт.

22

A20916

MANIFOLD GASKET

GASKET - intake manifold heater, used prior to engine s/n 2529467

1шт.
