Запчасти Case IH 2470 (316) - CAB, AIR CONDITIONER, COMPRESSOR AND RECEIVER DRYER MOUNTING (09) - CHASSIS/ATTACHMENTS

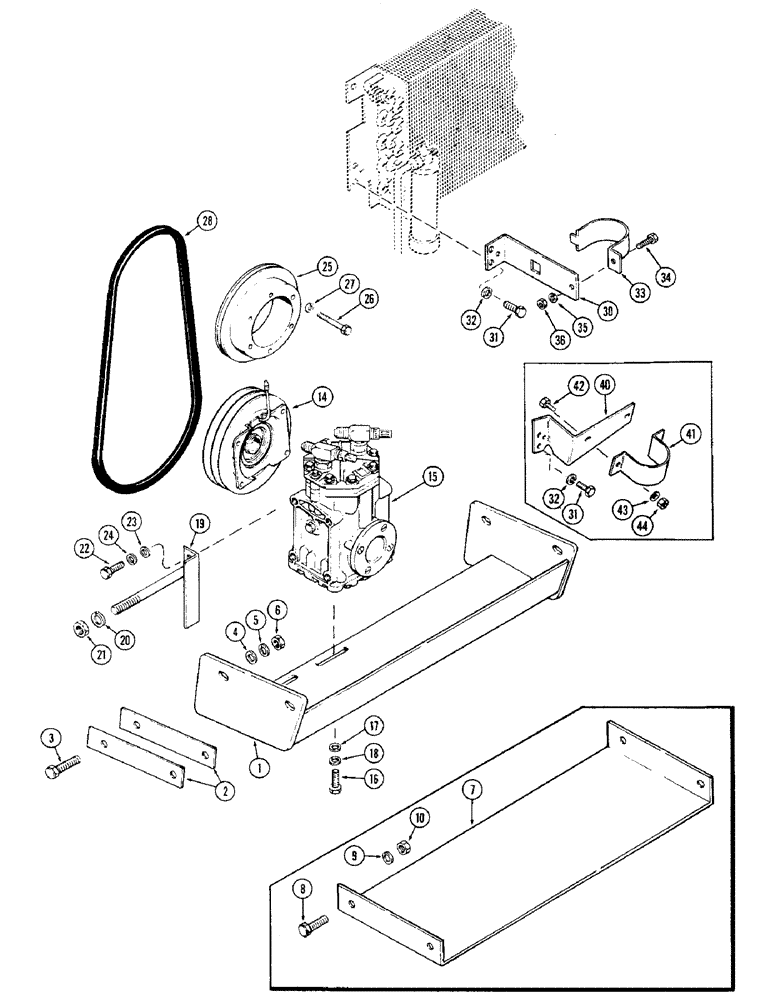

Схема запчастей Case IH 2470 - (316) - CAB, AIR CONDITIONER, COMPRESSOR AND RECEIVER DRYER MOUNTING (09) - CHASSIS/ATTACHMENTS
36
40
31
3
30
20
2
4
28
22
23
17
15
8
6
5
10
1
34
7
43
32
18
24
44
32
14
31
41
27
19
26
21
35
9
16
25
33
42

Артикул

Название

Примечание

Количество

1

A76156

BRACKET - compressor mounting

1шт.

2

A75572

SHIM - compressor (.031")

1шт.

2

A75573

SHIM - compressor (.010")

1шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

4

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8"

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

A75932

PLATE - front frame (Used w/o air cond. or w/o heater)

1шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

A66057

CLUTCH

ASSY. - (See figure 326)

1шт.

15

A64810

AIRCOND. COMPRESSOR

COMPRESSOR - air conditioner (See figure 324)

1шт.

15

417888C93

AIRCOND. COMPRESSOR

Assy., A/C

1шт.

15

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

15

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

17

195-104

WASHER,3/8"

- 7/16 x 1 x 1/16"

4шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

A76159

BRACKET - air cond. belt adjusting

1шт.

20

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8"

1шт.

21

131-70

NUT,1/2"-13, GB

NUT - 1/2" N.C. hex. Esna lock

1шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

23

195-104

WASHER,3/8"

- 7/16 x 1 x 1/16"

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

A76218

PULLEY - compressor drive

1шт.

26

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

6шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

28

A75577

V-BELT,0.50" W

Compressor Drive 0.50" W

1шт.

30

A75579

BRACKET - receiver drier (Used prior to trac. SN8712308)

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

33

A61193

CLAMP

- receiver drier (Used prior to trac. SN8712308)

1шт.

34

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

36

9635082

NUT,5/16" - 18, Gr 5

1шт.

40

A76311

BRACKET - receiver drier (1st used trac. SN8712308)

1шт.

41

A76313

CLAMP

- receiver drier (1st used trac. SN8712308)

1шт.

42

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

44

9635082

NUT,5/16" - 18, Gr 5

2шт.

Выбрано товаров: 41
