Запчасти Case IH 2470 (315A) - CAB, RADIO (09) - CHASSIS/ATTACHMENTS

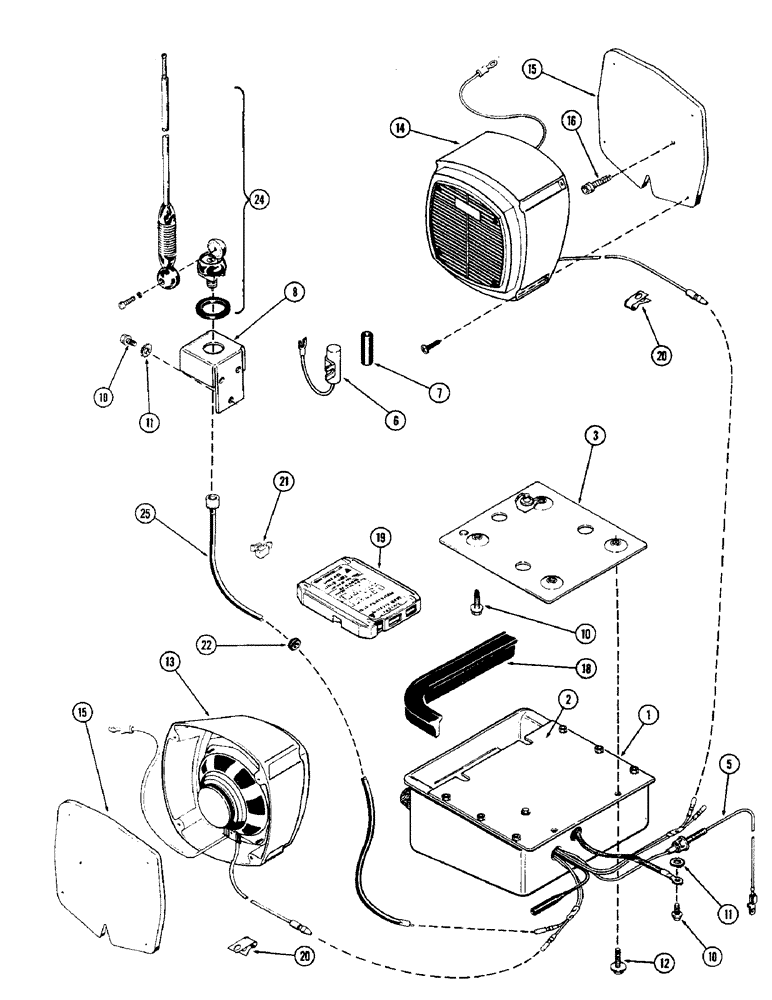

Схема запчастей Case IH 2470 - (315A) - CAB, RADIO (09) - CHASSIS/ATTACHMENTS
11
10
19
16
25
6
3
24
18
15
5
2
21
20
10
12
14
15
22
11
7
20
1
8
10
13

Артикул

Название

Примечание

Количество

A137760

RADIO

KIT - radio, AM & FM w/stereo tape deck (Mach. item) (For complete installation also order 1-A62457 antenna kit), Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

RADIO - AM w/tape deck

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - radio mounting, w/bolts

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - roof mounting adapter

1шт.

4

NSS

NOT SOLD SEPARAT

STRAP - ground

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - lead-in (Hot)

1шт.

6

NSS

NOT SOLD SEPARAT

CAPACITOR - alternator

1шт.

7

NSS

NOT SOLD SEPARAT

SUPPRESSOR - distributor (Gas only)

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET - antenna mounting

1шт.

NSS

NOT SOLD SEPARAT

PADS - shock, rubber

4шт.

10

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" N.C. hex.

6шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext.

4шт.

12

187-1082

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1"

SCREW - 1/4 x 1" N.C. hex. washer hd. self-tapping

2шт.

13

NSS

NOT SOLD SEPARAT

SPEAKER - stereo, R.H. (w/54" lead)

1шт.

14

NSS

NOT SOLD SEPARAT

SPEAKER - stereo, L.H. (w/95" lead)

1шт.

15

A137174

BOARD - speaker mounting

2шт.

16

187-1059

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

SCREW - 1/4 x 1-1/2" N.C. hex. washer hd. self-tapping

2шт.

NSS

NOT SOLD SEPARAT

PACKAGE - mounting, hardware for speaker (Set of 8 - #8 x 3/4" Phillips rd. hd. self-tapping screws)

1шт.

18

A137175

SUPPORT

MOULDING - radio front trim

1шт.

19

NSS

NOT SOLD SEPARAT

TAPE - head cleaning

1шт.

20

A20541

CLIP

- wire to headliner (6 used on each side)

12шт.

21

A62079

CLIP

- antenna lead

5шт.

22

D38275

SPRING

- antenna lead thru frame

1шт.

A62457

ANTENNA

KIT - antenna, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

ANTENNA

1шт.

25

NSS

NOT SOLD SEPARAT

CABLE - lead-in, 84" long

1шт.

A164223 AM, FM Cassette

1шт.
