Запчасти Case IH 2470 (314) - CAB, RADIO (09) - CHASSIS/ATTACHMENTS

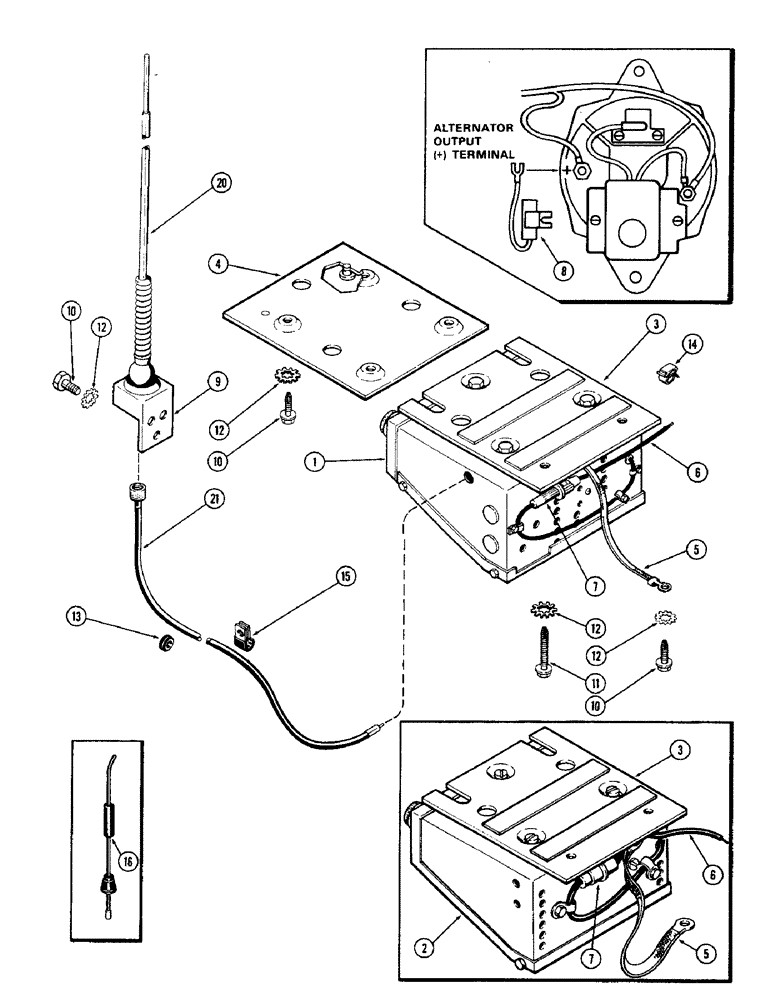

Схема запчастей Case IH 2470 - (314) - CAB, RADIO (09) - CHASSIS/ATTACHMENTS
20
4
6
10
12
3
2
5
6
14
7
9
12
1
5
12
10
3
8
13
11
16
7
10
15
21
12

Артикул

Название

Примечание

Количество

A62456

RADIO

KIT - radio, AM only (For complete installation also order 1-A62457 antenna kit), Includes: Ref. 1 - 16

1шт.

A135619

RADIO

KIT - radio, AM-FM (For complete installation also order 1-A62457 antenna kit), Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

RADIO - w/speaker (AM-FM)

1шт.

2

NSS

NOT SOLD SEPARAT

RADIO - w/speaker (AM only)

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - radio mounting, w/bolts

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - roof mounting adapter

1шт.

5

NSS

NOT SOLD SEPARAT

STRAP - ground (9-1/2" long)

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE - lead-in (Hot) (60 degrees) (Includes 5 amp fuse), Includes: Ref. 7

1шт.

7

223-36

FUSE,2 Amp, Type 3AG

- 5 amp. (1-1/4" long)

1шт.

8

NSS

NOT SOLD SEPARAT

CAPACITOR - alternator

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET - antenna mounting

1шт.

10

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" N.c. hex washer hd. self-tapping

6шт.

11

187-1082

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1"

SCREW - 1/4 x 1" hex. washer hd. self-tapping

2шт.

12

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext.

8шт.

13

A23870

GROMMET

- rubber (3/8" I.D.)

1шт.

14

A62079

CLIP

- radio wire

5шт.

15

A20541

CLIP

- antenna, Serial Range: wire-headliner

6шт.

16

NSS

NOT SOLD SEPARAT

SUPPRESSOR - distributor (Gas only)

1шт.

A62457

ANTENNA

KIT - antenna, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

ANTENNA

1шт.

21

NSS

NOT SOLD SEPARAT

CABLE - lead-in, 84" long

1шт.

Выбрано товаров: 21
