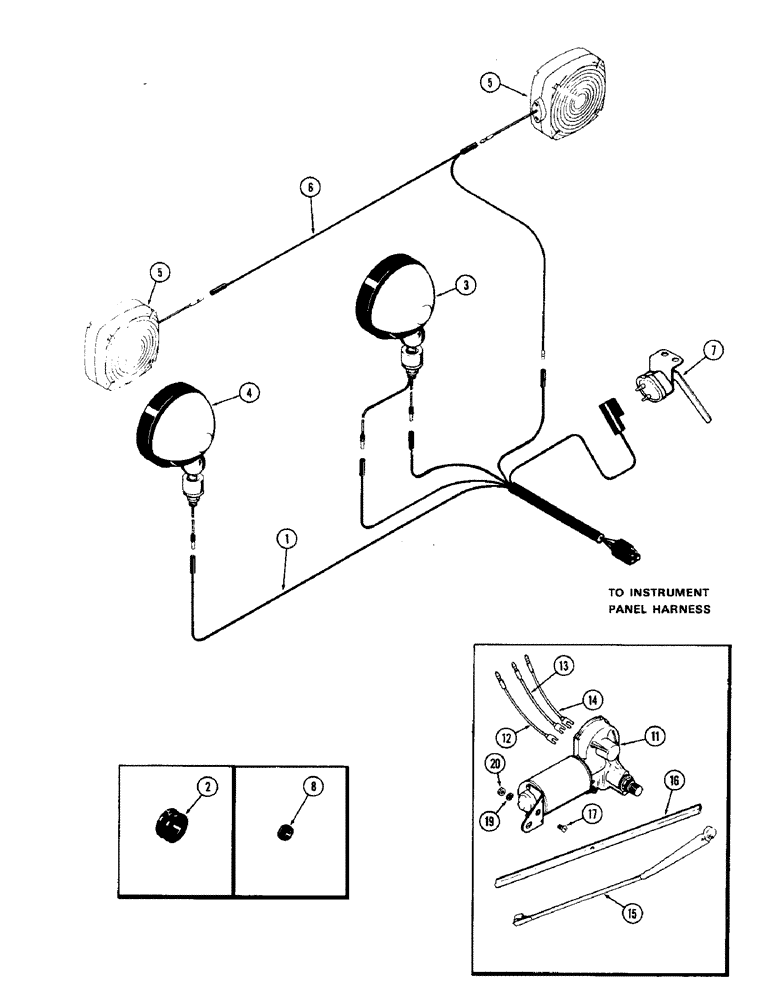

Запчасти Case IH 2470 (310) - CAB, REAR LIGHTS (09) - CHASSIS/ATTACHMENTS

1

F63502

HARNESS - rear lights

1шт.

2

A31076

GROMMET

- frame

2шт.

3

A59703

LAMP

- rear flood & tail (See figure 82)

1шт.

4

A63822

HEADLIGHT

LAMP - rear flood (See figure 82)

1шт.

5

REF

INSTRUCTION

LAMP - flasher (Order A44201) (See figure 76)

2шт.

6

F63368

ELECTRICAL WIRE

WIRE -, Serial Range: flasher-harness

1шт.

7

A33977

SWITCH

- parking brake light

1шт.

8

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- cab, front & rear light harness

4шт.

A42692

MOTOR

ASSY. - windshield wiper, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

12

A42693

ELECTRICAL WIRE

WIRE - motor, green, windshield wiper

1шт.

13

A42694

ELECTRICAL WIRE

WIRE - motor, blue, windshield wiper

1шт.

14

A42695

ELECTRICAL WIRE

WIRE - motor, orange, windshield wiper

1шт.

15

T41946

ARM

- windshield wiper

1шт.

16

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper

1шт.

17

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10 x 1/2" self-tapping, windshield wiper

1шт.

19

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Windshield wiper Ext-Int Tooth, #10

1шт.

20

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. hex., windshield wiper

1шт.
