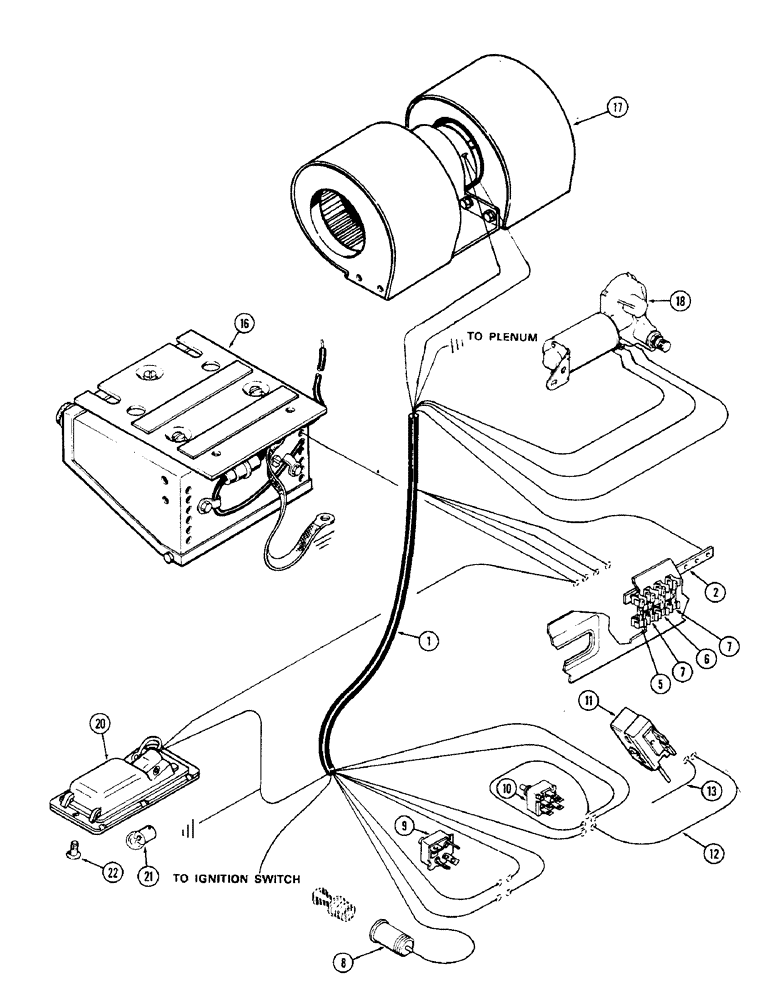

Запчасти Case IH 2470 (308) - CAB, CONTROLS AND WIRING, USED PRIOR TO CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

1

F63515

HARNESS - control panel wire

1шт.

2

F63512

BAR

- buss

1шт.

5

223-33

FUSE,1 Amp, Type 3AG

- buss, 1 amp.

1шт.

6

223-10

FUSE,10 Amp, Type 3AG

- buss, 10 amp.

1шт.

7

223-15

FUSE,15 Amp, Type 3AG

- buss, 15 amp.

2шт.

8

F63531

FILTER, ELEMENT

ELEMENT - cigar lighter (See figure 304)

1шт.

9

A42660

SWITCH

- wiper motor (See figure 304)

1шт.

10

A42622

SWITCH

- blower motor (See figure 304)

1шт.

11

A42623

CONTROL

- cab temperature (See figure 304)

1шт.

12

A42624

ELECTRICAL WIRE

WIRE - blower switch to temp. control

1шт.

13

F63661

ELECTRICAL WIRE

WIRE - temp. control to thermostat (230")

1шт.

16

A62456

RADIO

KIT - (See figure 314)

1шт.

17

NSS

NOT SOLD SEPARAT

BLOWER - cab air (See figure 312)

1шт.

18

A42692

MOTOR

- windshield wiper (See figure 310)

1шт.

20

A42658

INTERIOR LIGHT

LIGHT - dome, Includes: Ref. 21

1шт.

21

A41742

BULB

- dome light

1шт.

22

151-502

RIVET,Pop, 1/8" x 5/16"

- 1/8" pop

2шт.
