Запчасти Case IH 2470 (306) - CAB, CONTROLS AND WIRING, 1ST USED CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

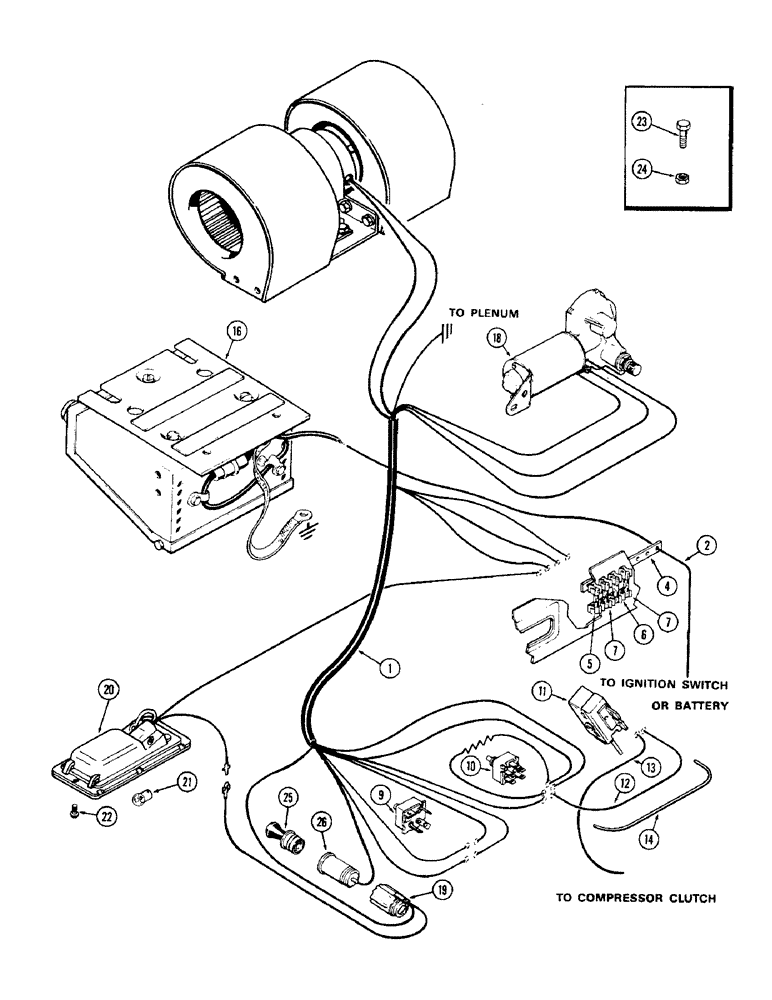

Схема запчастей Case IH 2470 - (306) - CAB, CONTROLS AND WIRING, 1ST USED CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS
18
25
21
9
24
11
4
5
19
20
22
16
13
14
23
26
2
6
7
7
12
1
10

Артикул

Название

Примечание

Количество

1

F63817

HARNESS

ASSY. - control panel wire

1шт.

2

F63816

ELECTRICAL WIRE

WIRE - harness to starter switch (154-1/2" red)

1шт.

4

F63512

BAR

- buss

1шт.

5

223-33

FUSE,1 Amp, Type 3AG

- buss, 1 amp. (Dome light)

1шт.

6

223-35

FUSE,8 Amp, Type 3AG

- buss, 8 amp. (Wiper)

1шт.

7

223-15

FUSE,15 Amp, Type 3AG

- buss, 15 amp. (Blower & cigar lighter)

2шт.

8

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter (See figure 302)

1шт.

9

A42660

SWITCH

- wiper motor (See figure 302)

1шт.

10

A42622

SWITCH

- blower motor (See figure 302)

1шт.

Outside wire, with peaks, is P/N A42652 (18" orange and purple stripe 457.2 mm).

1шт.

11

A42623

CONTROL

- cab temperature (See figure 302)

1шт.

12

A42624

ELECTRICAL WIRE

WIRE - blower switch to temp. control (6" black)

1шт.

13

F63661

ELECTRICAL WIRE

WIRE - temp. control to compressor clutch (230")

1шт.

14

F63719

TUBE

- shield, temp. control (8-1/2")

1шт.

16

A62456

RADIO

KIT - (See figure 314)

1шт.

17

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - (See figure 312)

1шт.

18

A42692

MOTOR

- windshield wiper (See figure 310)

1шт.

19

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter (See figure 302)

1шт.

20

A42658

INTERIOR LIGHT

LIGHT - dome, Includes: Ref. 21

1шт.

21

A41742

BULB

- dome light (#89)

1шт.

22

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8"

2шт.

23

163-18

SCREW,Hex, #10 - 24 x 3/8"

- machine (#10 x 3/8" hex.), control panel wire harness to wiper motor switch

1шт.

24

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

1шт.

25

F63531

FILTER, ELEMENT

ELEMENT - cigar lighter (See figure 302)

1шт.

26

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter (See figure 302)

1шт.

Выбрано товаров: 25
