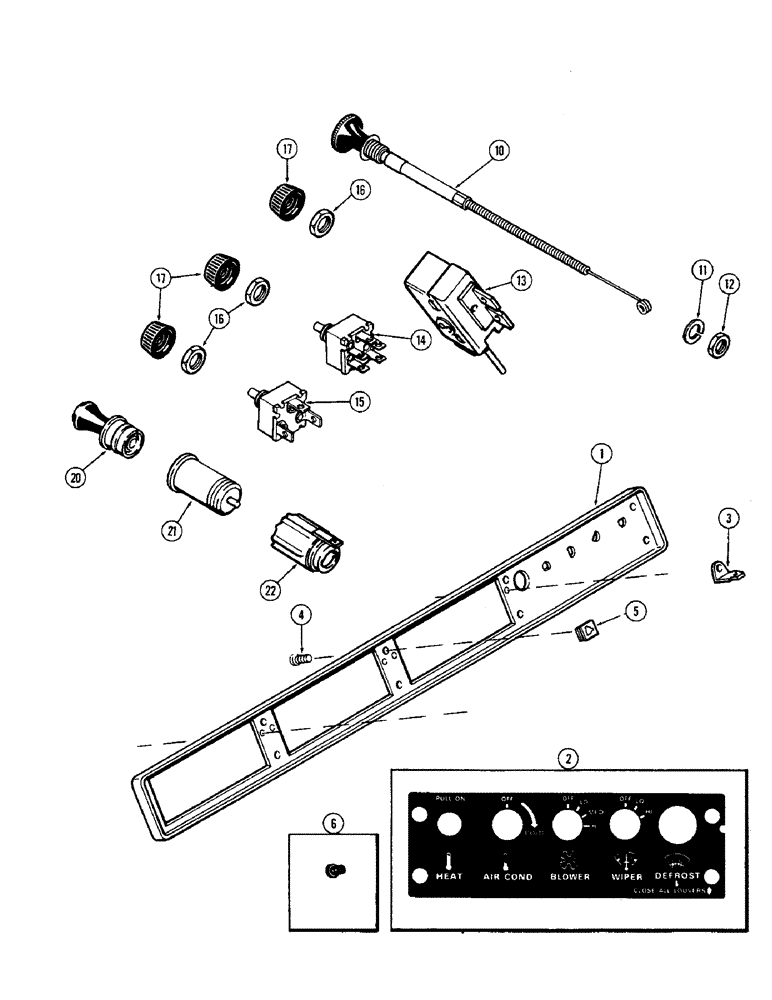

Запчасти Case IH 2470 (304) - CAB, CONTROLS AND PANEL, USED PRIOR TO CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

1

F89753

PANEL ASSY. - control (Includes louvers), Includes: Ref. 2 and 3

1шт.

2

321-2195

DECAL - panel

1шт.

3

F63529

TERMINAL - ground

1шт.

4

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" N.C. Phillips hd.

10шт.

5

131-861

SPRING NUT,Tinn, U, #10-24

10шт.

6

353-402

PLUG,Dome, .375" hole, Nylon

Switch holes (w/o heater or air conditioner) Dome, .375" hole, Nylon

1шт.

10

A42614

CABLE

- heater control, Includes: Ref. 11 and 12

1шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

12

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex., jam

1шт.

13

A42623

CONTROL

- cab temperature

1шт.

14

A42622

SWITCH

- blower

1шт.

15

A42660

SWITCH

- wiper motor

1шт.

16

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- 7/16" N.F. hex., jam

3шт.

17

A42578

KNOB

- switch

3шт.

20

F63531

FILTER, ELEMENT

ELEMENT - plug in, cigar lighter

1шт.

21

F63530

SOCKET/RECEPTACLE

SOCKET ASSY. - cigar lighter

1шт.

22

G46381

SHELL - clamping, cigar lighter

1шт.
