Запчасти Case IH 2470 (302) - CAB, CONTROLS AND PANEL, 1ST USED CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

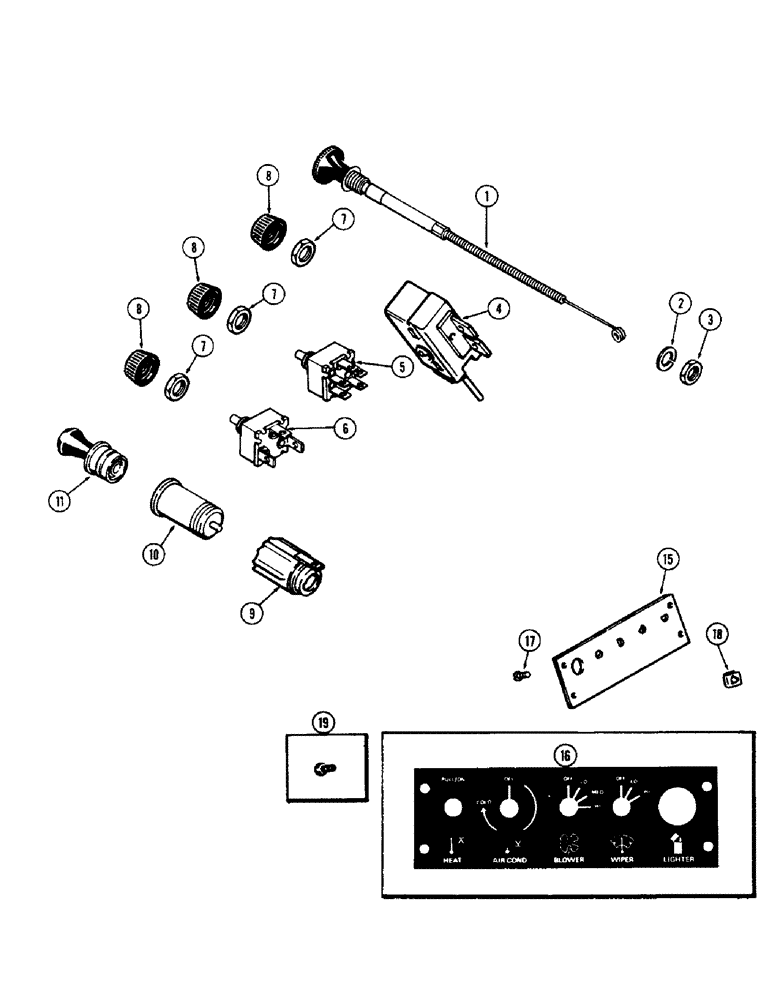

Схема запчастей Case IH 2470 - (302) - CAB, CONTROLS AND PANEL, 1ST USED CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS
8
8
8
7
9
15
17
11
18
7
2
10
3
1
7
4
6
19
16
5

Артикул

Название

Примечание

Количество

1

A42614

CABLE

- heater control, Includes: Ref. 2 and 3

1шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.C.

1шт.

4

A42623

CONTROL

- cab temperature

1шт.

5

A42622

SWITCH

- blower

1шт.

6

A42660

SWITCH

- wiper motor

1шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- jam, 7/16" N.F. hex.

3шт.

8

A42578

KNOB

- switch

3шт.

9

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

10

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

11

F63531

FILTER, ELEMENT

ELEMENT - plug-in, cigar lighter

1шт.

15

F89844

PANEL

ASSY. - control, Includes: Ref. 16

1шт.

16

321-2483

DECAL

- panel

1шт.

17

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" Phillips hd.

4шт.

18

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

19

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

Выбрано товаров: 17
