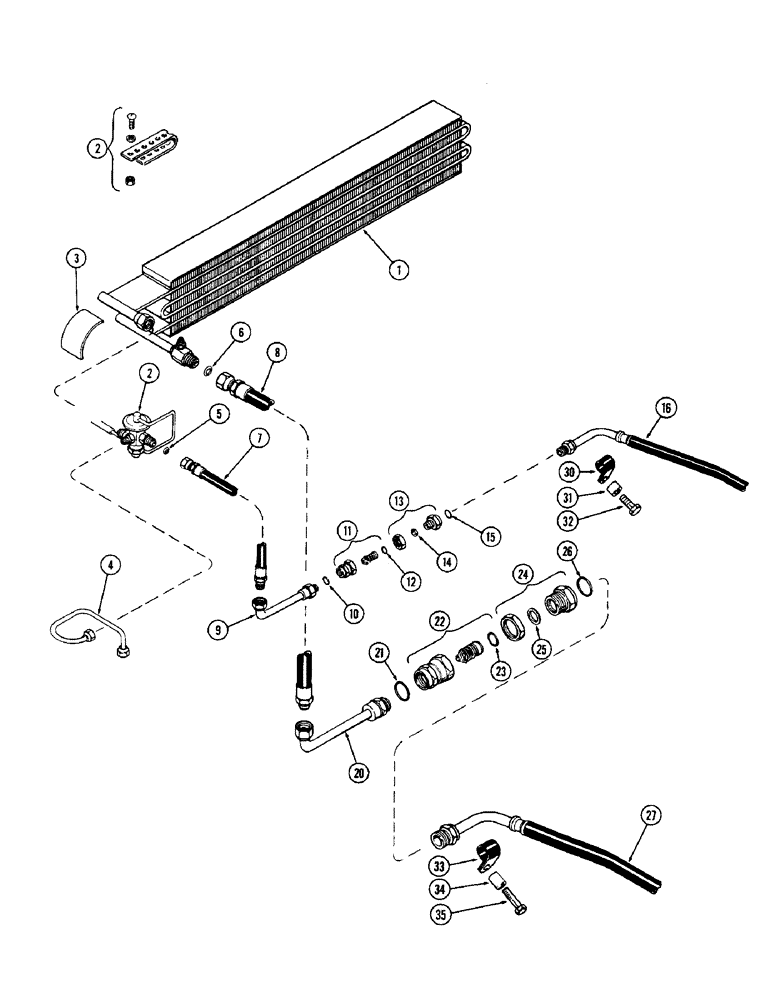

Запчасти Case IH 2470 (300) - CAB, PLENUM WITH AIR CONDITIONER, LOWER, USED PRIOR TO CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

1

F89638

CORE, RADIATOR

CORE - air conditioner evaporation

1шт.

2

A42625

LOCK VALVE

VALVE - expansion (Incl. clamp straps & hardware)

1шт.

3

NSS

NOT SOLD SEPARAT

INSULATION - valve (Order A42902)

1шт.

A42902

SEALING STRIP

INSULATION - valve (2-1/2" wide 30 ft. roll)

1шт.

4

F63523

TUBE

- equalizer

1шт.

5

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

6

222-995

SEALING WASHER,15.88mm ID

- 45 degrees, #10 copper

1шт.

7

F63377

HOSE,71.50"

- high side 71.50"

1шт.

8

F63378

HOSE,75.00"

- low side 75.00"

1шт.

9

F63668

TUBE,0.38" OD x 9.25" L

- hose to coupling

1шт.

10

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - 23/64 x 1/2 x 1/16"

1шт.

11

A42663

COUPLING,1/2" - 20 NPT

COUPLING - cab half, Includes: Ref. 12

1шт.

12

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

"O" RING - coupling piston

1шт.

13

A61196

COUPLING, BREAK AWAY

COUPLING - tractor half, Includes: Ref. 14

1шт.

14

A42667

GASKET

-, Serial Range: coupling-coupling

1шт.

15

A61195

O-RING,0.364" ID x 0.5" OD

"O" RING - 23/64 x 1/2 x 1/16"

1шт.

16

REF

INSTRUCTION

HOSE - receiver dryer to coupling (See figures 318-322)

1шт.

20

F63526

TUBE

-, Serial Range: hose-coupling

1шт.

21

A61197

O-RING,1.78mm Thk x 27mm ID

"O" RING - 1-3/4 x 1-3/16 x 1/16"

1шт.

22

A42664

COUPLING, BREAK AWAY

COUPLING - cab half, Includes: Ref. 23

1шт.

23

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - coupling piston

1шт.

24

A61194

COUPLING, BREAK AWAY

COUPLING - tractor half, Includes: Ref. 25

1шт.

25

A42668

GASKET

-, Serial Range: coupling-coupling

1шт.

26

A61197

O-RING,1.78mm Thk x 27mm ID

"O" RING - 1-3/64 x 1-3/16 x 1/16"

1шт.

27

REF

INSTRUCTION

HOSE - coupling to compressor (See figures 318-322)

1шт.

30

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube, 3/8" I.D.

1шт.

31

T34922

BUSHING

SPACER - 13/32 x 9/16 x 31/32"

1шт.

32

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

33

49855

CLAMP

- tube, 5/8" I.D.

1шт.

34

T39053

SPACER - 15/32 x 3/4 x 27/64"

1шт.

35

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.
