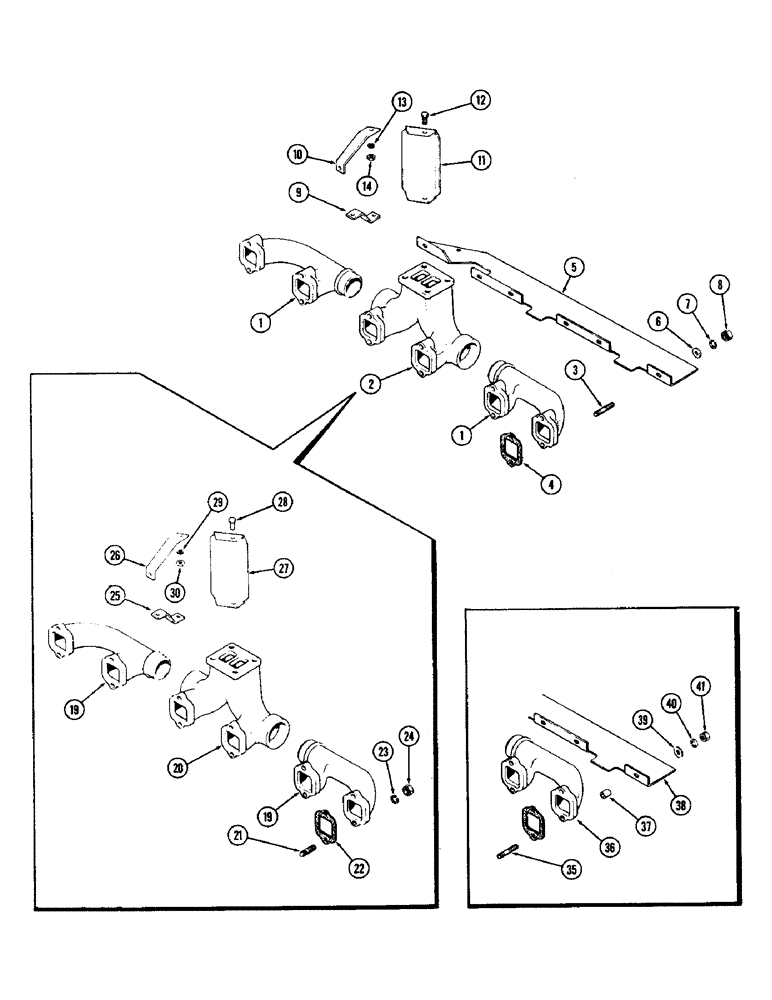

Запчасти Case IH 2470 (022) - EXHAUST MANIFOLD, 504BDT DIESEL ENGINE (02) - ENGINE

1

A65917

MANIFOLD

- exhaust, end, first used engine s/n 2529905

2шт.

2

A76322

MANIFOLD

- exhaust, center, first used engine s/n 2529905

1шт.

3

A35175

STUD

- exh. man. cyl. hd. (3/8" N.C. x 2-7/16"), first used engine s/n 2529905

12шт.

4

A58895

GASKET

- exhaust manifold, first used engine s/n 2529905

6шт.

5

A76351

GUARD

SHIELD - heat, exhaust manifold, first used engine s/n 2529905

1шт.

6

195-25

WASHER,3/8"

- (13/32" I.D. x 13/16" O.D.), first used engine s/n 2529905

6шт.

7

92-6

LOCK WASHER,3/8"

first used engine s/n 2529905 3/8"

12шт.

8

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex., Seez-Pruf), first used engine s/n 2529905

12шт.

9

A77069

SUPPORT

- lower, manifold shield (Replaces A76186), first used engine s/n 2529905

1шт.

10

A76187

SUPPORT

- upper, manifold shield, first used engine s/n 2529905

1шт.

11

A76188

GUARD

SHIELD - exhaust manifold, first used engine s/n 2529905

1шт.

12

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

First used engine S/N 2529905 Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , First used engine S/N 2529905 1/4"

2шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, First used engine S/N 2529905

2шт.

19

A58907

EXHAUST MANIFOLD

MANIFOLD - exhaust, ends, used prior to engine s/n 2529905

2шт.

20

A58906

TUBE

MANIFOLD - exhaust, center, used prior to engine s/n 2529905

1шт.

21

A59077

STUD

- exh. man. to cyl. hd. (3/8" N.C. x 1-13/16"), used prior to engine s/n 2529905

12шт.

22

A58895

GASKET

- exhaust manifold, used prior to engine s/n 2529905

6шт.

23

92-6

LOCK WASHER,3/8"

used prior to engine s/n 2529905 3/8"

12шт.

24

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex., Seez-Pruf), used prior to engine s/n 2529905

12шт.

25

A77069

SUPPORT

- lower, manifold shield (Replaces A76186), used prior to engine s/n 2529905

1шт.

26

A76187

SUPPORT

- upper, manifold shield, used prior to engine s/n 2529905

1шт.

27

A76188

GUARD

SHIELD - exhaust manifold, used prior to engine s/n 2529905

1шт.

28

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Used prior to engine S/N 2529905 Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Used prior to engine S/N 2529905 1/4"

2шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used prior to engine S/N 2529905

2шт.

35

A35175

STUD

- exh. man. cyl. hd. (3/8" N.C. x 2-7/16"), used prior to engine s/n 2529905

12шт.

36

A58907

EXHAUST MANIFOLD

MANIFOLD - exhaust, end, used prior to engine s/n 2529905

2шт.

37

A76352

SPACER - exh. man. heat shield (7/16 I.D. x 5/8 O.D. x 3/4"), used prior to engine s/n 2529905

12шт.

38

A76351

GUARD

SHIELD - heat, exhaust manifold, used prior to engine s/n 2529905

1шт.

39

195-25

WASHER,3/8"

- (13/32" I.D. x 13/16" O.D.), used prior to engine s/n 2529905

6шт.

40

92-6

LOCK WASHER,3/8"

used prior to engine s/n 2529905 3/8"

12шт.

41

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex., Seez-Pruf), used prior to engine s/n 2529905

12шт.
