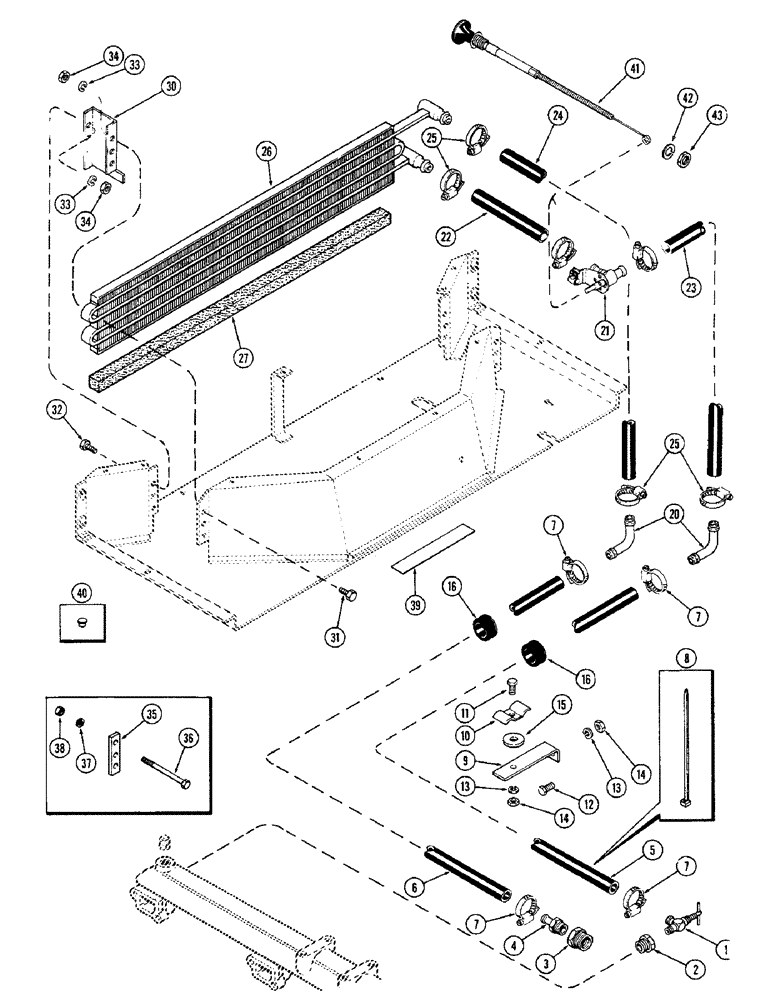

Запчасти Case IH 2470 (292) - CAB, PLENUM WITH HEATER, USED PRIOR TO CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

A76231

ATTACHMENT - heater (Mach. item), Includes: Ref. 1 - 34

1шт.

1

A16764

VALVE

- water manifold

1шт.

2

221-1059

BUSHING - reducing, 3/4 to 3/8" (Water manifold)

1шт.

3

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducing, 3/4 to 1/2" (Water pump)

1шт.

4

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose at water pump, 5/8" hose x 1/2" P.T.

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - manifold to heater (Red 52") (Order A42610)

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - heater to water pump (Black 75") (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" I.D. x 1" O.D. (50 ft. roll, Serial Range: cut-length)

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

4шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose

1шт.

9

A75899

BRACKET - hose clamp

1шт.

10

A27440

CLAMP

-, Serial Range: hose-bracket

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

A76093

BUSHING

SPACER - hose clamp

1шт.

16

L17604

GROMMET

- hose, side plate

2шт.

A60154

HEATER - attaching parts (Mach. item), Includes: Ref. 20 - 34

1шт.

20

A60823

ELBOW

- hose

2шт.

21

A42609

VALVE

- heater

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 6-11/16" long (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - heater (Red 69-1/2") (Order A42610)

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - heater (Black 75-1/2") (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" I.D. x 1" O.D. (50 ft. roll, Serial Range: cut-length)

1шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

6шт.

26

A42611

CORE

- heater

1шт.

27

A42912

FOAM -, Serial Range: core-plenum

1шт.

30

A42612

FILLER

- plenum, R.H. (Used w/o air cond.)

1шт.

30

A42613

FILLER

- plenum, L.H. (Used w/o air cond.)

1шт.

31

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

- 1/4 x 1-1/4" N.C. hex.

2шт.

32

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

34

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

35

F63382

CABINET

SPACER - core (Used w/heater & air conditioner)

2шт.

36

113-43

BOLT - 1/4 x 4-1/2" N.C. hex.

4шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

39

345-38

TAPE - drip pan holes, 7-1/2" long, Serial Range: (Cut-size)

1шт.

40

353-408

PLUG,Dome, .750" hole, Nylon

- post holes, 3/4"

2шт.

40

353-411

PLUG,Dome, 1.000" hole, Nylon

4шт.

41

A42614

CABLE

- heater control, Includes: Ref. 42 and 43

1шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

43

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam (3/4" N.C. hex.)

1шт.
