Запчасти Case IH 2470 (290) - CAB, PLENUM WITH HEATER, 1ST USED CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

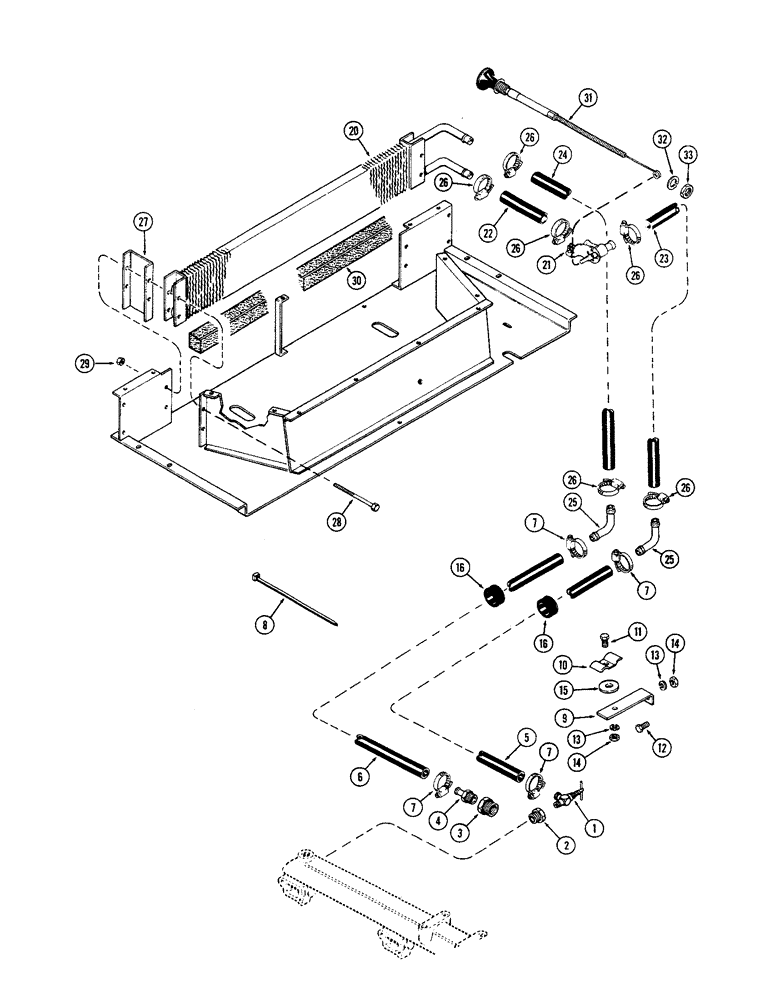

Схема запчастей Case IH 2470 - (290) - CAB, PLENUM WITH HEATER, 1ST USED CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS
16
3
20
10
33
28
1
26
26
8
26
13
7
30
15
26
27
23
32
26
7
24
12
22
7
2
25
9
5
14
16
29
25
26
6
11
31
4
7
14
13
21

Артикул

Название

Примечание

Количество

A76377

ATTACHMENT - heater (Mach. item), Includes: Ref. 1 - 29

1шт.

1

A16764

VALVE

- water manifold

1шт.

2

221-1059

BUSHING - reducing, 3/4 x 3/8" (Water manifold)

1шт.

3

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducing, 3/4 x 1/2 (Water pump)

1шт.

4

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose to water pump, 5/8" hose x 1/2" P.T.

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - manifold to heater (Red 52") (Order A42610)

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - heater to water pump (Black 75") (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" I.D. x 1" O.D. (50 ft. roll, Serial Range: cut-length)

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

4шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose

1шт.

9

A75899

BRACKET - hose clamp

1шт.

10

A27440

CLAMP

-, Serial Range: hose-bracket

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

A76093

BUSHING

SPACER - hose clamp

1шт.

16

L17604

GROMMET

- hose, side plate

2шт.

F89881

HEATER - attaching parts (Mach. item), Includes: Ref. 20 - 29

1шт.

20

F63647

CORE

- heater

1шт.

21

F63865

VALVE

- heater

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - core to valve (Red 6-3/4") (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - valve inlet (Red 69-1/2") (Order A42610)

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - heater outlet (Black 75-1/2") (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" I.D. x 1" O.D. (50 ft. roll, Serial Range: cut-length)

1шт.

25

A60823

ELBOW

- hose

2шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

6шт.

27

F63748

BRACKET

FILLER - plenum, R.H.

2шт.

28

113-45

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- 1/4 x 5" N.C. hex.

4шт.

29

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4"

4шт.

30

F63756

FILLING STRIP

FILLER - foam (1-1/2" sq. x 30")

1шт.

31

A42614

CABLE

- heater control, Includes: Ref. 32 and 33

1шт.

32

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

33

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam (3/4" N.C.)

1шт.

Выбрано товаров: 34
