(288) - CAB, PLENUM, W/O HEATER OR AIR CONDITIONER, USED PRIOR TO CAB SERIAL NO. 7813600

Запчасти Case IH 2470 (288) - CAB, PLENUM, W/O HEATER OR AIR CONDITIONER, USED PRIOR TO CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

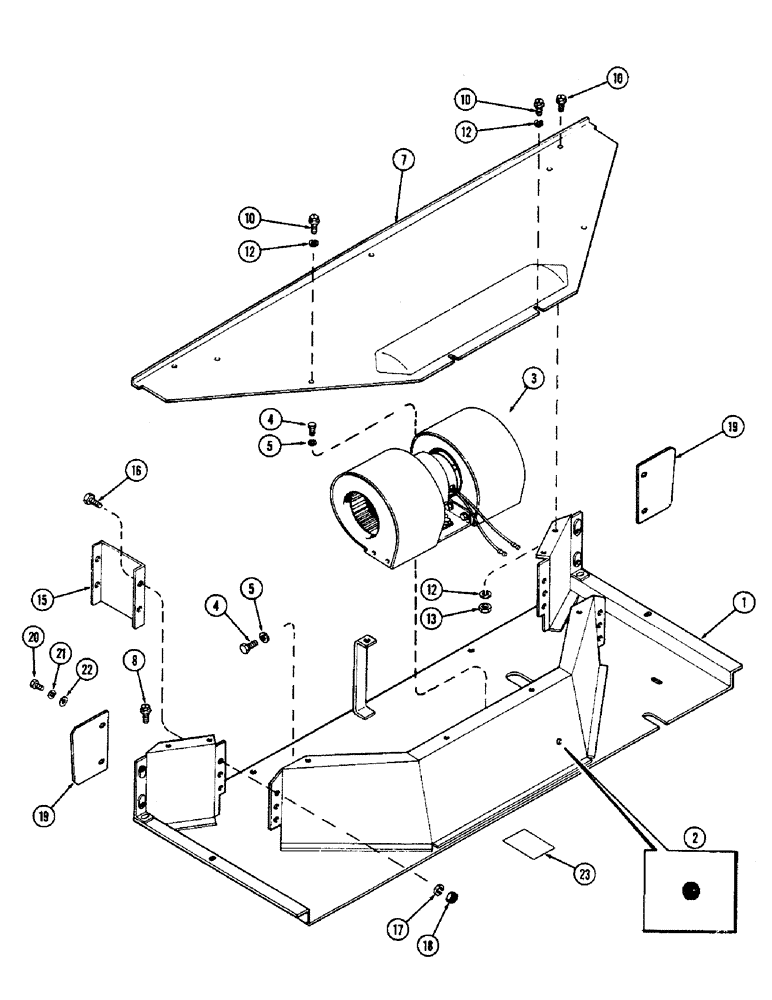

Схема запчастей Case IH 2470 - (288) - CAB, PLENUM, W/O HEATER OR AIR CONDITIONER, USED PRIOR TO CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS
4
13
8
1
5
15
23
10
17
18
22
20
12
19
2
10
4
19
10
12
16
21
3
12
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F89738

PLENUM - cab

1шт.

2

A42502

GROMMET

- blower wire

1шт.

3

REF

INSTRUCTION

BLOWER ASSY. - cab air (See figure 312)

1шт.

4

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex. sltd. washer hd.

4шт.

5

193-6

LOCK WASHER,Ext Tooth, #10

WASHER - Shakeproof, #10 int.

4шт.

7

F63574

COVER - plenum

1шт.

8

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex. sltd. washer hd.

4шт.

10

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex. sltd. washer hd.

9шт.

12

195-511

WASHER,#10

- 13/64 x 15/32 x 1/16"

9шт.

13

129-17

NUT,Hex, #10 - 24

NUT - N.C. hex. #10-24

9шт.

15

A42532

FILLER - plenum, R.H. & L.H.

2шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

8шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

19

F63250

SEAL

-, Serial Range: plenum-cab

2шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

22

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

23

345-38

TAPE - drip pan holes, 7-1/2" long, Serial Range: (Cut-size)

1шт.
