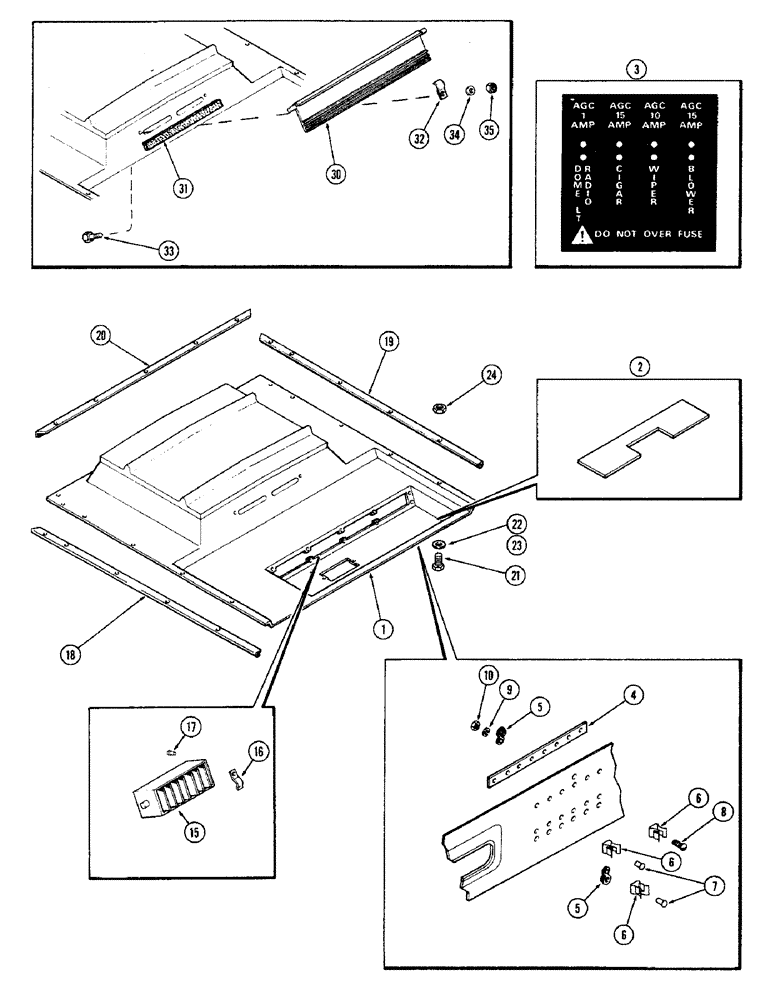

Запчасти Case IH 2470 (284) - CAB, HEADLINER AND LOUVERS, USED PRIOR TO CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

F89747

LINING

HEADLINER ASSY. - cab, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - cab

1шт.

F63416

COVER

- acoustical (See figure 280)

1шт.

2

F63510

FOAM - noise barrier

1шт.

3

321-2129

DECAL

- fuse

1шт.

4

F63512

BAR

BUSS BAR - fuse

1шт.

5

F63513

CLIP

- buss fuse

5шт.

6

F63514

CLIP

- fuse tron

8шт.

7

151-502

RIVET,Pop, 1/8" x 5/16"

- 1/8" pop

7шт.

8

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- #5 x 1/2" N.C. rd. hd., brass

1шт.

9

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

1шт.

10

129-630

NUT,#5-40, Brass

- #5 N.C. hex., brass

1шт.

15

F89673

GUARD

LOUVER - air deflection

3шт.

16

A42575

CLIP

- louver mounting

6шт.

17

151-502

RIVET,Pop, 1/8" x 5/16"

- 1/8" pop

6шт.

18

F63452

SOFT TRIM

TRIM - R.H.

1шт.

19

F63453

SOFT TRIM

TRIM - L.H.

1шт.

20

F63454

SOFT TRIM

TRIM - rear

1шт.

21

163-13

SCREW,Hex, #10 - 24 x 3/4"

- #10 x 3/4" N.C. hex.

15шт.

22

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16") 1/4", SAE

15шт.

23

195-511

WASHER,#10

- 13/64 x 15/32 x 1/16"

15шт.

24

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

15шт.

30

F89764

FLAP

VALVE - auto-pressurization

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - valve (Order A42905)

1шт.

A42905

FOAM

SEAL - valve, 50' roll

1шт.

32

F63260

CLIP

- valve hinge

2шт.

33

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16" N.C. hex.

2шт.

34

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

2шт.

35

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.
