Запчасти Case IH 2470 (283A) - CAB, HEADLINER & LOUVERS, USED CAB SERIAL NO. 7813600 TO 7825451 (09) - CHASSIS/ATTACHMENTS

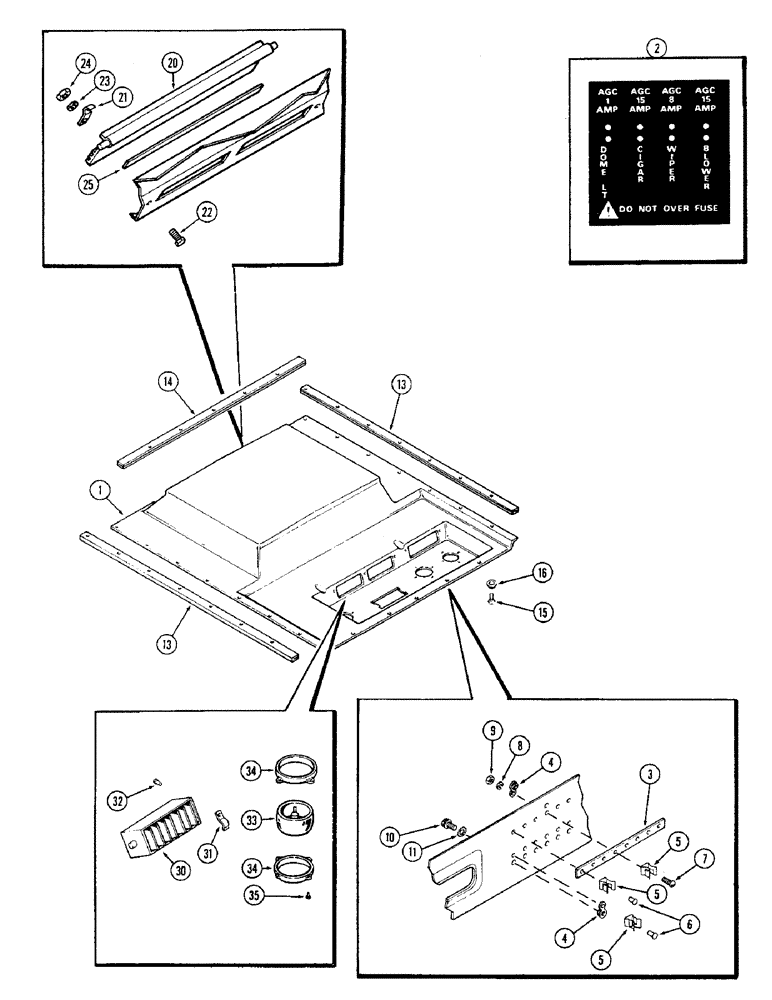

Схема запчастей Case IH 2470 - (283A) - CAB, HEADLINER & LOUVERS, USED CAB SERIAL NO. 7813600 TO 7825451 (09) - CHASSIS/ATTACHMENTS
9
6
5
13
5
15
31
10
11
35
2
16
7
4
34
30
22
14
1
3
21
20
5
25
33
24
13
4
34
23
32
8

Артикул

Название

Примечание

Количество

F89842

LINING

HEADLINER ASSY. - cab, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - cab

1шт.

2

321-2129

DECAL

- fuse

1шт.

3

F63512

BAR

BUSS BAR - fuse

1шт.

4

F63513

CLIP

- buss fuse

5шт.

5

F63514

CLIP

- fuse tron

8шт.

6

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8"

7шт.

7

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- #5-40 x 1/2" rd. hd.

1шт.

8

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

1шт.

9

129-630

NUT,#5-40, Brass

- brass, #5-40 hex.

1шт.

10

163-17

SCREW,Sl Hex Wshr Hd, #6 - 32 x 3/8"

- mach. (#6 x 3/8" hex. washer hd., slotted)

5шт.

11

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

4шт.

13

F63800

MOLDING

TRIM - side, headliner

2шт.

14

F63799

MOLDING

TRIM - rear, headliner

1шт.

15

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" Phillips drive

22шт.

16

F63765

WASHER

- finishing

22шт.

20

F89764

FLAP

VALVE - pressure adjusting

1шт.

21

F63810

CLIP

- valve hinge

2шт.

22

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16" N.C. hex.

2шт.

23

195-511

WASHER,#10

- plain, 13/64 x 15/32 x 3/64"

2шт.

24

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

25

NSS

NOT SOLD SEPARAT

SEAL - valve, 11" (Order A42905)

1шт.

A42905

FOAM

SEAL - foam (50 ft. roll, Serial Range: cut-length)

1шт.

F63416

COVER

- acoustical, headliner (See figure 280)

1шт.

30

F89673

GUARD

LOUVER - air deflection

2шт.

31

A42575

CLIP

- louver mounting

4шт.

32

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8"

4шт.

33

F63777

BALL

LOUVER - ball type

3шт.

34

F63776

FRAME

- ball louver

6шт.

35

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #18-15 x 5/8" rd. hd. Phillips self-tap

12шт.

Выбрано товаров: 30
