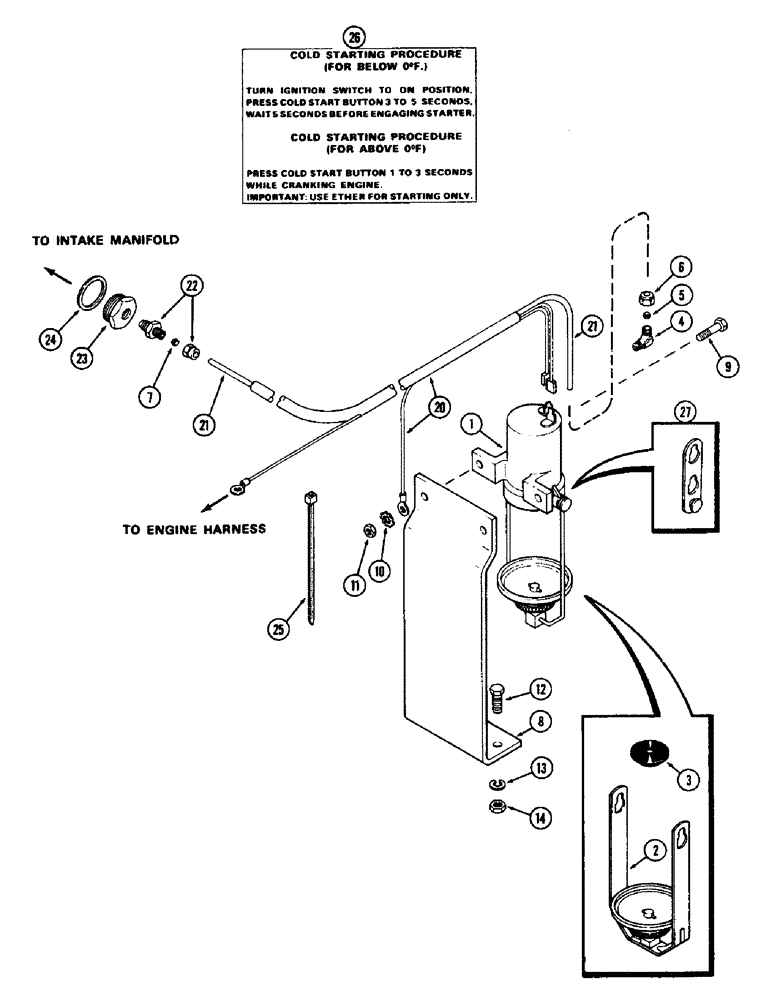

Запчасти Case IH 2470 (021A) - ETHER STARTING KIT, 504BDT DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2529467 (02) - ENGINE

A75940

THERMOSTART

KIT - ether cold start, Includes: Ref. 1 - 27

1шт.

1

A62441

SOLENOID

ASSY. - ether injection w/fitting, Includes: Ref. 2 - 7

1шт.

2

R30785

BAIL

- ether can

1шт.

3

R30786

GASKET

- can

1шт.

4

A44809

FITTING

ELBOW ASSY. - check valve, Includes: Ref. 5 and 6

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Elbow to hose 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

(For 1/8" tube) elbow to hose 5/16"-24, 45º Fl, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

Hose to injector nozzle 1/8" Tube, Comp

1шт.

8

A75896

SUPPORT - ether injector solenoid

1шт.

9

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

10

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock (1/4" int./ext. teeth Shakeproof)

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

A62773

HARNESS

- wire, solenoid to starter relay

1шт.

21

A62774

TUBE

-, Serial Range: solenoid-injector

1шт.

22

A62775

INJECTOR ASSY.

INJECTOR - nozzle

1шт.

23

L10283

PLUG

ADAPTER - nozzle to intake manifold

1шт.

24

A20916

MANIFOLD GASKET

WASHER -, Serial Range: adapter-manifold

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - harness (Nylon)

1шт.

26

321-2946

DECAL

- ether operation (Instr. panel) (Repl. 321-1841)

1шт.

27

R30812

LINK

- bail extension

2шт.
