Запчасти Case IH 2470 (280) - CAB, ACOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS

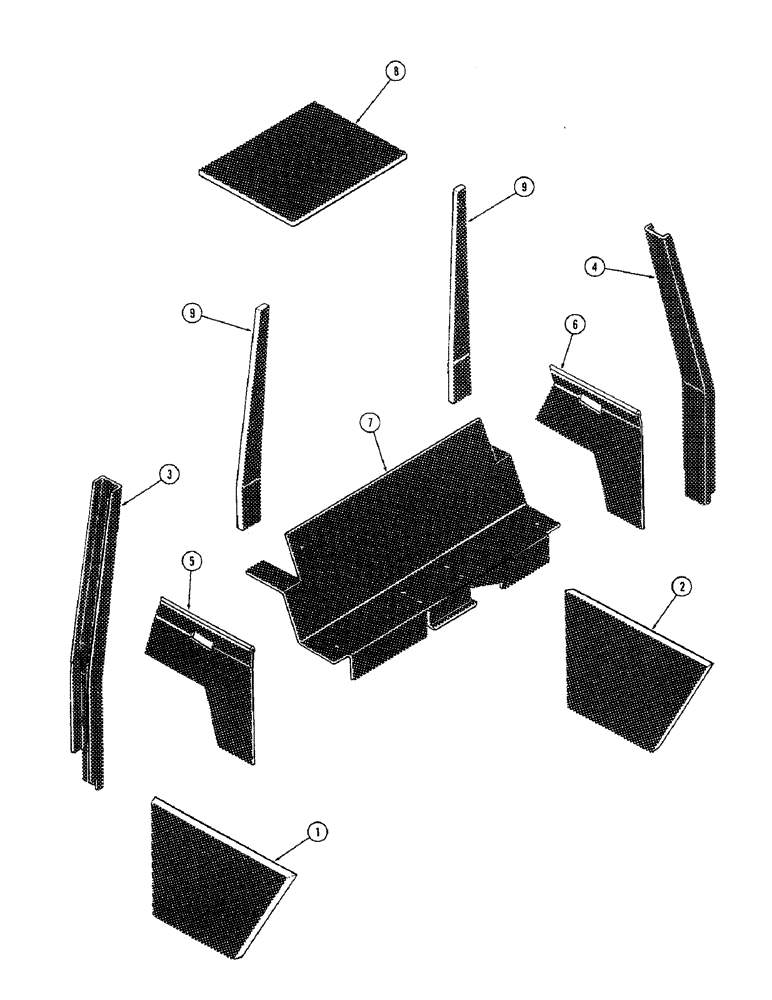

Схема запчастей Case IH 2470 - (280) - CAB, ACOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS
2
9
5
3
4
6
7
1
9
8

Артикул

Название

Примечание

Количество

1

F63557

SKID/SHOE

COVER - door, R.H.

1шт.

To be attached with adhesive 345-22.

1шт.

2

F63565

PADDING

COVER - door, L.H.

1шт.

To be attached with adhesive 345-22.

1шт.

3

F63506

COVER

- roll bar, R.H.

1шт.

To be attached with adhesive 345-22.

1шт.

4

F63507

COVER

- roll bar, L.H.

1шт.

To be attached with adhesive 345-22.

1шт.

5

F63504

COVER - panel, R.H.

1шт.

To be attached with adhesive 345-22.

1шт.

6

F63505

COVER - panel, L.H.

1шт.

To be attached with adhesive 345-22.

1шт.

7

F63503

COVER

- panel, rear

1шт.

To be attached with adhesive 345-22.

1шт.

8

F63416

COVER

- headliner

1шт.

To be attached with adhesive 345-22.

1шт.

9

F63455

COVER

- rear corners

2шт.

To be attached with adhesive 345-22.

1шт.

Выбрано товаров: 18
