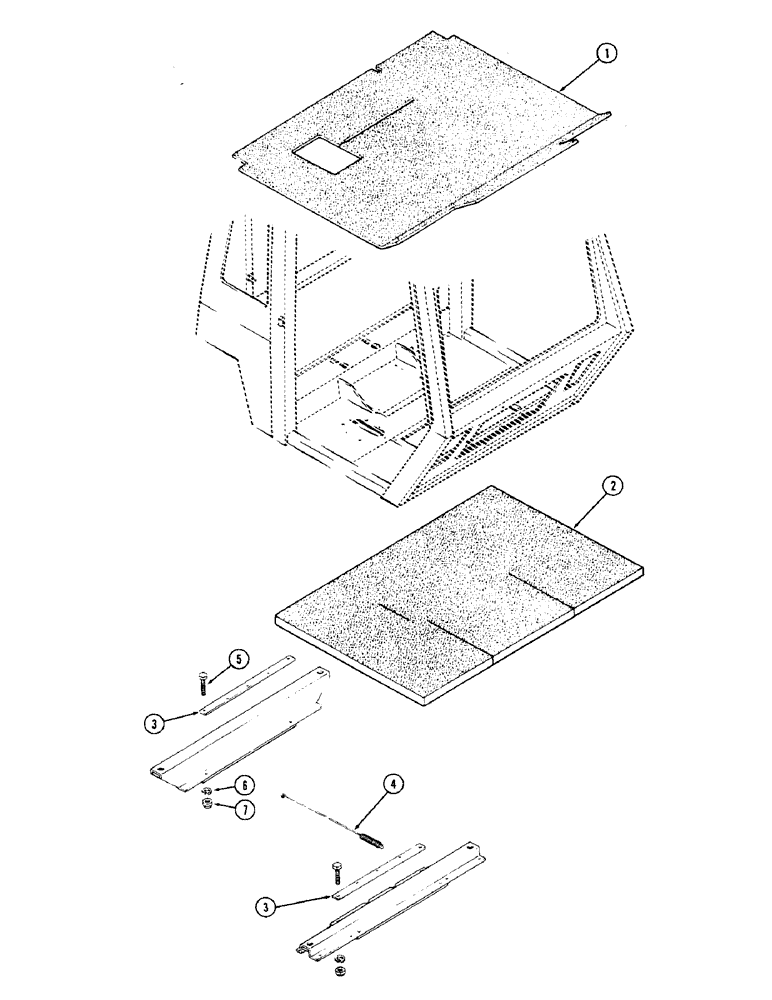

Запчасти Case IH 2470 (278) - CAB, INSULATION, FLOOR (09) - CHASSIS/ATTACHMENTS

1

F63570

FLOOR MAT

MAT - floor (Inside cab)

1шт.

2

A76183

MAT

- trans. cover (Under cab)

1шт.

3

A76182

STRAP

- spring support

2шт.

4

A76184

SPRING

- mat support

3шт.

5

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

6

192-215

LOCK WASHER,5/8"

5/8"

4шт.

7

129-567

NUT

- 5/8" N.C. hex.

4шт.
