Запчасти Case IH 2470 (276) - CAB, REAR WINDOW, 1ST USED CAB SERIAL NO. 7825451 (09) - CHASSIS/ATTACHMENTS

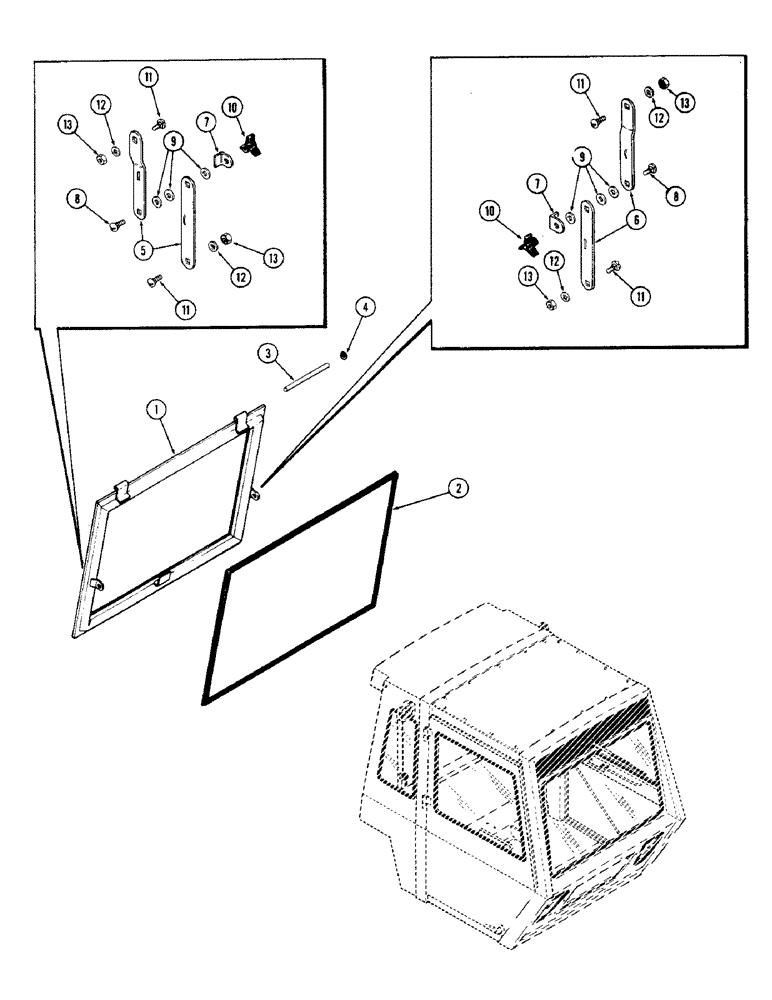

Схема запчастей Case IH 2470 - (276) - CAB, REAR WINDOW, 1ST USED CAB SERIAL NO. 7825451 (09) - CHASSIS/ATTACHMENTS
11
12
10
2
12
6
3
9
11
11
7
9
13
5
12
13
7
6
13
8
4
11
13
10
12
1

Артикул

Название

Примечание

Количество

1

F89387

FRAME

WINDOW - rear (Incl. glass), Includes: Ref. 2

1шт.

Order glass & moulding from figure 330

1шт.

2

NSS

NOT SOLD SEPARAT

STRIP - weather, window (Order A42504)

1шт.

A42504X

FILLING STRIP

STRIP - weather, window (50' roll, cut as req'd)

1шт.

3

A42524

PIN,9.53mm OD x 119.38mm L

- hinge

2шт.

4

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

5

F63203

ARM

ASSY. - window, R.H. (Incl. Refs. 7 - 9)

1шт.

6

F63280

ARM

ASSY. - window, L.H., Includes: Ref. 7 - 9

1шт.

7

F63665

CLIP

- arm limit

1шт.

8

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr.

1шт.

9

F63299

WASHER

- friction

3шт.

10

F63415

KNOB

- regulator

2шт.

11

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr.

4шт.

12

195-521

WASHER,5/16", SAE

- 3/8 x 1-1/8 x 1/16"

4шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

4шт.

Выбрано товаров: 15
