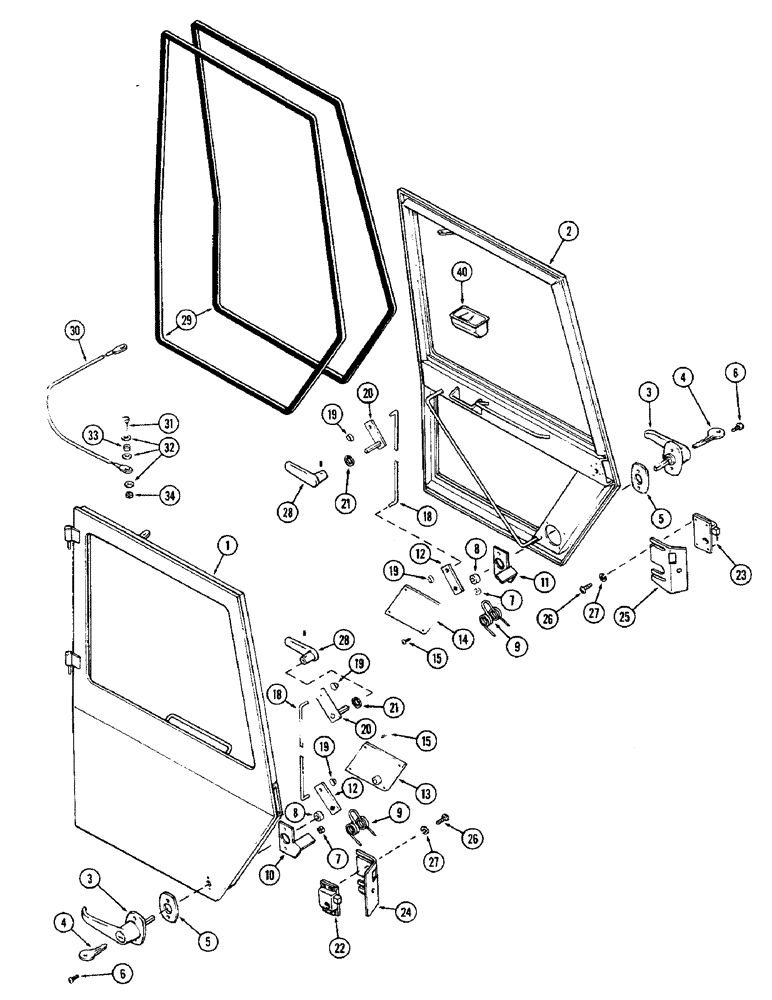

Запчасти Case IH 2470 (274) - CAB, DOORS, USED PRIOR TO CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

1

F89754

DOOR ASSY. - R.H., Includes: Ref. 3 - 29

1шт.

Order glass from figure 330.

1шт.

2

F89760

DOOR ASSY. - L.H., Includes: Ref. 3 - 29

1шт.

Order glass from figure 330.

1шт.

3

F63554

HANDLE

- door outer, Includes: Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEY - door lock (Set of 2)

1шт.

5

A42913

GASKET

- handle

1шт.

6

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- #10 x 5/8" N.C. Phillips oval hd.

2шт.

7

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.

8

F63555

BEARING - latch arm

1шт.

9

F42169

SPRING

- latch arm

1шт.

10

F63732

BRACKET - latch spring, R.H.

1шт.

11

F63757

BRACKET - latch spring, L.H.

1шт.

12

F63739

ARM

- door latch

1шт.

13

F89763

PLATE - access, R.H.

1шт.

14

F89759

PLATE - access, L.H.

1шт.

15

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips hd., self-tapping

4шт.

18

F63551

ROD

- pull

1шт.

19

131-416

NUT

- push, 1/4"

2шт.

20

F89758

ARM

- stub shaft

1шт.

21

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

1шт.

22

F89757

LATCH

- door, R.H.

1шт.

23

F89708

LATCH

- door, L.H.

1шт.

24

F63552

COVER - door latch, R.H.

1шт.

25

F63401

COVER

- door latch, L.H.

1шт.

26

128-528

SCREW - #10 x 1/2" N.F. rd. hd., mach.

4шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

28

A42588

HANDLE

- inner, door latch

1шт.

29

NSS

NOT SOLD SEPARAT

STRIP - weather door frame (Order A42504)

1шт.

A42504

TYRE/TIRE

STRIP - weather (50 ft. roll, Serial Range: cut-length)

1шт.

30

F63666

CABLE

- door stop

2шт.

31

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

32

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16"

12шт.

33

T32262

SPACER - cable

4шт.

34

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. Esna lock

4шт.

40

F63395

TRAY

ASH TRAY

1шт.
