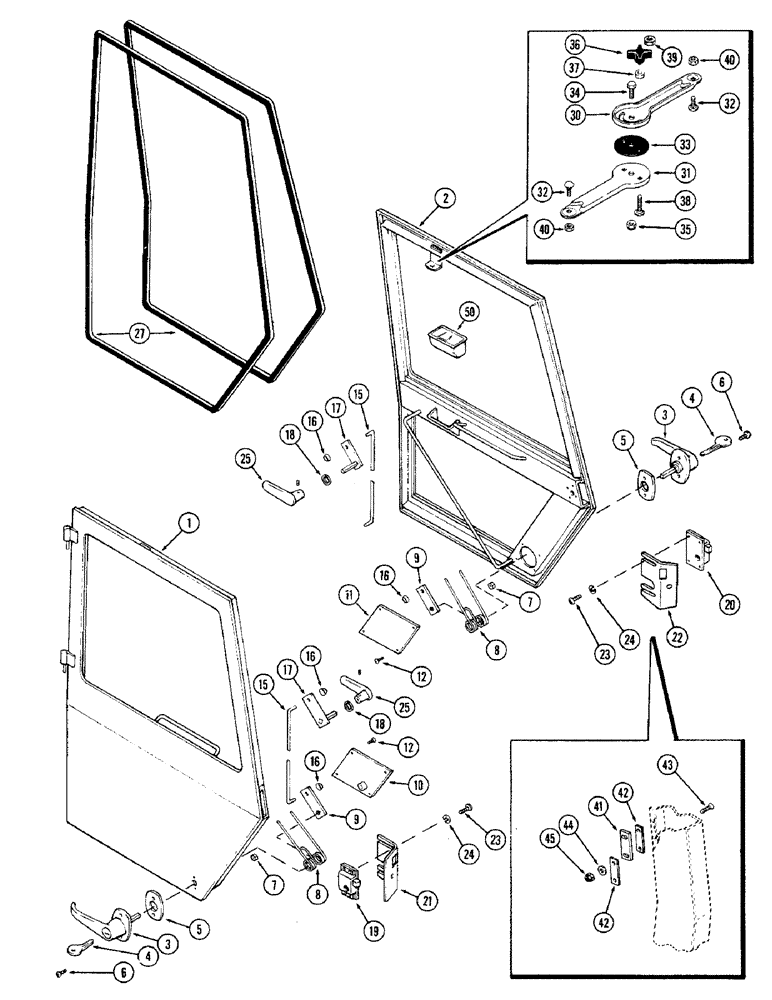

Запчасти Case IH 2470 (273A) - CAB, DOORS, USED CAB SERIAL NO. 7813600 TO 7825451 (09) - CHASSIS/ATTACHMENTS

1

F89852

DOOR ASSY. - R.H., Includes: Ref. 3 - 27

1шт.

Order glass from figure 330.

1шт.

2

F89851

DOOR ASSY.

- L.H., Includes: Ref. 3 - 27

1шт.

Order glass from figure 330.

1шт.

3

F63554

HANDLE

- outer, Includes: Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEY - door lock (Set of 2)

1шт.

5

F63860

GASKET

- handle

1шт.

6

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- handle, #10-24 x 5/8" Phillips

2шт.

7

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

8

F15243

SPRING

- latch arm

1шт.

9

F63739

ARM

- door latch

1шт.

10

F89763

PLATE - access, R.H. door latch

1шт.

11

F89759

PLATE - access, L.H. door latch

1шт.

12

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips self-tapping

4шт.

15

F63551

ROD

- pull

1шт.

16

131-416

NUT

- push, 1/4"

2шт.

17

F89758

ARM

- stub shaft

1шт.

18

195-529

WASHER,7/16", SAE

- plain, 15/32 x 59/64 x 1/16"

1шт.

19

F89757

LATCH

- R.H. door

1шт.

20

F89708

LATCH

- L.H. door

1шт.

21

F63552

COVER - R.H. door latch

1шт.

22

F63401

COVER

- L.H. door latch

1шт.

23

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

4шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

25

A42588

HANDLE

- inner, door latch

1шт.

27

NSS

NOT SOLD SEPARAT

STRIP - weather, door frame (Order F63801)

1шт.

F63801

WEATHERSTRIP

STRIP - weather (40 ft. roll, Serial Range: cut-length)

1шт.

30

F63407

ARM

- upper, door holder (10-3/4" lg.)

2шт.

31

F63408

ARM

- lower, door holder (10-3/4" lg.)

2шт.

32

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8 x 3/4" N.C. rd. hd. sq. nk.

4шт.

33

F63405

DISC

- friction, door arm

2шт.

34

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

35

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16" N.C.

2шт.

36

F63415

KNOB

- adjusting, door arm

2шт.

37

D43608

SPACER

- arm

2шт.

38

111-261

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - 5/16 x 2" N.C. rd. hd. sq. nk.

4шт.

39

131-1117

LOCK NUT,5/16"-18, GA

NUT - lock, 5/16" N.C.

4шт.

40

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - (3/8" N.C. crownlock)

4шт.

41

F63783

CATCH

- door

1шт.

42

F63784

SHIM

- door catch (12 ga.)

1шт.

42

F63785

SHIM

- door catch (14 ga.)

1шт.

42

F63786

SHIM

- door catch (20 ga.)

1шт.

43

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- (1/4 x 1" N.C. Phillips flat hd.)

2шт.

44

195-102

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

2шт.

45

86625061

NUT,1/4"-20, GB

NUT - lock (1/4" N.C. Esna)

2шт.

50

F63395

TRAY

ASH TRAY

1шт.
