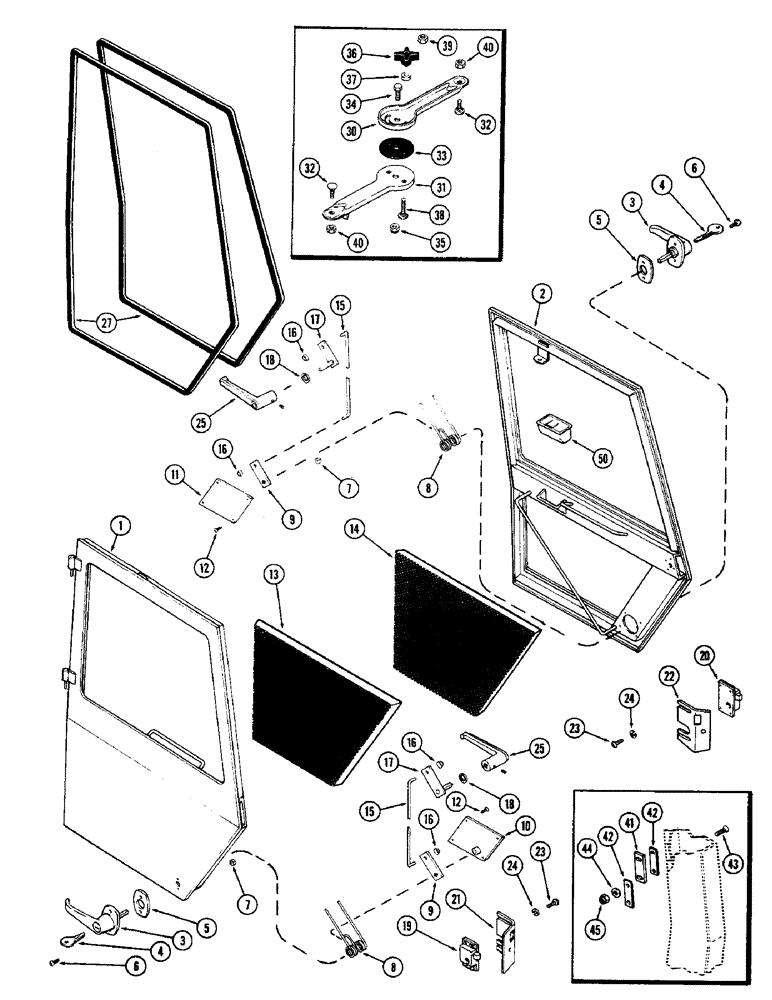

Запчасти Case IH 2470 (272) - CAB, DOORS, 1ST USED CAB SERIAL NO. 7825451 (09) - CHASSIS/ATTACHMENTS

1

F89776

DOOR

ASSY. - R.H., Includes: Ref. 3 - 27

1шт.

Order glass & moulding from figure 330

1шт.

2

F89775

DOOR

ASSY. - L.H., Includes: Ref. 3 - 27

1шт.

Order glass & moulding from figure 330

1шт.

3

F63554

HANDLE

- outer, Includes: Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEY - door lock (Set of 2)

1шт.

5

A63860

GASKET - handle

1шт.

6

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- #10-24 x 5/8" Phillips

2шт.

7

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

8

F15243

SPRING

- latch arm

1шт.

9

F63739

ARM

- door latch

1шт.

10

F89398

COVER PLATE

PLATE - access, R.H. door latch

1шт.

11

F89397

COVER

PLATE - access, L.H. door latch

1шт.

12

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips self-tapping

4шт.

13

F63557

SKID/SHOE

PADDING - R.H. door

1шт.

To be attached with adhesive 345-22.

1шт.

14

F63565

PADDING

- L.H. door

1шт.

To be attached with adhesive 345-22.

1шт.

15

F63551

ROD

- pull

1шт.

16

131-416

NUT

- push, 1/4"

2шт.

17

F89758

ARM

- stub shaft

1шт.

18

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

1шт.

19

F89757

LATCH

- R.H. door

1шт.

20

F89708

LATCH

- L.H. door

1шт.

21

F63659

COVER

- R.H. door latch

1шт.

22

F63658

COVER

- L.H. door latch

1шт.

23

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

4шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

25

F63925

HANDLE

- inner, door latch

1шт.

27

NSS

NOT SOLD SEPARAT

STRIP - weather, door frame (Order F63801)

1шт.

F63801

WEATHERSTRIP

STRIP - weather, 40' roll (Cut as req'd)

1шт.

30

F63989

ARM

- upper, door holder (10-3/4" long)

2шт.

31

F89385

ARM

- lower, door handle (10-3/4" long)

2шт.

32

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8 x 3/4" N.C. rd. hd. sq. nk.

4шт.

33

F63405

DISC

- friction, door arm

2шт.

34

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

35

231-1445

NUT,5/16"-18, GB

NUT - 5/16" N.C. hex. lock

2шт.

36

F63415

KNOB

- adjusting, door arm

2шт.

37

F63586

BUSHING

SPACER - arm

2шт.

38

111-261

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - 5/16 x 2" N.C. rd. hd. sq. nk.

4шт.

39

131-1117

LOCK NUT,5/16"-18, GA

NUT - 5/16" N.C. hex. lock

4шт.

40

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - 3/8" N.C. hex. crownlock

4шт.

41

F63783

CATCH

- door

1шт.

42

F63784

SHIM

- door catch (12 ga.)

1шт.

42

F63785

SHIM

- door catch (14 ga.)

1шт.

42

F63786

SHIM

- door catch (20 ga.)

1шт.

43

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. Phillips flat hd.

2шт.

44

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

45

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. Esna lock

2шт.

50

F63395

TRAY

ASH TRAY

1шт.
