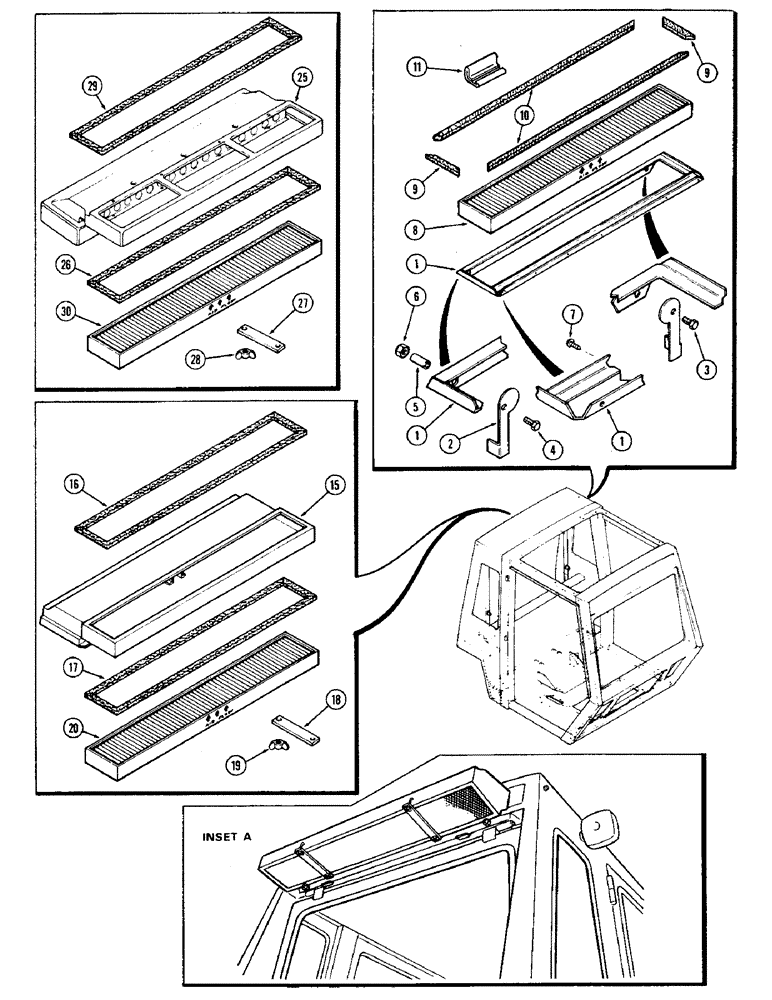

Запчасти Case IH 2470 (268) - CAB, INTERNAL AIR FILTER, USED PRIOR TO CAB SERIAL NO. 7800701 (09) - CHASSIS/ATTACHMENTS

1

F89645

PLATE

ASSY. - filter inlet

1шт.

2

F63267

CAM - latch, R.H.

1шт.

3

F63266

LATCH

CAM - latch, L.H.

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

T32262

SPACER - cam bolt

2шт.

6

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. Esna

2шт.

7

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips hd., self-tapping

7шт.

8

NLS

NO LONGER SERVICED

- air intake

1шт.

9

F63331

SEAL - filter sides, 1/4 x 3/4 x 5-3/32"

2шт.

10

F63332

SEAL

SEAL - filter front & rear, 1/4 x 3/4 x 38-1/2"

2шт.

11

F63648

TAB - filter pull

1шт.

15

A66393

HOUSING ASSY. - cab air filter (Metal) (See inset A) (Mach. item), external, Includes: Ref. 16 - 19

1шт.

16

A44660

GASKET - filter hsg. to cab, external air filter

1шт.

17

F63674

SEAL

- filter to hsg., external air

1шт.

18

NLS

NO LONGER SERVICED

- filter retaining, external air

2шт.

19

129-409

WING NUT,1/4"-20

NUT, WING, , External air filter 1/4"-20

4шт.

20

A42573

FILTER

- air intake, external filter

1шт.

25

A65701

HOUSING ASSY. - cab air filter (Plastic) (Order A66393) (See inset A), external, Includes: Ref. 26 - 29

1шт.

26

A44438

GASKET - filter to molded hsg. (Order A44500), external air

1шт.

27

A44436

BAR

- filter retaining, external air

2шт.

28

129-409

WING NUT,1/4"-20

NUT, WING, , External air filter 1/4"-20

4шт.

29

A44500

GASKET

- filter hsg. to cab, external air

1шт.

30

NLS

NO LONGER SERVICED

- air intake, external

1шт.
