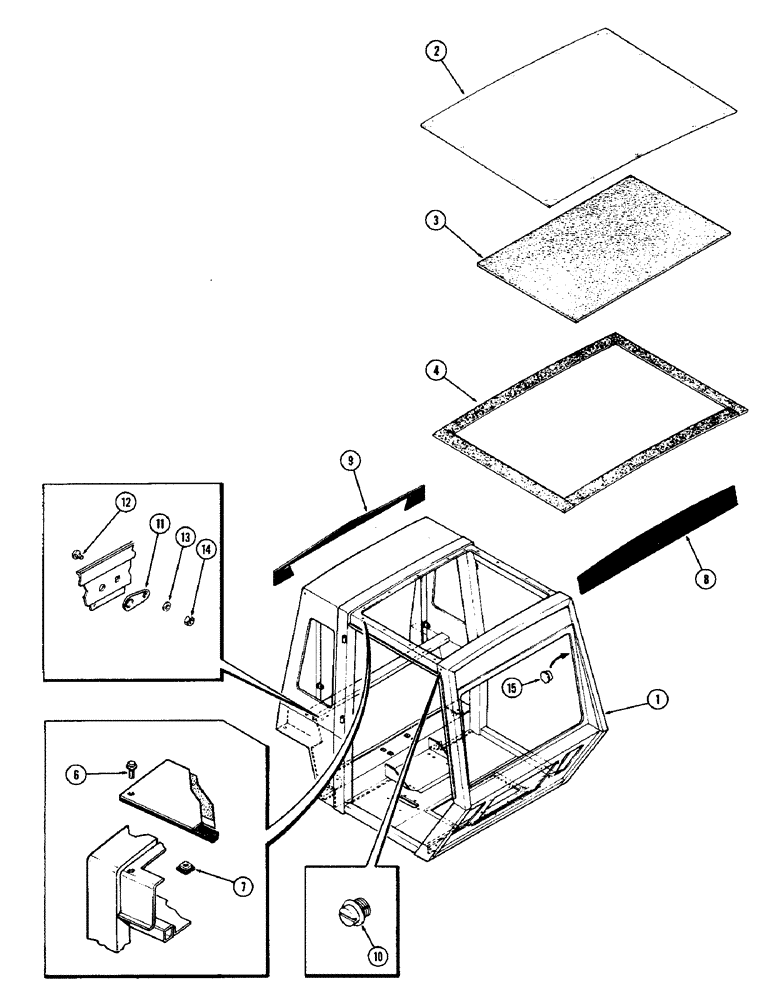

Запчасти Case IH 2470 (266) - CAB, FRAME, USED PRIOR TO CAB SERIAL NO. 7813600 (09) - CHASSIS/ATTACHMENTS

F89718

CAB - w/o heater & w/o air conditioner (Mach. item)

1шт.

F89721

CAB - w/air conditioner (Mach. item)

1шт.

F89724

CAB - w/heater (Mach. item)

1шт.

F89727

CAB - w/air conditioner & w/heater (Mach. item)

1шт.

For F89718, F89721, F89724, & f89727, Use F98313

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63196

ROOF

- cab

1шт.

3

F63221

FOAM - roof temperature barrier

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - roof, 1/4 x 3/8" (Order A42676)

1шт.

A42676

SEAL

- roof, 25' roll

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. hex. washer hd. mach.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" "J" type Tinnerman

18шт.

8

A42582

DECAL

- front panel

1шт.

9

321-1915

DECAL - rear crown

1шт.

10

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

4шт.

11

F12598

PLATE

COVER - utility

1шт.

12

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - 1/4 x 3/4" N.C. carr.

1шт.

13

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

14

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. Esna

1шт.

15

353-408

PLUG,Dome, .750" hole, Nylon

- 3/4" (Cab post w/o air conditioner)

4шт.
