Запчасти Case IH 2470 (265A) - CAB, FRAME, USED CAB SERIAL NO. 7813600 TO 7825451 (09) - CHASSIS/ATTACHMENTS

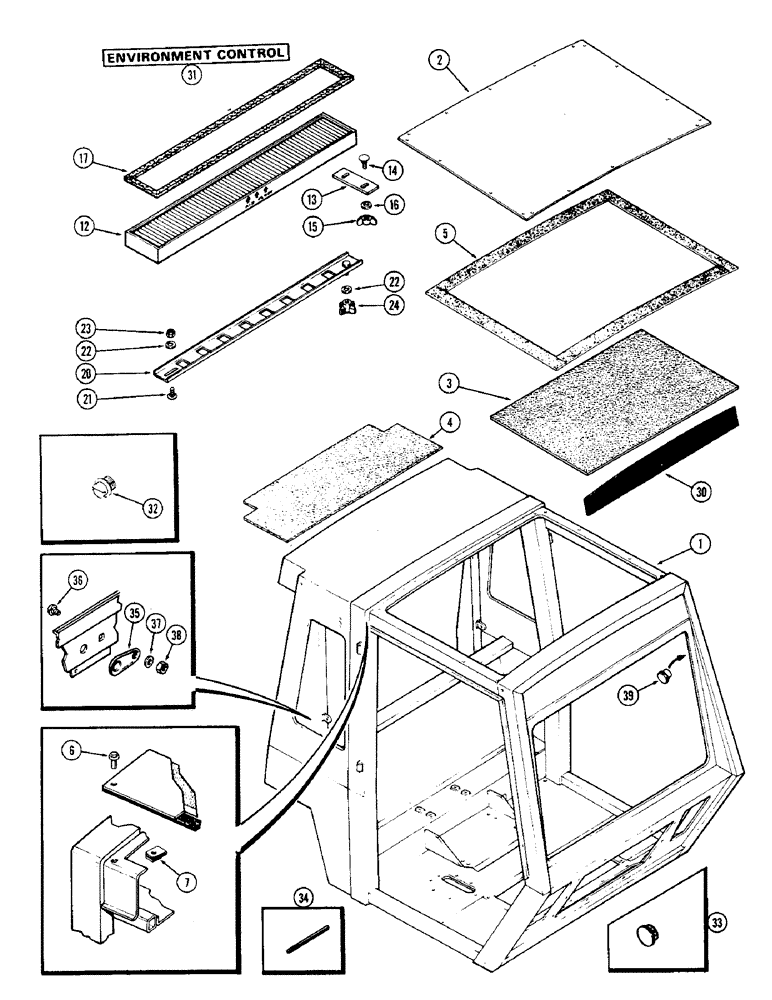

Схема запчастей Case IH 2470 - (265A) - CAB, FRAME, USED CAB SERIAL NO. 7813600 TO 7825451 (09) - CHASSIS/ATTACHMENTS
16
2
31
32
24
35
23
37
12
20
13
36
38
22
5
7
15
33
34
1
4
21
14
17
30
22
39
6
3

Артикул

Название

Примечание

Количество

F89865

CAB - w/o heater & w/o air conditioner (Mach. item)

1шт.

F89866

CAB - w/air conditioner (Mach. item)

1шт.

F89867

CAB - w/heater (Mach. item)

1шт.

F89868

CAB - w/heater & air conditioner (Mach. item)

1шт.

For F89865, F89866, F89867 & F89868, Use F98314

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63196

ROOF

- cab

1шт.

3

F63221

FOAM - temperature barrier

1шт.

4

F63812

BAR

FOAM - rear, temperature barrier

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - roof (Order A42676)

1шт.

A42676

SEAL

- 1/4 x 3/8" (25 ft. roll, Serial Range: cut-length)

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- (1/4 x 3/4" N.C. hex. washer hd.)

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- speed (1/4" type "J" Tinnerman)

18шт.

12

A42573

FILTER

- air intake

1шт.

13

F63728

CLIP

- filter retainer

2шт.

14

111-128

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - (1/4 x 3/4" N.C. rd. hd. sq. nk.)

4шт.

15

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

4шт.

16

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

17

F63674

SEAL

GASKET - filter seal

1шт.

20

F89886

PLATE

ASSY. - recirculation door

1шт.

21

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

22

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 1/16")

2шт.

23

231-1445

NUT,5/16"-18, GB

NUT - lock (5/16" N.C.)

1шт.

24

F63415

KNOB

- door control

1шт.

30

A42582

DECAL

- front panel

1шт.

31

321-2496

DECAL

- rear, "Environment Control"

1шт.

32

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

33

353-411

PLUG,Dome, 1.000" hole, Nylon

Cab post at fender mtg. Dome, 1.000" hole, Nylon

4шт.

34

F63578

GASKET

TRIM - window (50' roll)

1шт.

35

F12598

PLATE

COVER - utility

1шт.

36

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - (1/4 x 3/4" N.C. rd. hd. sq. nk.)

1шт.

37

195-102

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

38

86625061

NUT,1/4"-20, GB

NUT - lock (1/4" N.C. hex.)

1шт.

39

353-408

PLUG,Dome, .750" hole, Nylon

- post holes, 3/4" (w/o air conditioner)

2шт.

Выбрано товаров: 34
