Запчасти Case IH 2470 (264) - CAB, FRAME, 1ST USED CAB SERIAL NO. 7825451 (09) - CHASSIS/ATTACHMENTS

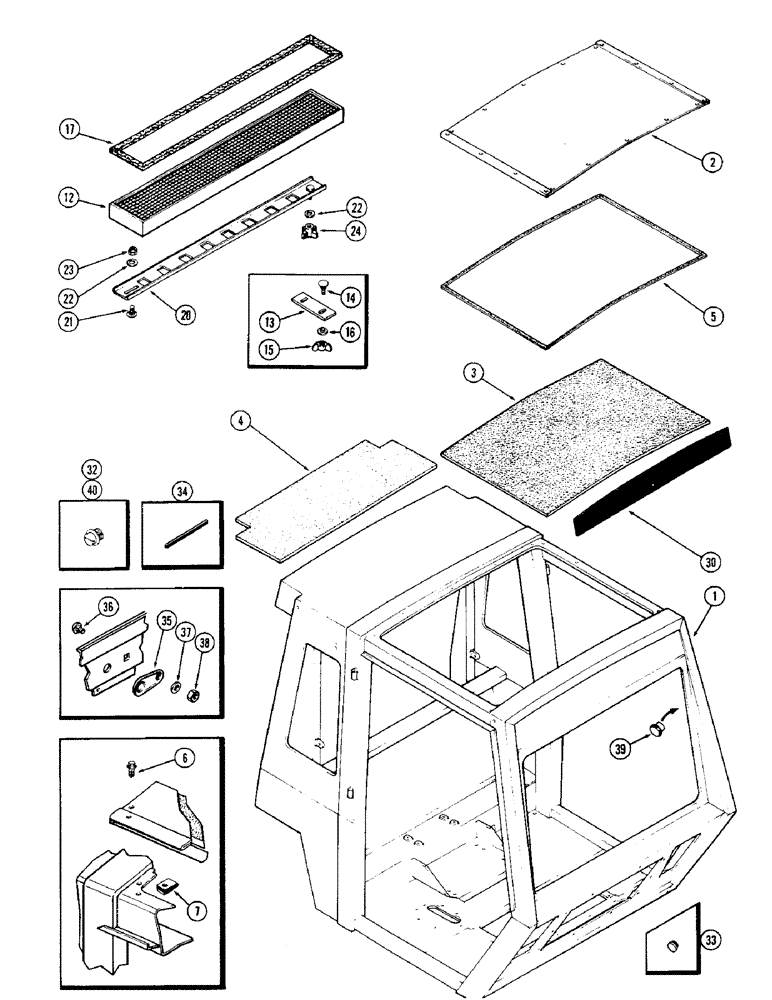

Схема запчастей Case IH 2470 - (264) - CAB, FRAME, 1ST USED CAB SERIAL NO. 7825451 (09) - CHASSIS/ATTACHMENTS
30
6
22
2
4
34
40
3
17
37
7
32
35
1
20
36
13
38
23
16
5
22
14
21
33
12
39
15
24

Артикул

Название

Примечание

Количество

F89979

CAB - w/o heater or air conditioner (Mach. item)

1шт.

F89980

CAB - w/air conditioner (Mach. item)

1шт.

F89981

CAB - w/heater (Mach. item)

1шт.

F89982

CAB - w/heater & air conditioner (Mach. item)

1шт.

For F89979, F89980, F89981, & F89982 Use F98315

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63644

PANEL

ROOF - cab

1шт.

3

F63722

FOAM

- temperature barrier

1шт.

4

F63812

BAR

FOAM - temperature barrier, rear

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - roof (Order A42676)

1шт.

A42676

SEAL

- 1/4 x 3/8" x 25' roll (Cut as req'd.)

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. hex. washer hd.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" "J" type Tinn.

18шт.

12

F63436

FILTER

- air intake

1шт.

13

F63761

CLIP

- filter retainer

2шт.

14

111-128

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4 x 3/4" N.C. rd. hd. sq. nk.

4шт.

15

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

4шт.

16

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

17

F63674

SEAL

GASKET - filter seal

1шт.

20

F63642

PLATE

ASSY. - recirculation door

1шт.

21

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

22

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

2шт.

23

231-1445

NUT,5/16"-18, GB

NUT - 5/16" N.C. hex. crown lock

1шт.

24

F63415

KNOB

- door control

1шт.

30

A42582

DECAL

- front panel

1шт.

32

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

33

353-411

PLUG,Dome, 1.000" hole, Nylon

Cab post at fender mtg. Dome, 1.000" hole, Nylon

4шт.

34

F63578

GASKET

TRIM - window (50' roll)

1шт.

35

F63630

COVER - utility

1шт.

36

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - 1/4 x 3/4" N.C. rd. hd. sq. nk.

1шт.

37

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

38

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex. lock

1шт.

39

353-408

PLUG,Dome, .750" hole, Nylon

- post holes, 3/4" (Used w/o air conditioner)

2шт.

40

353-401

PLUG,Dome, .312" hole, Nylon

- weldment holes, rear rollbar assy.

4шт.

Выбрано товаров: 34
