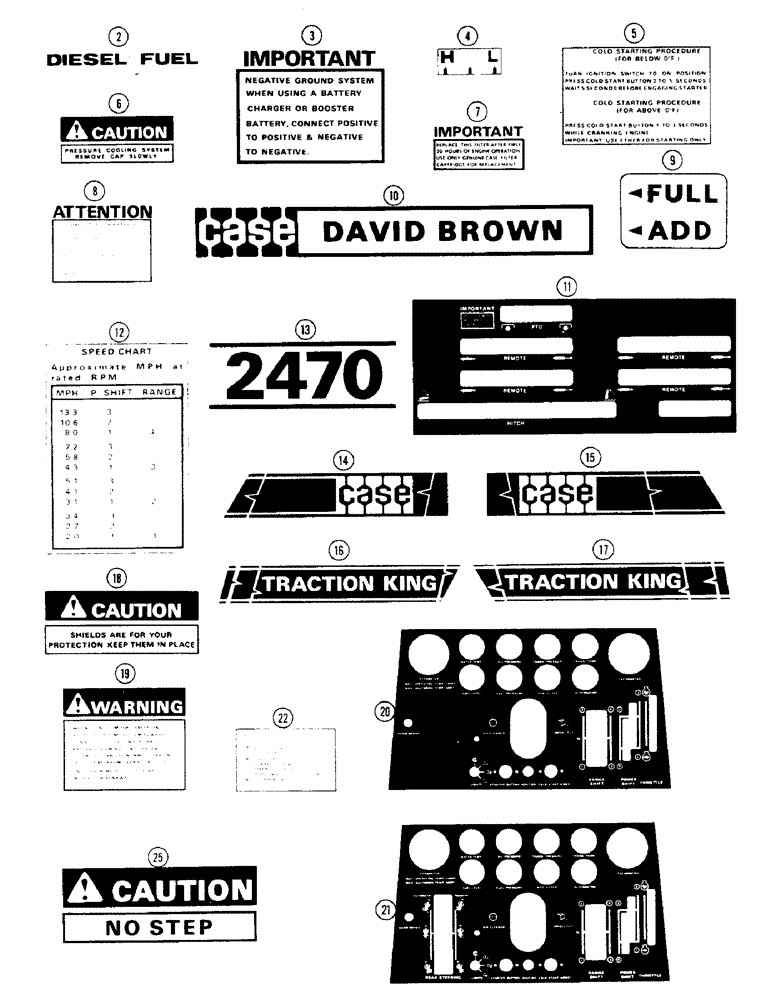

Запчасти Case IH 2470 (262) - DECALS, 1ST USED TRACTOR SERIAL NO. 8762001 (09) - CHASSIS/ATTACHMENTS

A45270

KIT

- decal, Includes: Ref. 2 - 22

1шт.

2

321-230

DECAL

- "Diesel Fuel", fuel tank

2шт.

3

321-1062

DECAL

- "Negative Ground", battery case

2шт.

4

321-1335

DECAL

- seat adjustment indicator

1шт.

5

321-2946

DECAL

- ether operation, instrument panel

1шт.

6

321-2100

DECAL

- "Caution", radiator cap removal

1шт.

7

321-2101

DECAL

- "Important", engine oil filter

2шт.

8

321-2796

DECAL

- turbo-charger operating procedure

1шт.

9

321-2470

DECAL

- oil level, trans. case

1шт.

10

321-2565

DECAL

- "Case" - David Brown (Export only)

2шт.

11

321-2647

DECAL

- console top

1шт.

12

321-2652

DECAL

- speed chart

1шт.

13

321-2681

DECAL

- "2470"

2шт.

14

321-2682

DECAL

- "Case", hood stripe, R.H.

1шт.

15

321-2683

DECAL

- "Case", hood stripe, L.H.

1шт.

16

321-2684

DECAL

- "Traction King", R.H.

1шт.

17

321-2685

DECAL

- "Traction King", L.H.

1шт.

18

321-2687

DECAL

- "Caution", shield

1шт.

19

321-2788

DECAL

- "Warning", starting motor

1шт.

20

321-2155

DECAL - instrument panel, w/o rear steer

1шт.

21

321-2156

DECAL - instrument panel, w/rear steer

1шт.

22

321-2137

DECAL

- engine data

1шт.

25

321-3292

DECAL

- caution, no step

2шт.

A46559 Safety Decal Kit (Quebec)

1шт.
