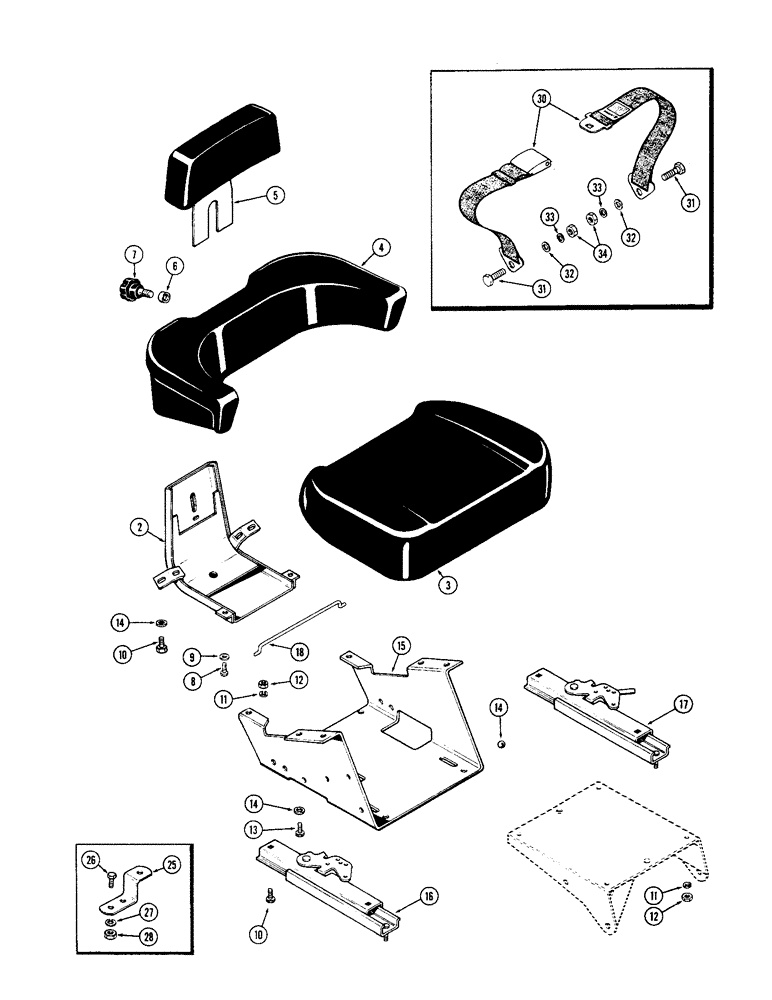

Запчасти Case IH 2470 (259A) - SERIES 30 SEAT, USED PRIOR TO TRACTOR SERIAL NO. 8762001 (09) - CHASSIS/ATTACHMENTS

A76031

SEAT

ASSEMBLY - "Series 30" deluxe vinyl, Includes: Ref. 2 - 18

1шт.

A65092

SEAT

ASSY. - "Deluxe", Includes: Ref. 2 - 9

1шт.

2

A57405

SUPPORT

- seat frame

1шт.

3

A65093

CUSHION

- seat

1шт.

4

A42497

BACKREST

- seat, lower

1шт.

5

A34283

CUSHION

BACKREST - seat, upper

1шт.

6

A40600

SPACER

- backrest adjusting

1шт.

7

A40972

KNOB

- backrest adjusting

1шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

9

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

12

9635082

NUT,5/16" - 18, Gr 5

8шт.

13

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

14

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

10шт.

15

A76032

SUPPORT - mounting, seat angle adjuster

1шт.

16

A64818

ADJUSTER

- seat, R.H. (w/o handle)

1шт.

17

A64819

ADJUSTER

- seat, L.H. (w/handle)

1шт.

18

A64822

ROD - seat lock

1шт.

25

A62177

BRACKET

- seat belt anchor

2шт.

26

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

27

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

28

129-104

NUT,7/16"-14, G5

4шт.

30

A66391

SAFETY BELT

SAFETY BELT

1шт.

31

A61946

STEP BOLT

BOLT - shoulder, seat safety belt

2шт.

32

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16", safety seat belt

2шт.

33

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt 7/16"

2шт.

34

425-117

NUT,7/16"-20, G5

- 7/16" N.C. hex., safety seat belt

2шт.
