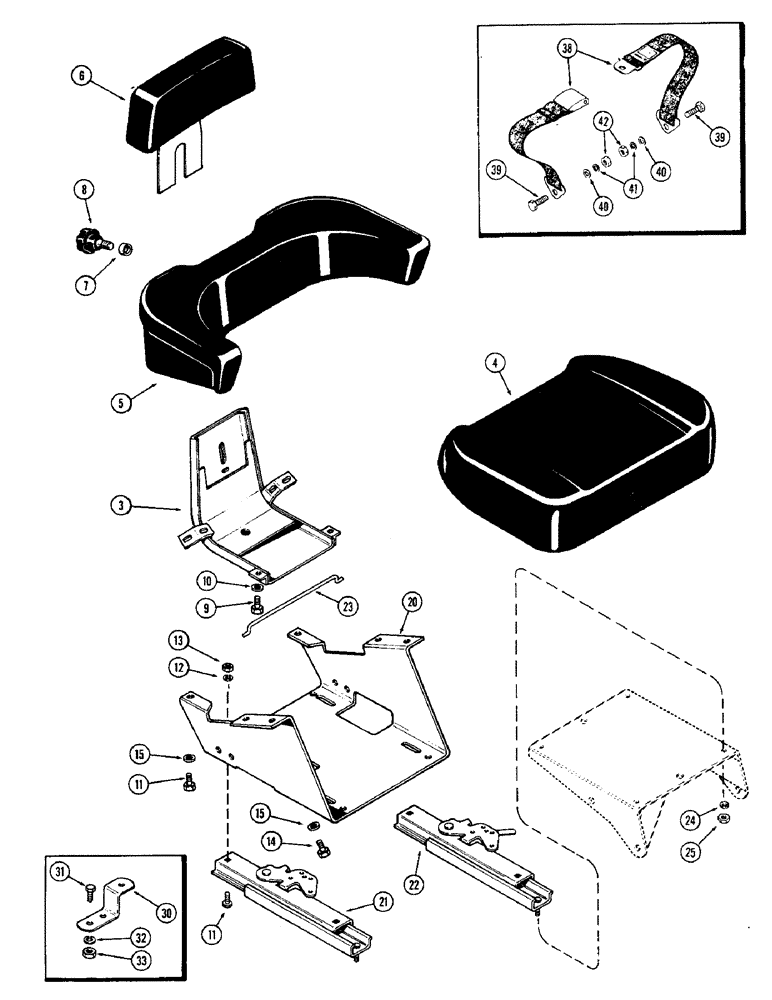

Запчасти Case IH 2470 (258) - SERIES 30 SEAT, 1ST USED TRACTOR SERIAL NO. 8762001 (09) - CHASSIS/ATTACHMENTS

A77114

SEAT

ASSY. - "Series 30" deluxe vinyl, Includes: Ref. 3 - 23

1шт.

A65092

SEAT

ASSY. - "Deluxe", Includes: Ref. 3 - 10

1шт.

3

A57405

SUPPORT

- seat frame

1шт.

4

A65093

CUSHION

- seat

1шт.

5

A42497

BACKREST

- seat, lower

1шт.

6

A34283

CUSHION

BACKREST - seat, upper

1шт.

7

A40600

SPACER

- backrest adjusting

1шт.

8

A40972

KNOB

- backrest adjusting

1шт.

9

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

10

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

15

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

10шт.

20

A76032

SUPPORT - mounting, seat angle adjuster

1шт.

21

A64818

ADJUSTER

- seat, R.H. (w/o handle)

1шт.

22

A64819

ADJUSTER

ASSY. - seat, L.H. (w/handle)

1шт.

23

A64822

ROD - seat lock

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

25

9635082

NUT,5/16" - 18, Gr 5

4шт.

30

A62177

BRACKET

- seat belt anchor, safety

2шт.

31

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Safety seat belt Hex, 7/16"-14 x 1", G5, Full Thd

4шт.

32

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt 7/16"

4шт.

33

129-104

NUT,7/16"-14, G5

Safety seat belt 7/16"-14, G5

4шт.

38

A66391

SAFETY BELT

SAFETY BELT (Replaced A60906)

1шт.

39

A61946

STEP BOLT

BOLT - shoulder, seat safety belt

2шт.

40

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16", safety seat belt

2шт.

41

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt 7/16"

2шт.

42

425-117

NUT,7/16"-20, G5

- (7/16" N.C. hex.), safety seat belt

2шт.
