Запчасти Case IH 2470 (256) - SEAT SUSPENSION (09) - CHASSIS/ATTACHMENTS

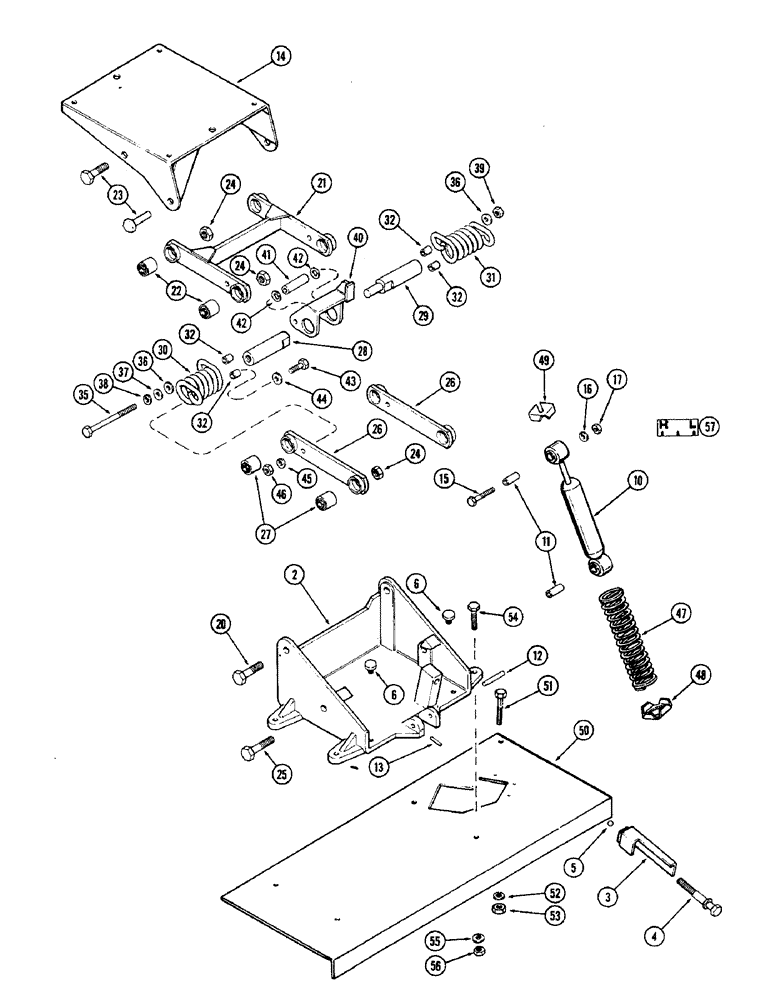

Схема запчастей Case IH 2470 - (256) - SEAT SUSPENSION (09) - CHASSIS/ATTACHMENTS
41
32
16
24
39
6
46
30
42
36
45
38
2
21
11
40
26
52
14
56
32
36
24
48
32
37
54
4
51
24
47
17
12
6
42
13
10
44
43
57
50
53
3
20
32
5
29
15
23
35
55
31
22
28
25
26
49
27

Артикул

Название

Примечание

Количество

A135608

SUSPENSION

ASSY. - seat (Replaces A62670), Includes: Ref. 1 - 49

1шт.

2

A135544

SUPPORT

- seat (Replaces A62671)

1шт.

3

A60675

BRACKET ASSY. - seat adjusting

1шт.

4

A60677

SCREW - seat adjusting

1шт.

5

211-12

BALL,7/16 Dia

- 7/16" dia. steel

1шт.

6

A60333

BUMPER - support arm

2шт.

10

A60342

SHOCK ABSORBER

ABSORBER - seat shock

1шт.

11

A60343

BUSHING

- Shock absorber

2шт.

12

A60344

PIN - shock absorber pivot

1шт.

13

138-64

LOCK PIN,1/8" x 1 3/8", Slotted

Pin, 1/8" x 1 3/8", Slotted

1шт.

14

A60345

PLATE ASSY. - seat mounting

1шт.

15

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

20

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

21

A61846

ARM

ASSY. - seat support, upper, Includes: Ref. 22

1шт.

22

A60330

BUSHING,15.95mm ID x 35.56mm OD x 30.48mm L

- Arm

4шт.

23

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

24

25-1010

NUT,5/8"-11, G5

6шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

26

A60325

ARM ASSY. - seat support, lower, Includes: Ref. 27

2шт.

27

A60330

BUSHING,15.95mm ID x 35.56mm OD x 30.48mm L

- Arm

2шт.

28

A60678

SPACER - seat support, R.H.

1шт.

29

A60679

SPACER

- seat support, L.H.

1шт.

30

A60684

SPRING

- torsion, R.H.

1шт.

31

A60685

SPRING

- torsion, L.H.

1шт.

32

A60335

BUSHING

- seat spring, bolt

4шт.

35

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- 3/8 x 4-1/2" N.C. hex.

1шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 1/8"

1шт.

37

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

40

A60680

BRACKET ASSY. - seat spring adjustment

1шт.

41

A60683

SPACER - seat bracket adjustment

1шт.

42

195-26

WASHER

WASHER - 7/16 x 7/8 x 3/32"

1шт.

43

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-3/4" N.C. hex.

2шт.

44

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

47

A135253

SPRING

- seat shock load assist

1шт.

48

A77228

RETAINER

- lower, seat assist spring

1шт.

49

A77227

RETAINER

- upper, seat assist spring

1шт.

50

A62673

SUPPORT

PLATE - seat support

1шт.

51

113-294

BOLT - 3/8 x 2-3/4" N.C. hex.

1шт.

52

92-6

LOCK WASHER,3/8"

1шт.

53

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

54

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

55

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

56

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

57

321-1335

DECAL

- seat adjustment indicator

1шт.

Выбрано товаров: 50
