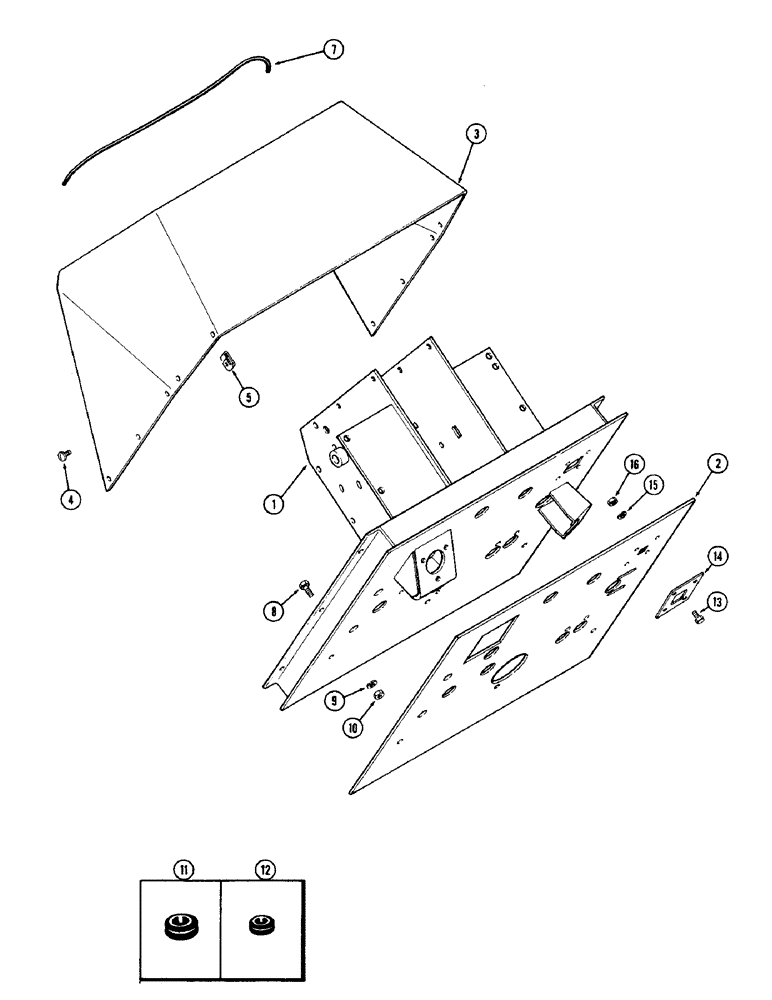

Запчасти Case IH 2470 (252) - COCKPIT (09) - CHASSIS/ATTACHMENTS

1

A75330

SUPPORT ASSY. - cockpit, Includes: Ref. 2

1шт.

2

A76201

PAD - cockpit

1шт.

To be attached with adhesive 345-22.

1шт.

3

A75389

COWL

ING - cockpit

1шт.

4

A75390

STUD

- cowling

10шт.

5

A36042

CLIP

RECEPTACLE - clip-on (Replaces L40219)

10шт.

7

A76234

ROPE

CORD - cockpit cowling

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

10шт.

9

92-6

LOCK WASHER,3/8"

10шт.

10

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

6шт.

11

A75993

GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut

- gauge tubes (In firewall)

1шт.

12

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- tach. cable (In firewall)

1шт.

13

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

14

A75391

ADAPTER - bulkhead connector

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

25-104

NUT,1/4"-20, G5

4шт.
