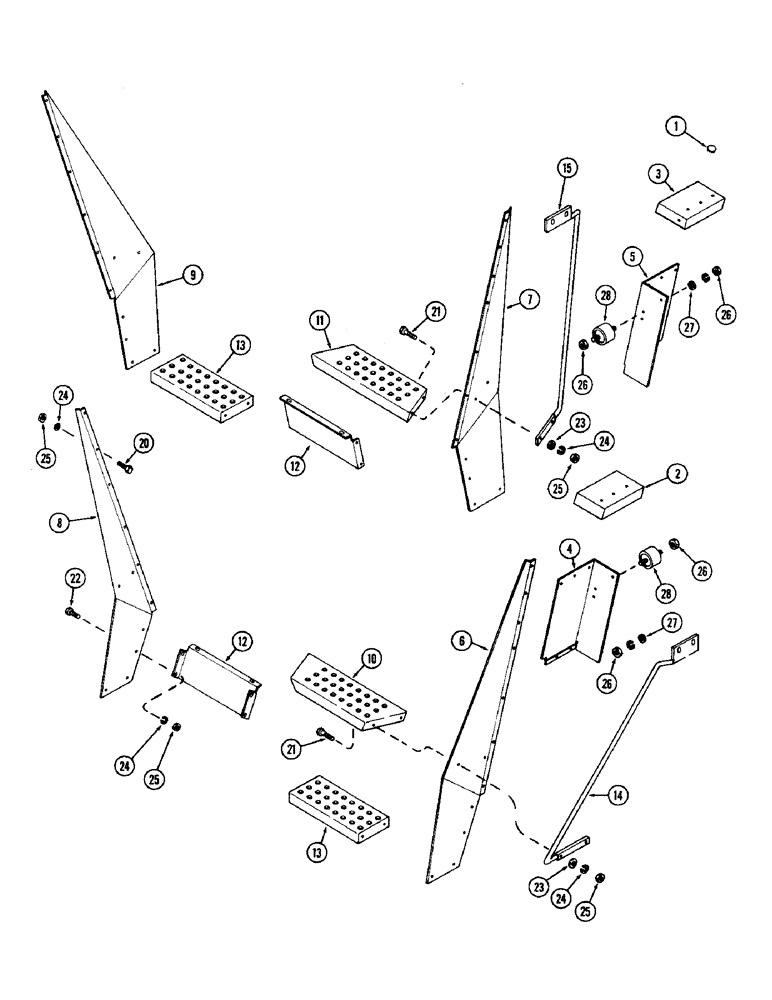

Запчасти Case IH 2470 (250) - STEP, GUARD AND HAND RAIL (09) - CHASSIS/ATTACHMENTS

1

205-23

PLUG,17/32"

- button

5шт.

2

A75554

CAP - front (R.H.)

1шт.

3

A75555

CAP - front (L.H.)

1шт.

4

A75552

GUARD

- front (R.H.)

1шт.

5

A75553

GUARD

- front (L.H.)

1шт.

6

A75556

BRACKET

- step mounting, front (R.H.)

1шт.

7

A75557

BRACKET

- step mounting, front (L.H.)

1шт.

8

A75566

BRACKET - step mounting, rear (R.H.)

1шт.

9

A75567

BRACKET - step mounting, rear (L.H.)

1шт.

10

A75564

STEP - upper (R.H.)

1шт.

11

A75565

STEP - upper (L.H.)

1шт.

12

A75562

STIFFENER - bracket, R.H. & L.H.

2шт.

13

A75563

STEP

- lower, R.H. & L.H.

2шт.

14

A75558

RAIL - hand (R.H.)

1шт.

15

A75559

RAIL - hand (L.H.)

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

54шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

22

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

23

195-104

WASHER,3/8"

- plain () 3/8"

8шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

66шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

66шт.

26

131-52

NUT,3/8"-16, GC

NUT - lock (3/8" - 16 N.C. Esna)

4шт.

27

195-525

WASHER,3/8", SAE

- (3/8")

2шт.

28

A75568

BOLT

- mounting, front, Serial Range: guard-cab

2шт.
