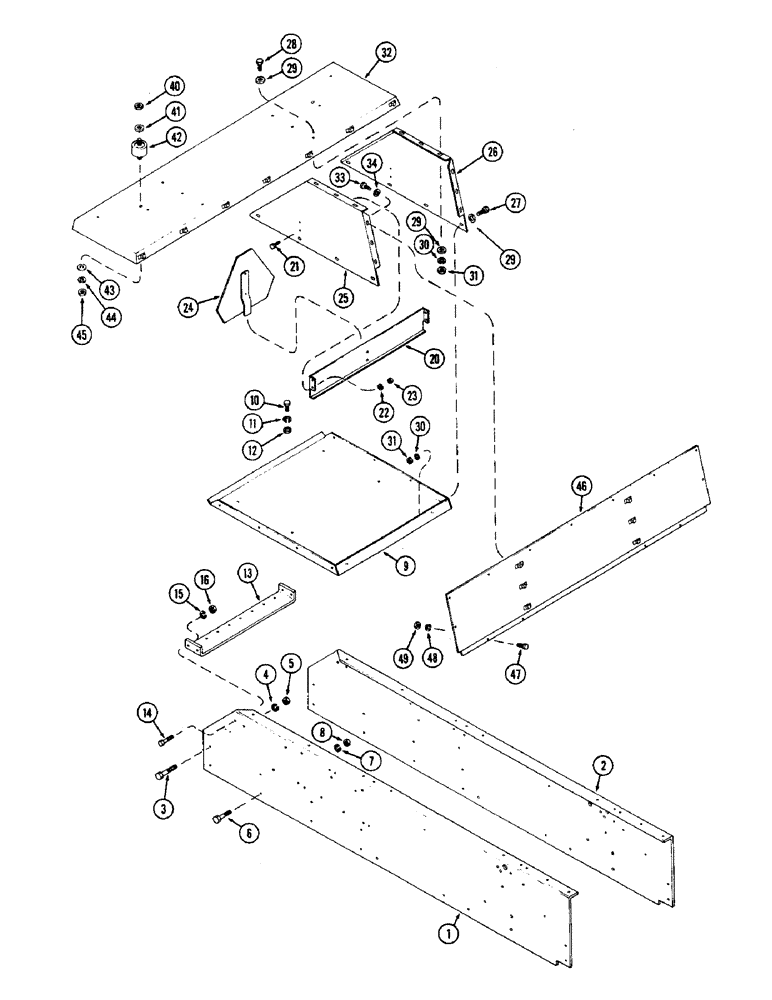

Запчасти Case IH 2470 (248) - PLATFORM AND SIDE PLATES (09) - CHASSIS/ATTACHMENTS

1

A76304

PLATE - side, R.H. (Replaced A75698)

1шт.

2

A76305

PLATE - side, L.H. (Replaced A75699)

1шт.

3

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- (5/8 x 2-1/4" N.C. hex.)

8шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

5

129-107

NUT,5/8"-11, G5

16шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Side plate to still Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

9

A75697

PLATFORM - rear

1шт.

10

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

Platform to side plates Hex, 1/2"-13 x 3/4", G5, Full Thd

6шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

12

195-533

WASHER,1/2", SAE

- (17/32 x 1-1/16 x 1/8")

6шт.

13

A75700

SUPPORT - side plate, hyd. couplings

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

20

A76023

BRACKET - platform, rear

1шт.

21

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

4шт.

24

A59450

WARNING SIGN

EMBLEM - S.M.V.

1шт.

25

A76026

SHEET

- platform side, R.H.

1шт.

26

A76027

SHEET

- platform side, L.H.

1шт.

27

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

8шт.

28

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

29

195-525

WASHER,3/8", SAE

- plain (3/8")

20шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.

32

A76164

CAP - guard

1шт.

33

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

11шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

40

131-94

LOCK NUT,3/8"-16, GB

NUT - lock (3/8" N.C.)

2шт.

41

195-525

WASHER,3/8", SAE

- plain (3/8")

4шт.

42

A75568

BOLT

- mounting, rear, Serial Range: cap-cab

2шт.

43

195-2036

WASHER,13/32" x 2" x .109"

- (13/32" I.D. x 2" O.D.)

2шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

46

A76163

GUARD - platform, rear

1шт.

47

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
