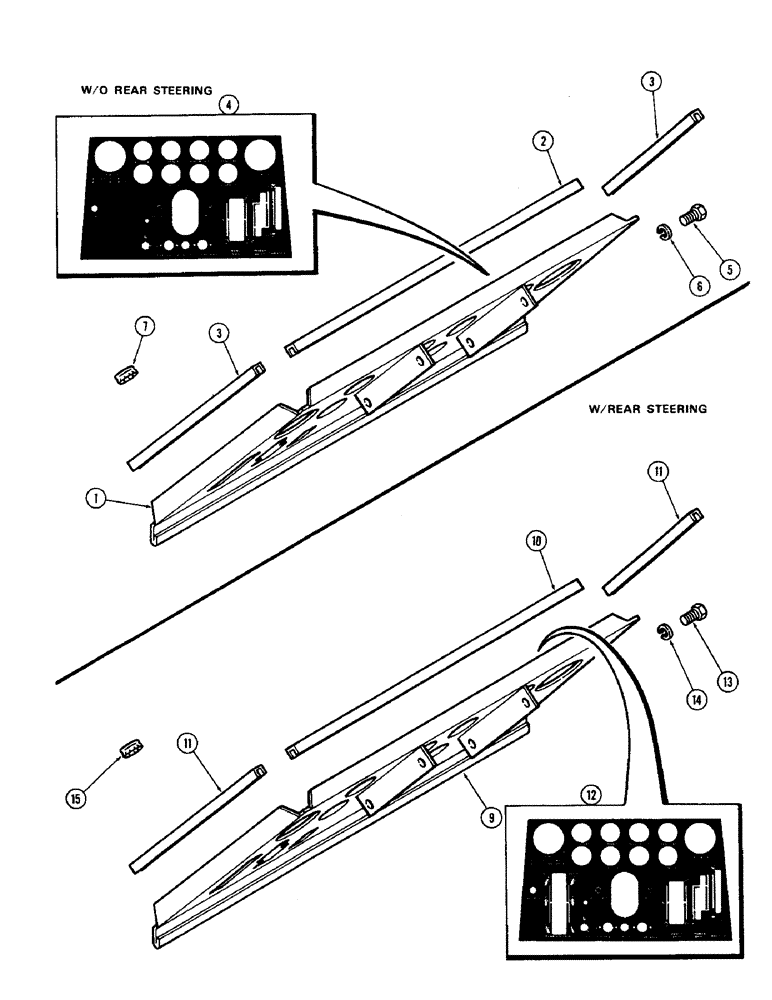

Запчасти Case IH 2470 (246) - INSTRUMENT PANEL, WITHOUT REAR STEER (09) - CHASSIS/ATTACHMENTS

1

A75853

PANEL ASSY. - instrument (w/o rear steering), Includes: Ref. 2 and 3

1шт.

2

A75854

CHANNEL

- top

1шт.

To be attached with adhesive 345-22.

1шт.

3

A75855

CHANNEL

- side

2шт.

To be attached with adhesive 345-22.

1шт.

4

321-2155

DECAL - instrument panel, w/o rear steering

1шт.

5

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - (3/8 x 1/2" N.C. hex.)

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

205-29

PLUG - button (11/16") (Hand brake warning lamp)

1шт.

9

A75852

PANEL ASSY. - instrument (w/rear steering), Includes: Ref. 10 and 11

1шт.

10

A75854

CHANNEL

- top, w/ rear steer

1шт.

To be attached with adhesive 345-22.

1шт.

11

A75855

CHANNEL

- side, w/ rear steer

2шт.

To be attached with adhesive 345-22.

1шт.

12

321-2156

DECAL - instrument panel, w/rear steering

1шт.

13

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - (3/8 x 1/2" N.C. hex.), w/ rear steer

4шт.

14

92-6

LOCK WASHER,3/8"

w/ rear steer 3/8"

4шт.

15

205-29

PLUG - button (11/16") (Hand brake warning lamp), w/ rear steer

1шт.
