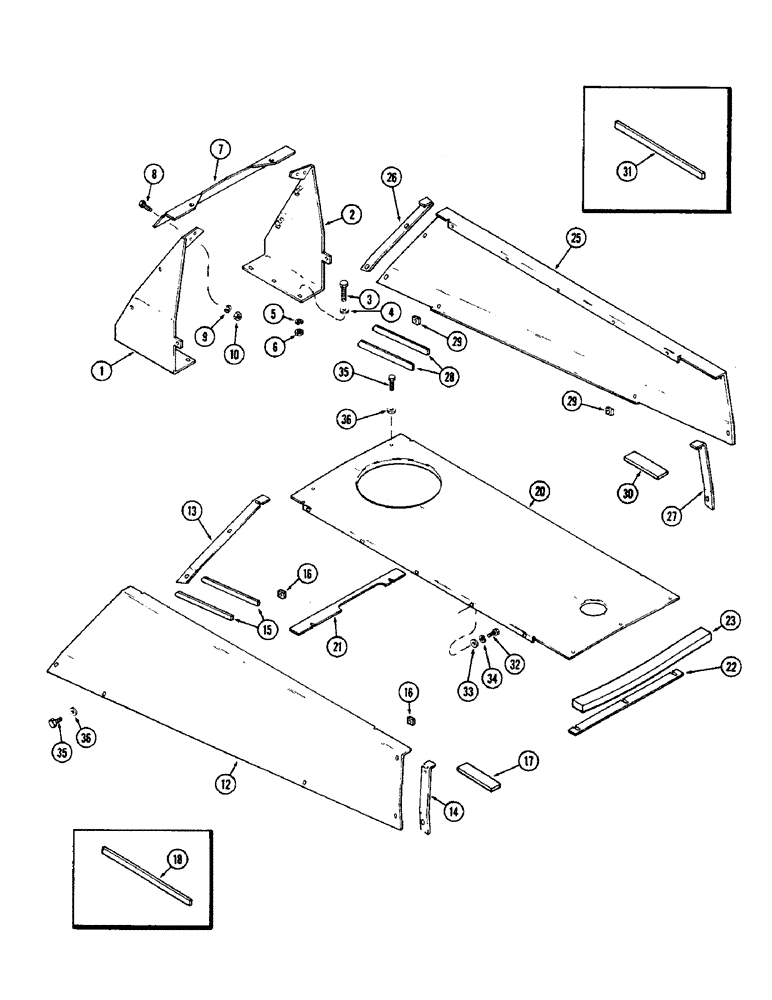

Запчасти Case IH 2470 (244) - HOODS, SIDES AND TOP (09) - CHASSIS/ATTACHMENTS

1

A75776

SUPPORT - R.H.

1шт.

2

A75777

SUPPORT - L.H.

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

4

195-106

WASHER,1/2"

- plain

6шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

7

A75781

TIE - rear hood

1шт.

8

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

12

NSS

NOT SOLD SEPARAT

HOOD ASSY. - side (R.H.), Includes: Ref. 13 - 18

1шт.

A76140

HOOD - side (R.H.)

1шт.

13

A76145

PAD

- side hood, rear

1шт.

To be attached with adhesive 345-22.

1шт.

14

A76144

PAD

- side hood, front

1шт.

To be attached with adhesive 345-22.

1шт.

15

A76146

PAD

- side hood

2шт.

To be attached with adhesive 345-22.

1шт.

16

A76068

PAD

- side hood

2шт.

To be attached with adhesive 345-22.

1шт.

17

A76448

SEAL

- side hood (Used w/A76446 hood)

1шт.

To be attached with adhesive 345-22.

1шт.

18

A76147

SEAL - side hood (Used w/A76138 hood)

1шт.

To be attached with adhesive 345-22.

1шт.

20

NSS

NOT SOLD SEPARAT

HOOD ASSY. - top, Includes: Ref. 21 - 23

1шт.

A76149

HOOD

- top

1шт.

21

A76150

PAD

- top hood, rear

1шт.

To be attached with adhesive 345-22.

1шт.

22

A76151

PAD

- top hood, front

1шт.

To be attached with adhesive 345-22.

1шт.

23

A76450

SEAL - hood, top (Used w/A76449 hood)

1шт.

To be attached with adhesive 345-22.

1шт.

25

NSS

NOT SOLD SEPARAT

HOOD ASSY. - side (L.H.), Includes: Ref. 26 - 31

1шт.

A76141

HOOD - side (L.H.)

1шт.

26

A76145

PAD

- side hood, rear

1шт.

To be attached with adhesive 345-22.

1шт.

27

A76144

PAD

- side hood, front

1шт.

To be attached with adhesive 345-22.

1шт.

28

A76146

PAD

- side hood

2шт.

To be attached with adhesive 345-22.

1шт.

29

A76068

PAD

- side hood

2шт.

To be attached with adhesive 345-22.

1шт.

30

A76448

SEAL

- side hood (Used w/A76447 hood)

1шт.

To be attached with adhesive 345-22.

1шт.

31

A76147

SEAL - side hood (Used w/A76139 hood)

1шт.

To be attached with adhesive 345-22.

1шт.

32

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

10шт.

33

195-104

WASHER,3/8"

- plain () 3/8"

10шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

35

113-288

BOLT - (3/8 x 7/8" N.C. hex., w/nylon insert)

17шт.

36

195-525

WASHER,3/8", SAE

- plain (13/32")

1шт.
