Запчасти Case IH 2470 (242) - RADIATOR GRILLE, RETAINER AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

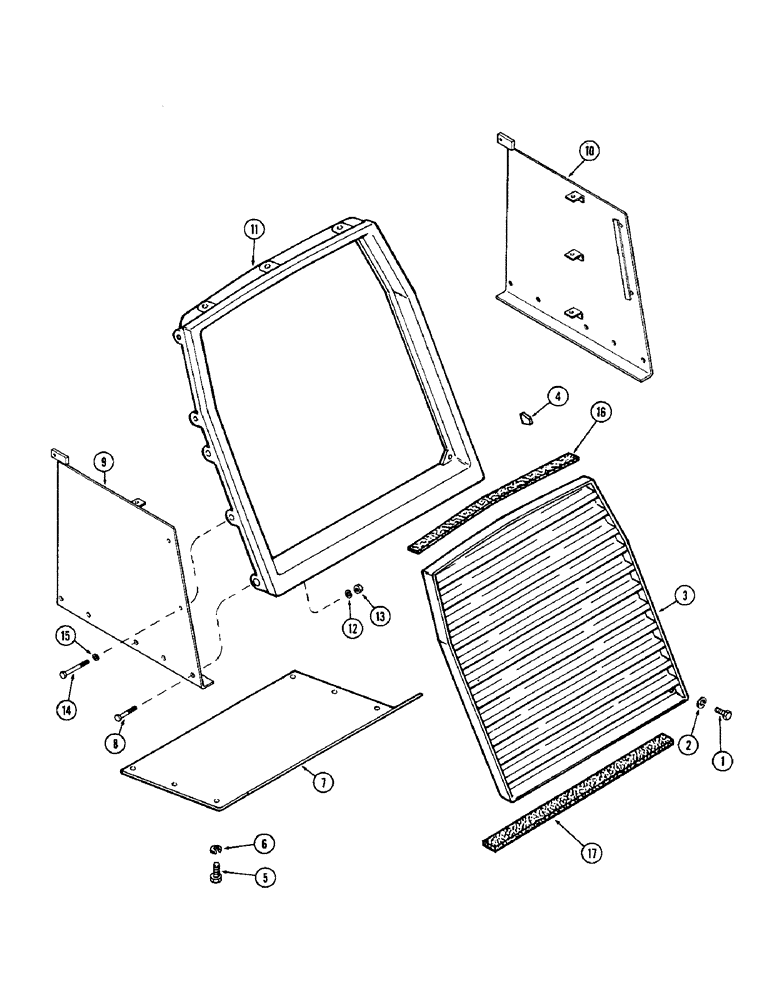

Схема запчастей Case IH 2470 - (242) - RADIATOR GRILLE, RETAINER AND SUPPORTS (09) - CHASSIS/ATTACHMENTS
1
6
17
12
3
14
16
7
5
11
15
2
8
13
4
10
9

Артикул

Название

Примечание

Количество

1

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

A77061

GRILLE

- radiator (Replaces A75541)

1шт.

4

A75547

FOAM - grille screen

22шт.

To be attached with adhesive 345-22.

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

7

A75921

PLATE - front frame enclosure

1шт.

8

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- (5/8 x 3-3/4" N.C. hex.)

2шт.

9

A75508

SUPPORT - radiator, R.H.

1шт.

10

A75509

SUPPORT - radiator, L.H.

1шт.

11

A77060

RETAINER

- grille (Replaces A75538)

2шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

129-107

NUT,5/8"-11, G5

2шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

A76296

SEAL

- upper grille

1шт.

17

A76297

SEAL

- lower grille

1шт.

Выбрано товаров: 18
