Запчасти Case IH 2470 (240) - CHASSIS, SILLS, ENGINE AND TRANSMISSION SUPPORTS (09) - CHASSIS/ATTACHMENTS

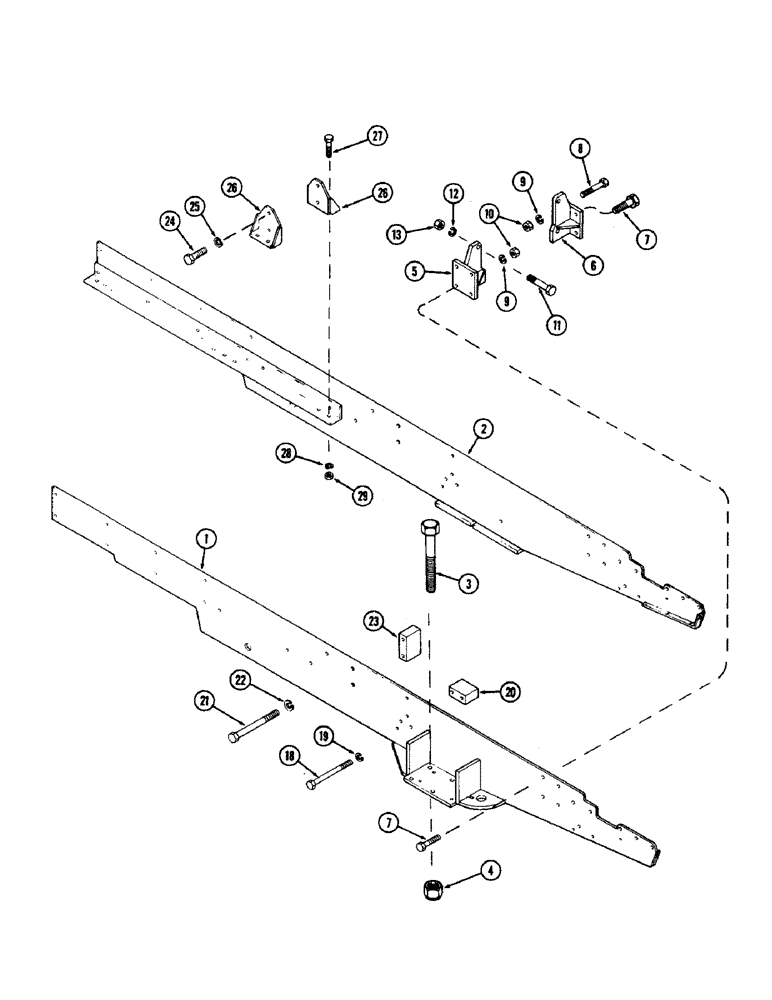

Схема запчастей Case IH 2470 - (240) - CHASSIS, SILLS, ENGINE AND TRANSMISSION SUPPORTS (09) - CHASSIS/ATTACHMENTS
27
8
29
7
6
4
9
26
22
7
10
9
13
24
12
5
21
28
3
23
26
20
2
19
18
11
25
1

Артикул

Название

Примечание

Количество

1

A76300

SILL - R.H. (Replaced A75686)

1шт.

2

A76301

SILL - L.H. (Replaced A75687)

1шт.

3

28-14120

BOLT,Hex, 7/8" - 14 x 7-1/2", Gr 8

- (7/8 x 7-1/2" N.F. hex.)

8шт.

4

131-187

LOCK NUT,7/8"-14, GB

- (7/8" - 14 N.F.)

8шт.

5

A75676

SUPPORT - engine mounting (R.H.)

1шт.

6

A75677

SUPPORT - engine mounting (L.H.)

1шт.

7

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- (5/8 x 2-1/4" N.C. hex.)

5шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

8

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

129-107

NUT,5/8"-11, G5

8шт.

11

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- (3/4 x 2-3/4" N.C. hex.)

4шт.

12

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

13

129-108

NUT,3/4"-10, G5

4шт.

18

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

19

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

A75685

SPACER

- front, trans.

2шт.

21

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

4шт.

22

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

23

A75684

SPACER

- center, trans.

2шт.

24

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

25

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

26

A75681

BRACKET - trans. rear mount

2шт.

27

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

28

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

29

129-107

NUT,5/8"-11, G5

4шт.

Выбрано товаров: 26
