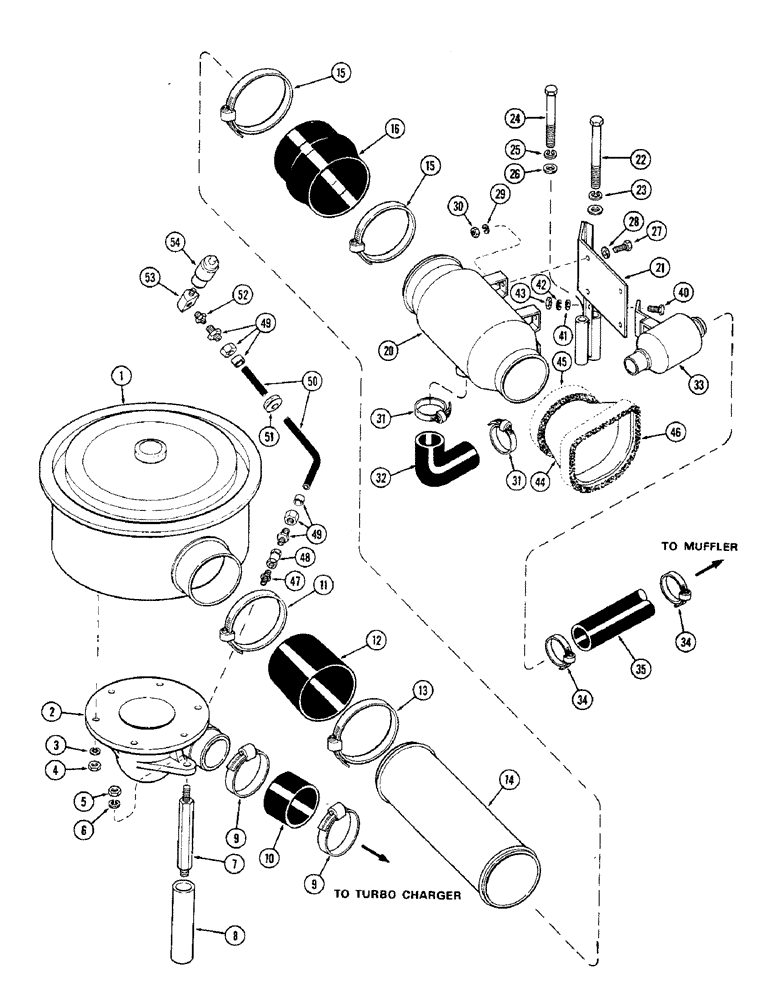

Запчасти Case IH 2470 (016) - AIR INDUCTION SYSTEM, 504BDT DIESEL ENGINE (02) - ENGINE

1

A75796

CLEANER ASSY. - air (See figure 18)

1шт.

2

A75797

ELBOW - turbo-charger

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

A75799

JACK SCREW - air cleaner bracket

2шт.

8

A75800

SPACER - air cleaner bracket

2шт.

9

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-13/16 to 3-3/4")

2шт.

10

A75798

HOSE

- elbow to turbo-charger (3 x 3-3/8 x 2-3/8")

1шт.

11

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - hose (5-1/8 to 6")

1шт.

12

A76219

HOSE

- air cleaner (4-7/8 small I.D. x 5-21/32" large I.D. x 5" length)

1шт.

13

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - hose (5-3/8 to 6-1/4")

1шт.

14

A75802

TUBE - air cleaner

1шт.

15

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - hose (5-3/8 to 6-1/4")

2шт.

16

A75805

HOSE

- connecting, air cleaner tube

1шт.

20

A75804

PRE-CLEANER ASSY.

1шт.

21

A75806

SUPPORT - pre-cleaner

1шт.

22

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

24

113-346

BOLT,Hex, 7/16" - 14 x 5", Gr 5

- (7/16 x 5" N.C. hex.)

1шт.

25

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

26

195-529

WASHER,7/16", SAE

- (15/32 x 59/64 x 1/16")

1шт.

27

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

28

195-104

WASHER,3/8"

- (7/16 x 1 x 3/32")

4шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

31

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

32

A76113

HOSE - pre-cleaner to check valve

1шт.

33

A76042

VALVE - check, aspirator

1шт.

34

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

35

A76044

HOSE

- aspirator (1-1/2 x 2-1/8 x 16-1/2")

1шт.

40

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- (1/4 x 7/8" N.C. hex.)

2шт.

41

195-102

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

4шт.

42

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

43

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

44

A76045

FUNNEL ASSY., Includes: Ref. 45 and 46

1шт.

45

A76047

SEAL - air inlet funnel

1шт.

To be attached with adhesive 345-22.

1шт.

46

A76048

SEAL - air inlet funnel

1шт.

To be attached with adhesive 345-22.

1шт.

47

D36264

FITTING

- air restriction indicator

1шт.

48

217-95

COUPLING,1/8"-27, Brass

1шт.

49

222-5100

CONNECTOR, ELEC,17/32"-24 x 1/8" NPT

COUPLING ASSY. - male (3/8" tube O.D. x 1/8" P.T.)

2шт.

50

A75811

TUBE

HOSE - air cleaner indicator (23/64" O.D. x 17/64" I.D. x 34" length)

1шт.

51

A75993

GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut

- indicator hose (In firewall)

1шт.

52

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing (Brass) 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

53

L31481

FITTING

ELBOW - air cleaner indicator

1шт.

54

A59568

INDICATOR

- air restriction

1шт.
