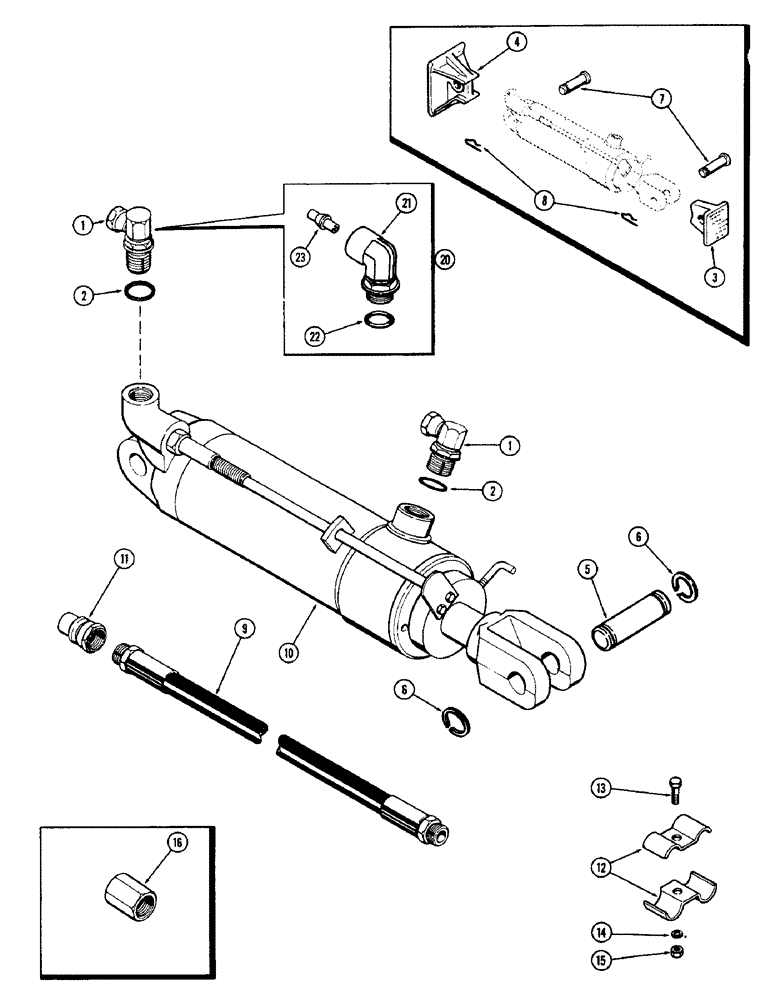

Запчасти Case IH 2470 (232) - 3 POINT HITCH, HYDRAULIC CYLINDER ATTACHING PARTS (09) - CHASSIS/ATTACHMENTS

1

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - 90 degree adapter, Includes: Ref. 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

3

A9163

PAD - hydraulic cylinder

1шт.

4

A57188

BASE

- hydraulic cylinder

1шт.

5

A76281

PIN

- cyl. yoke, lower (1st used trac. ser. no. 8712168)

2шт.

6

A12667

RING

- retaining (1st used trac. ser. no. 8712168)

4шт.

7

A27347

PIN

- cyl. yoke, lower (Used prior to trac. ser. no. 8712168)

2шт.

8

A29054

HAIR PIN COTTER

- internal hair (Used prior to trac. ser. no. 8712168)

2шт.

9

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - hydraulic, 31-5/8" long

1шт.

9

A20816

HOSE

- hydraulic, 106" long

1шт.

9

A20817

HOSE

- hydraulic, 118" long

1шт.

10

G33769

CYLINDER

ASSY. - portable hydraulic (See fg. 236)

1шт.

11

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away, male half (See figure 216)

1шт.

12

A27440

CLAMP

- hose

2шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

16

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- (7/8" - 18 female to 1/2" P.T. female), hydraulic hose

1шт.

20

A65953

HYDRAULIC VALVE

KIT - cylinder return flow regulator, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

ELBOW ASSY. - 90 degrees (Order A65953), cylinder return flow regulator kit, Includes: Ref. 22

1шт.

22

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - (1-3/64 x 1-9/32 x 7/64"), cylinder return flow regulator kit

1шт.

23

A57369

SPOOL

POPPET - check, cylinder return flow regulator kit

1шт.
