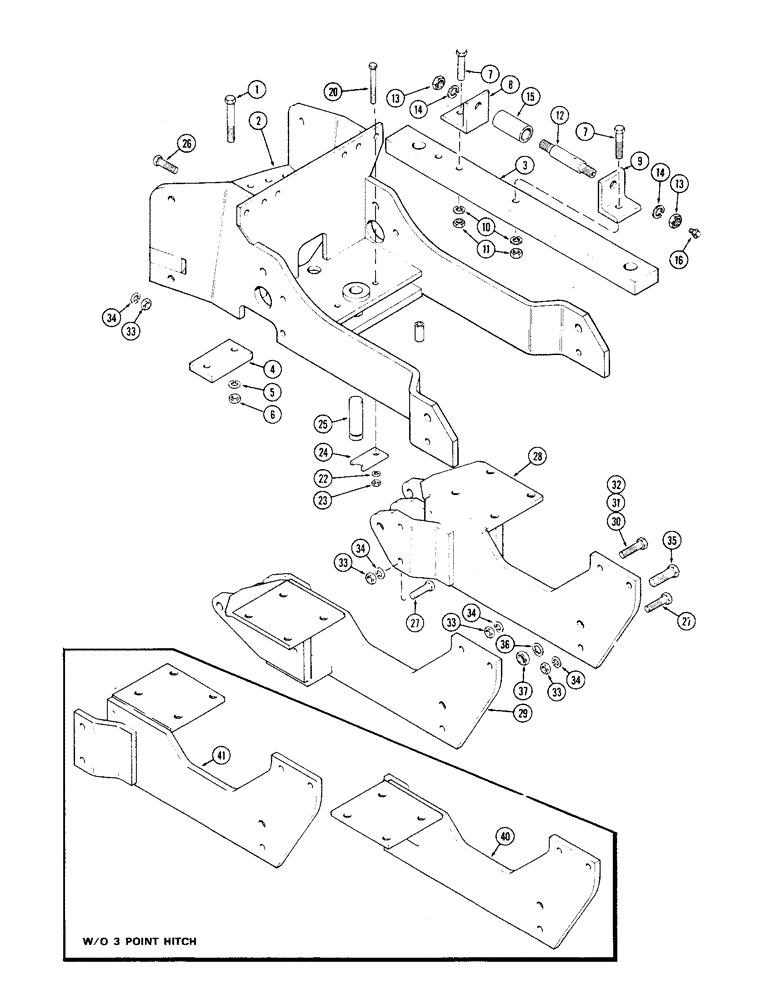

Запчасти Case IH 2470 (226) - 3 POINT HITCH, DRAWBAR & SUPPORT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
113-725
BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5
- (3/4 x 5-1/2" N.C. hex.)
2шт.
2
A135060
SUPPORT
- drawbar (Replaces A75460)
1шт.
3
A75457
DRAWBAR, SWINGING
DRAWBAR - straight
1шт.
4
T38563
PLATE
- fixed drawbar
1шт.
5
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
6
129-108
NUT,3/4"-10, G5
2шт.
8
A75458
BRACKET
ANGLE - roller mounting, rear
1шт.
9
T38568
BRACKET
ANGLE - roller mounting, front
1шт.
10
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
11
129-108
NUT,3/4"-10, G5
2шт.
12
T38572
PIN
- roller, drawbar
1шт.
13
129-110
NUT,1"-8, G5
2шт.
14
192-31
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
15
R14896
BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L
- Track Master
1шт.
16
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
20
113-411
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
2шт.
21
A75459
BUSHING
SPACER - drawbar
2шт.
22
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
23
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
24
T38570
LOCK
- strap
1шт.
25
T38569
PIN,38.1mm OD x 127mm L
- drawbar
1шт.
26
113-712
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
6шт.
27
113-705
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
- (3/4 x 2-1/2" N.C. hex.)
6шт.
28
A75425
BRACE
- drawbar (L.H.)
1шт.
29
A75424
BRACE
- drawbar (R.H.)
1шт.
30
113-730
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
- (3/4 x 2-3/4" N.C. hex.) (Used w/o P.T.O.)
4шт.
31
113-730
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
- (3/4 x 2-3/4" hex. hd.) (Used w/P.T.O.)
2шт.
33
129-108
NUT,3/4"-10, G5
16шт.
34
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
16шт.
35
113-917
BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd
2шт.
36
192-31
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
37
129-110
NUT,1"-8, G5
2шт.
40
A75470
BRACE
- drawbar (R.H.), used w/o 3-point hitch
1шт.
41
A75471
BRACKET
BRACE - drawbar (L.H.), used w/o 30point hitch
1шт.
Выбрано товаров: 36
