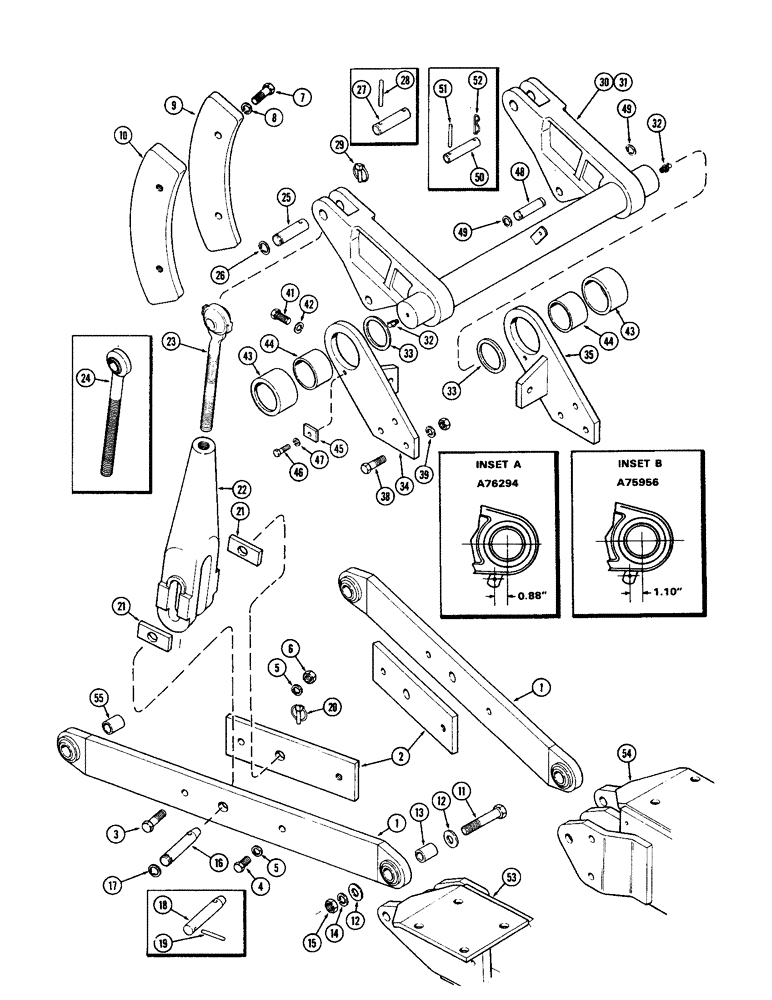

Запчасти Case IH 2470 (222) - 3 POINT HITCH, DRAFT ARM, LIFT ARM AND ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

1

A75392

ARM

- draft

2шт.

2

A75473

STRAP

STIFFENER - draft arm

2шт.

3

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- (3/4 x 2-3/4" N.C. hex.)

2шт.

4

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- (3/4 x 2-1/2" N.C. hex.)

4шт.

8

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

A75984

BUSHING

SPACER - sway block

2шт.

10

A75394

BLOCK

- sway

2шт.

11

114-900

BOLT,Hex, 1" - 14 x 5", Gr 5

- (1 x 5" N.F. hex.)

2шт.

12

A30052

WASHER

- ball, draft arm pivot

4шт.

13

T38561

BUSHING

- draft arm

2шт.

14

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

15

131-188

LOCK NUT,1"-14, GB

NUT - (1" N.F. hex.)

2шт.

16

A76286

PIN,31.6mm OD x 193.04mm L

- clevis, lift arm, lower (1st used trac. ser. no. 8712322)

2шт.

17

A76306

RING, SNAP

RING - snap (1st used trac. ser. no. 8712322)

2шт.

18

A75960

PIN

ASSY. - lift arm, lower (Used prior to trac. ser. no. 8712322), Includes: Ref. 19

2шт.

19

135-817

GROOVED PIN,3/8" x 3 1/4", Type E

Pin, Grooved, - center groove 3/8" x 3 1/4", Type E

1шт.

20

A64204

PIN

- Klik

2шт.

21

A63515

PLATE

- lower pin stop

4шт.

22

A75969

LINK

- clevis

2шт.

23

A76320

ROD

- lift link (1st used trac. ser. no. 8712498)

2шт.

24

A75416

ROD

- lift link (Used prior to trac. ser. no. 8712498)

2шт.

25

A76284

PIN

- lift arm, upper (1st used trac. ser. no. 8712322)

2шт.

26

A76306

RING, SNAP

RING - snap (1st used trac. ser. no. 8712322)

2шт.

27

A75962

PIN

ASSY. - lift arm, upper (Used prior to trac. ser. no. 8712322), Includes: Ref. 28

2шт.

28

135-817

GROOVED PIN,3/8" x 3 1/4", Type E

Pin, Grooved, - center groove 3/8" x 3 1/4", Type E

1шт.

29

A30338

PIN

- Klik

2шт.

30

A76294

ROCKSHAFT

- (1st used trac. S/N 8712497) (See inset A)

1шт.

31

A75956

ROCKSHAFT

- (Used prior to trac. S/N 8712497) (See inset B)

1шт.

32

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube (45 degrees)

2шт.

33

A32804

WASHER

- (4-1/4 x 3-9/32 x 11 gauge)

1шт.

34

A75396

SUPPORT

- bearing (R.H.)

1шт.

35

A75397

SUPPORT

- bearing (L.H.)

1шт.

38

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- (3/4 x 2-1/2" N.C. hex.)

6шт.

39

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

40

129-108

NUT,3/4"-10, G5

6шт.

41

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

42

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

43

A75399

HOUSING

ASSY. - bearing, Includes: Ref. 44

2шт.

44

A75401

BUSHING

- 3-point hitch

1шт.

45

A75402

KEY

- retaining

2шт.

46

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

48

A76282

PIN

- cyl., upper (1st used trac. ser. no. 8712168)

2шт.

49

A12667

RING

- retaining (1st used trac. ser. no. 8712168)

4шт.

50

A75958

PIN

ASSY. - cyl., upper (Used prior to trac. ser. no. 8712168), Includes: Ref. 51

2шт.

51

135-785

PIN - center groove

1шт.

52

A30338

PIN

- Klik (Used prior to trac. ser. no. 8712168)

2шт.

53

A75424

BRACE

- drawbar (R.H.)

1шт.

54

A75425

BRACE

- drawbar (L.H.)

1шт.

55

L10463

BUSHING

- category #2, lower hitch pin

2шт.
